Video Camera Connector Pinouts
A collection of various reference circuits.
Panasonic Power Supply

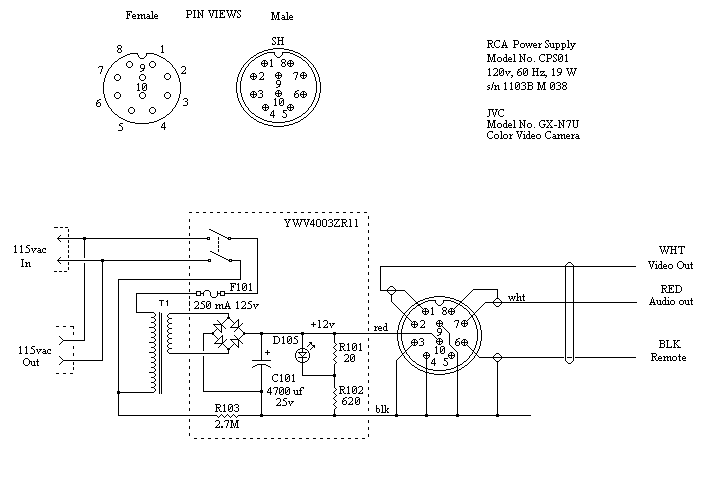

RCA Power Supply

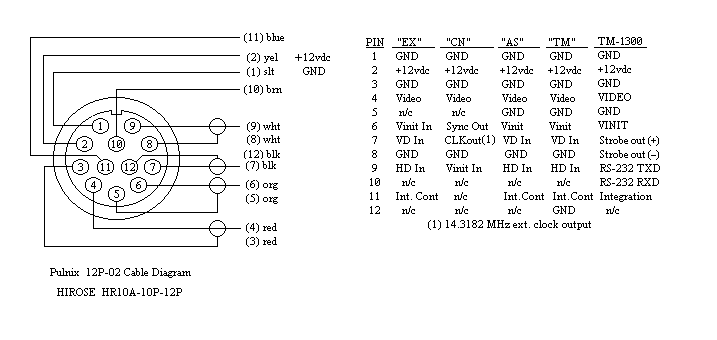

Pulnix Cable/Plug Pinouts
RCA Color Camera Cable Pinout

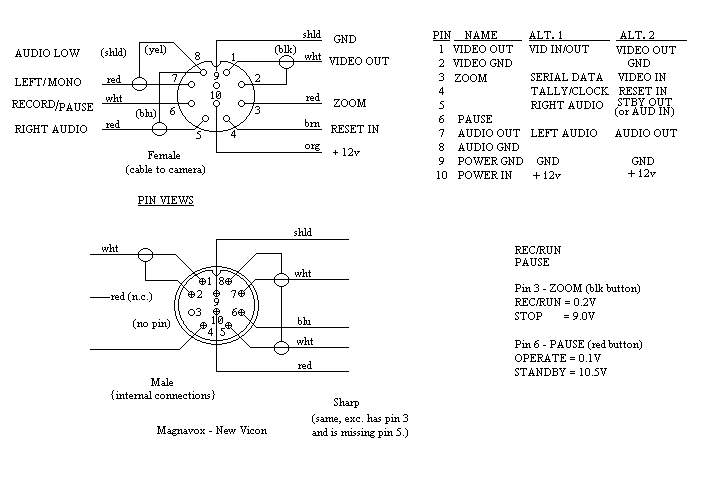

New Vicon Pinout
Safety Cycle II Cable

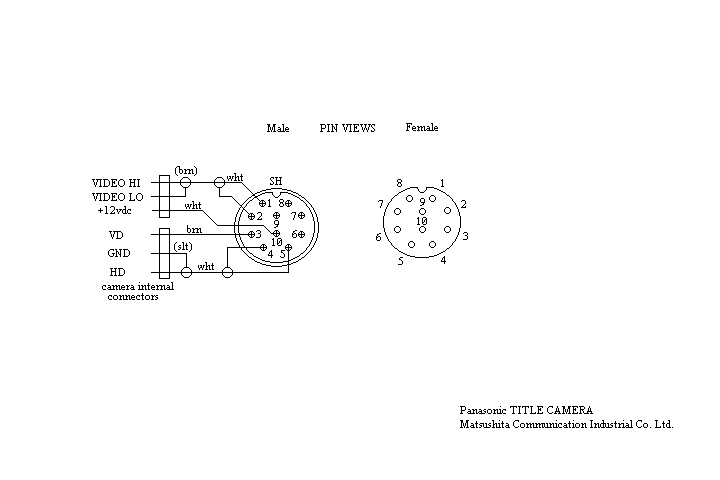

Panasonic Title Cam Wiring

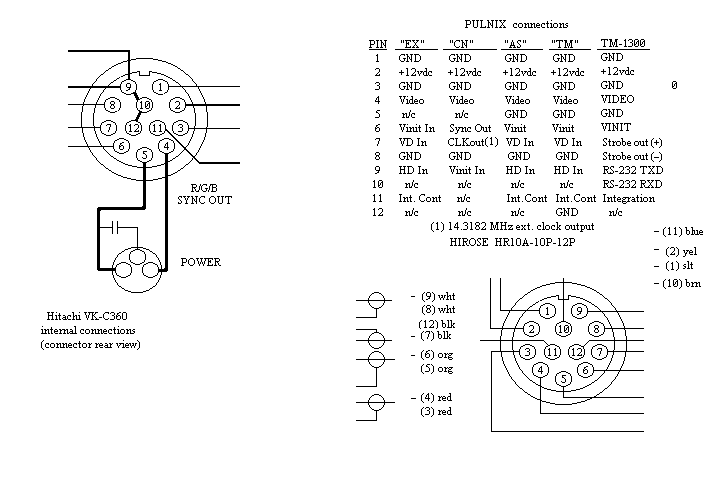

Hitachi VK-C360 Connector
5,8,10,and 12-pin Camera Connectors

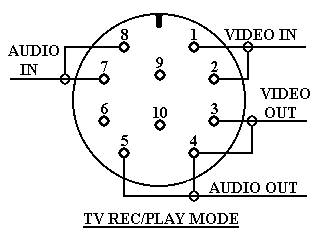

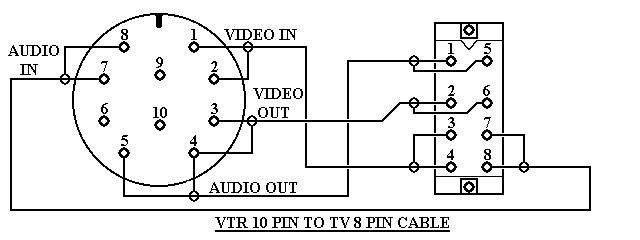

VTR 10-pin to TV 8-pin Cable
Akai VT-100 Camera Jack
