3-phase Converter Drawings

3-phase Converter Drawings Index

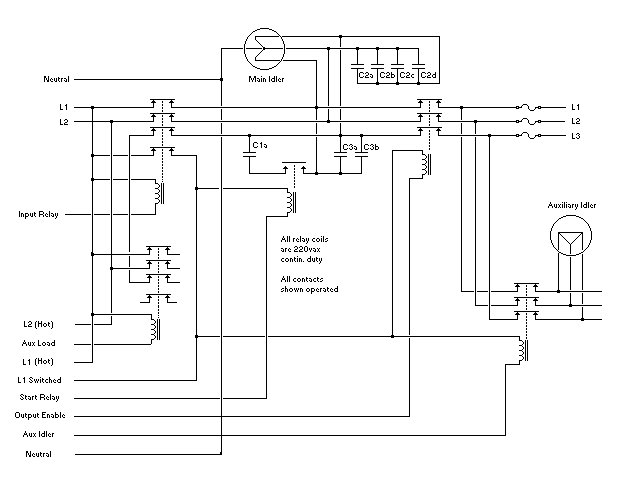

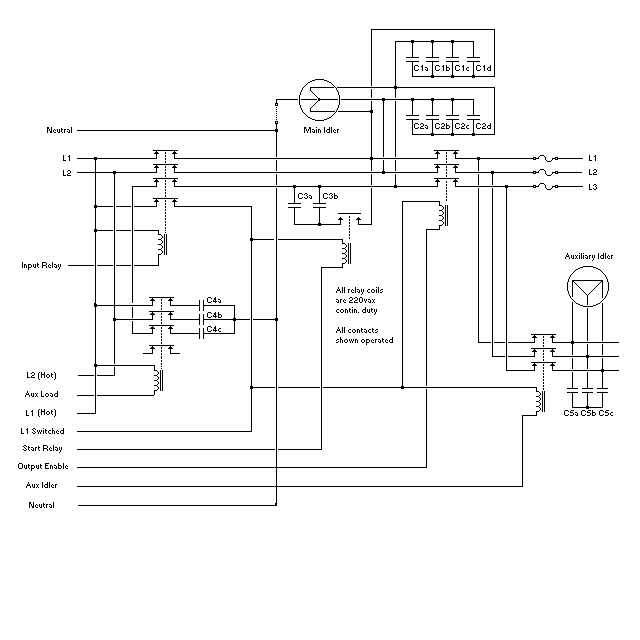

Dual Converter R-T5


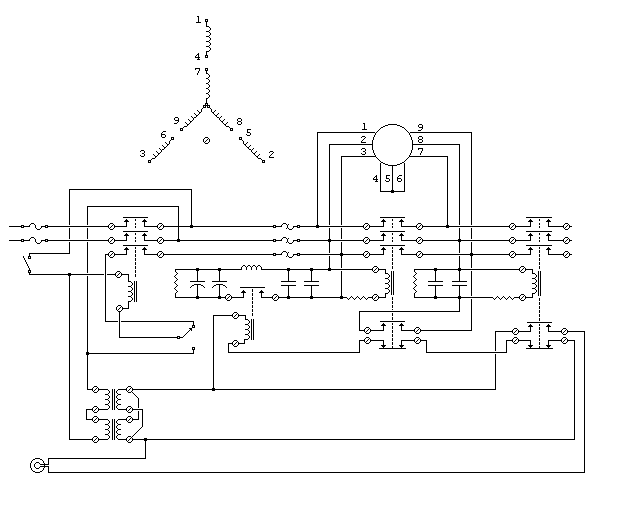

Dual Converter S-R9

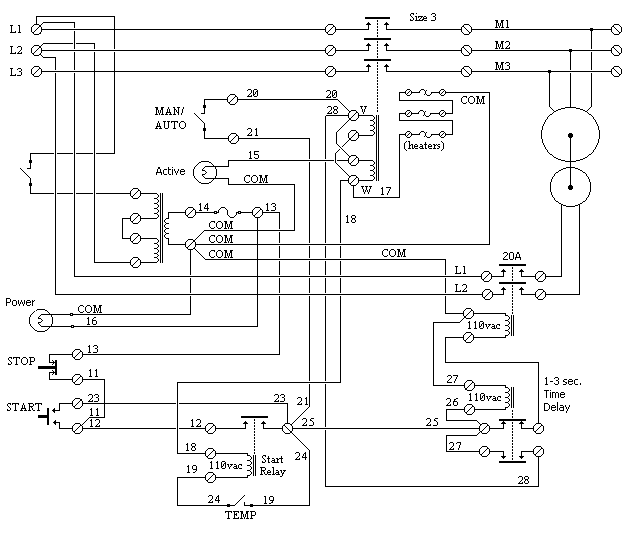

3 Phase Converter with Pony Motor


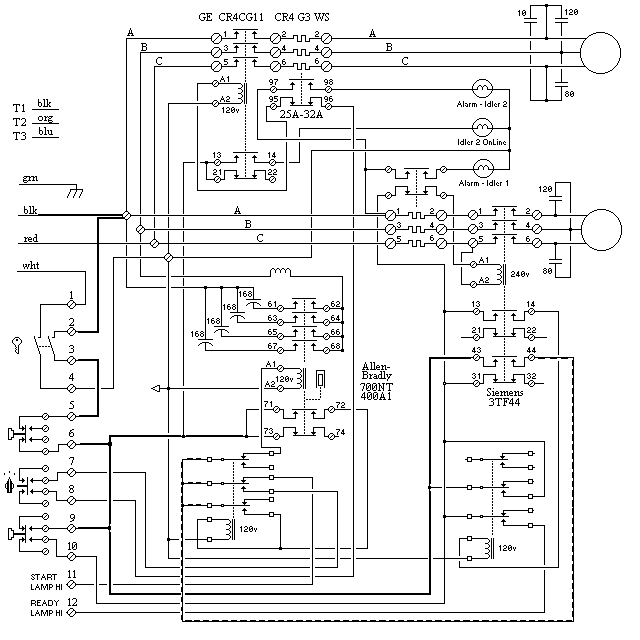

Dual Converter A-13


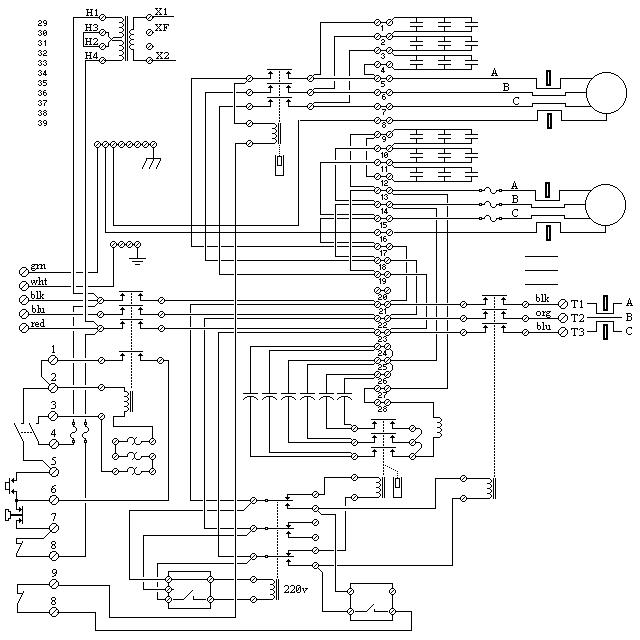

Dual Converter A-14


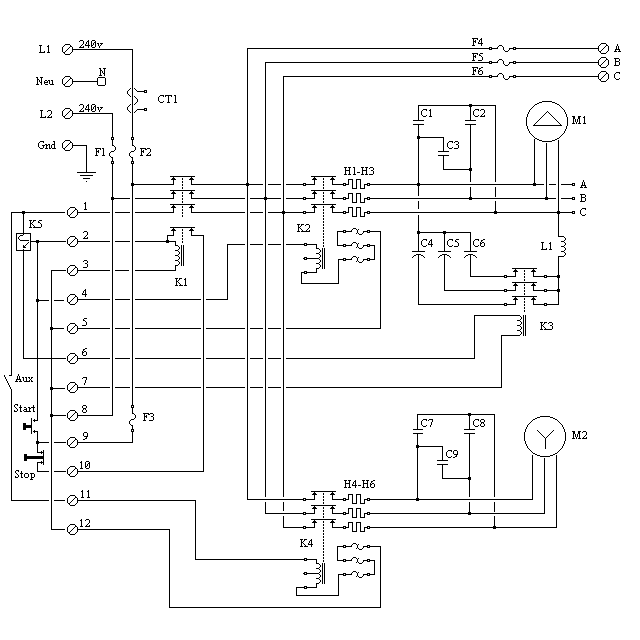

Dual Converter A-15


Dual Converter W-05


Dual Converter B-15 Door


Dual Converter B-15 Schematic


Dual Converter B-15 Capacitor Cage

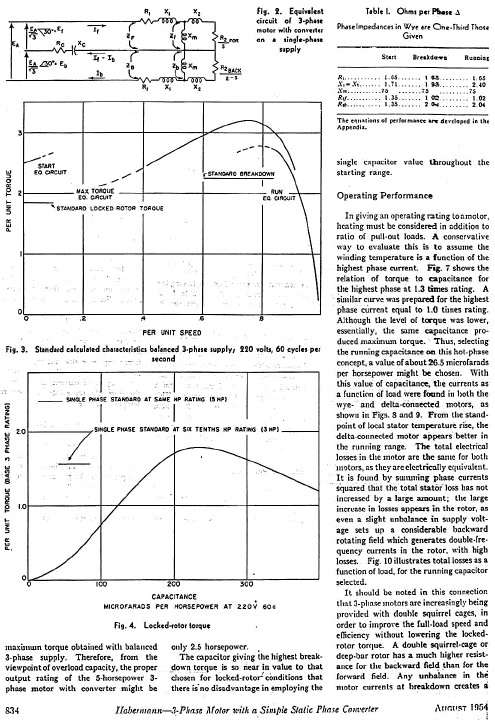

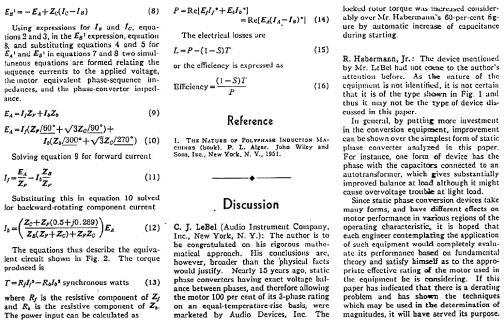

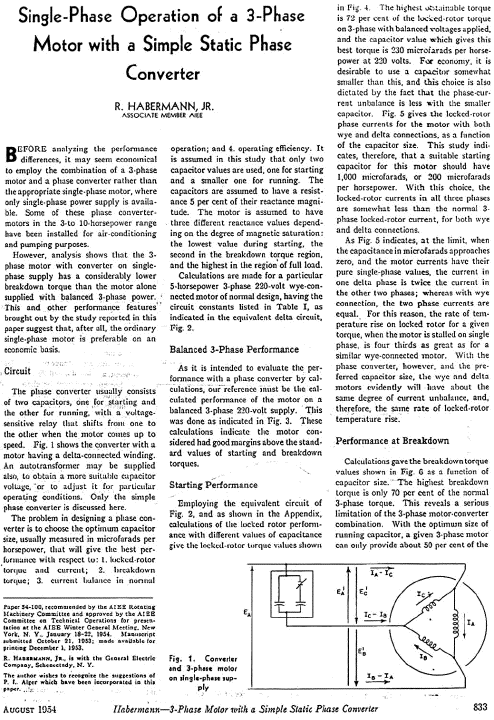

Single Phase Operation of a 3-phase Motor

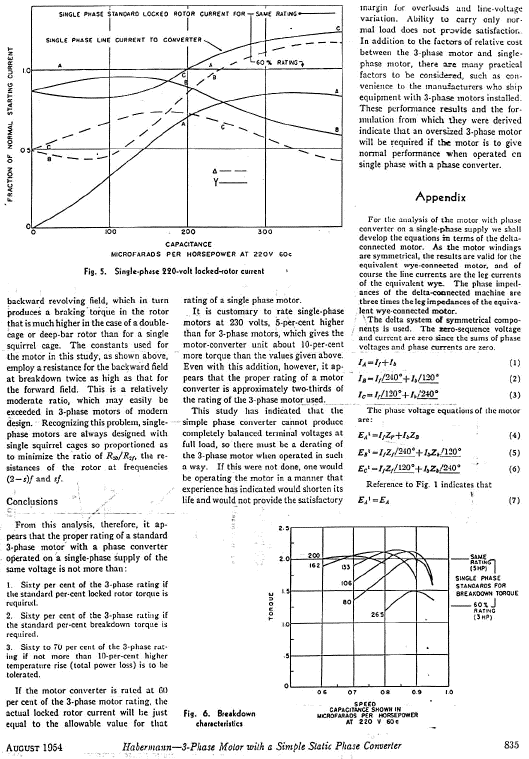

Haberman1.gif Haberman2.gif Haberman3.gif Haberman4.gif Haberman5.gif
