Utility Power Page

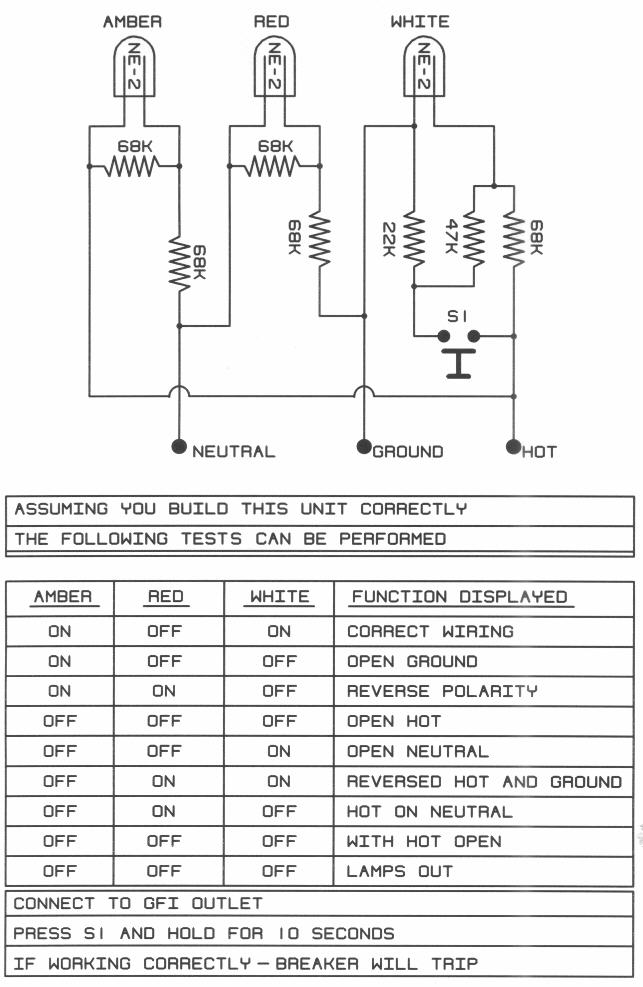

GFI Outlet Tester


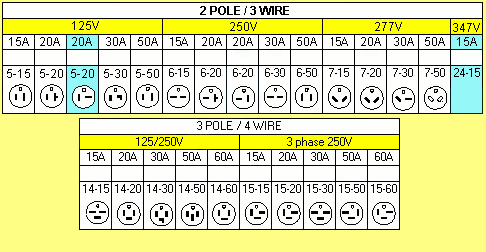

2-Pole 3-Wire Receptacles

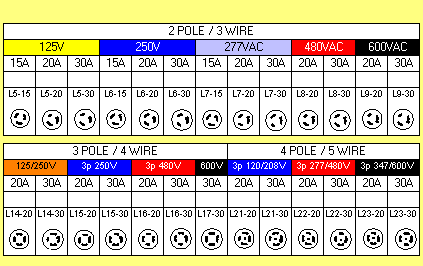

2/3/4-Pole Receptacles

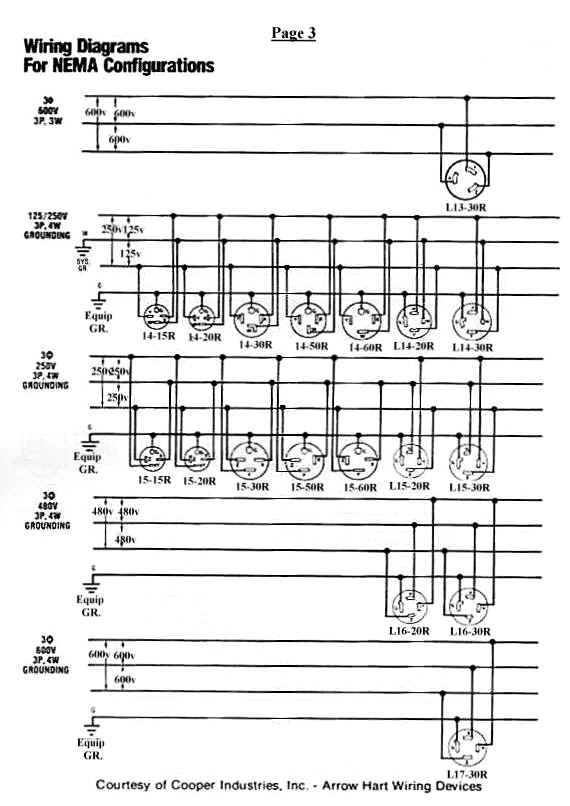

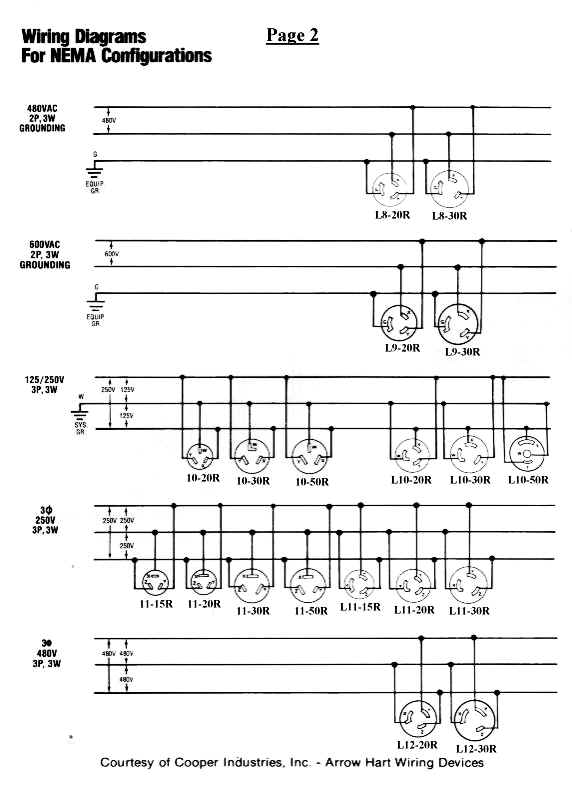

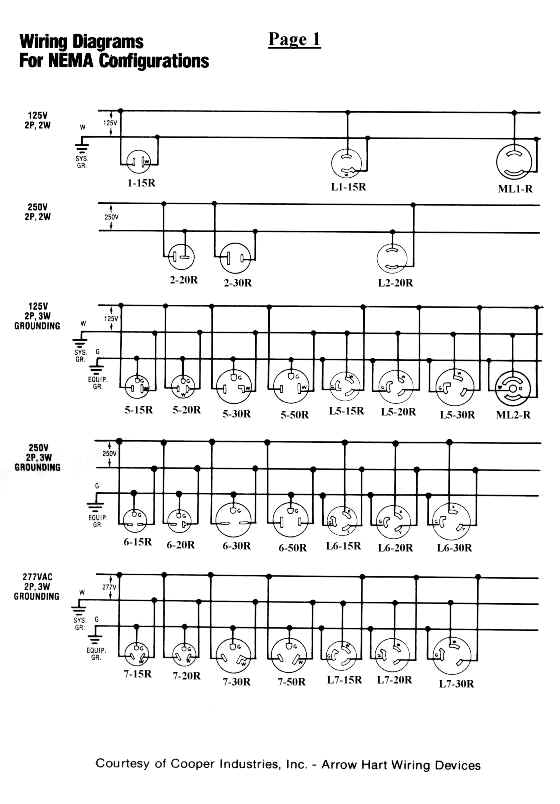

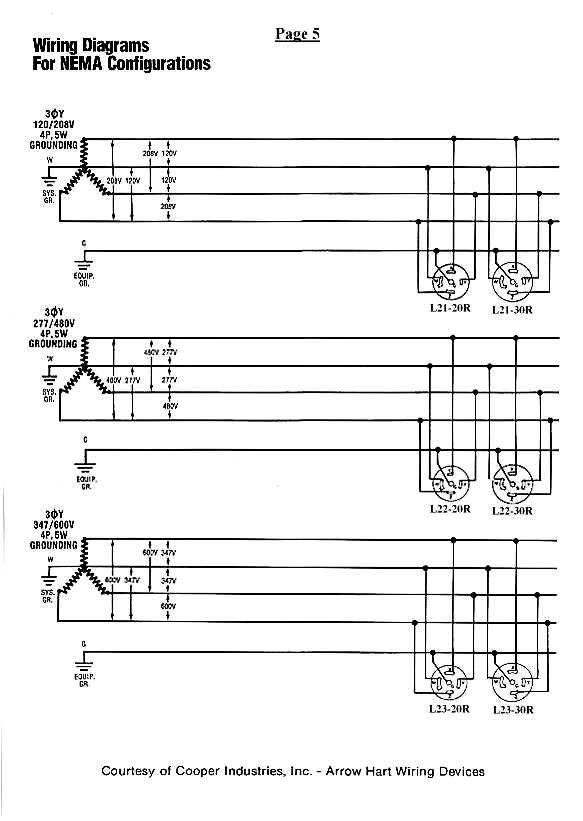

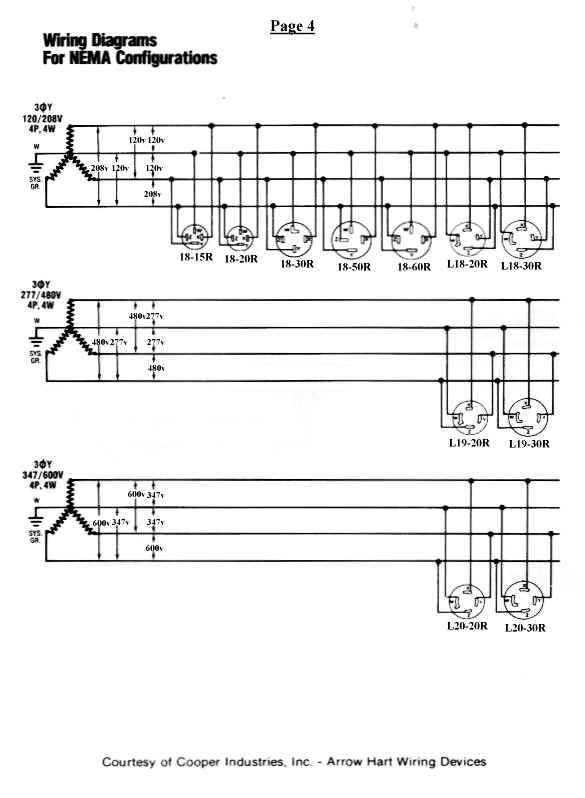

NEMA Receptacle Configurations

nema1.jpg nema2.jpg nema3.jpg nema4.jpg nema5.jpg

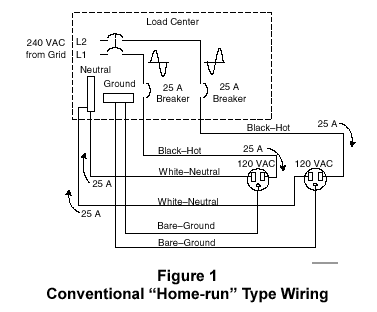

Conventional "Home-Run" Wiring


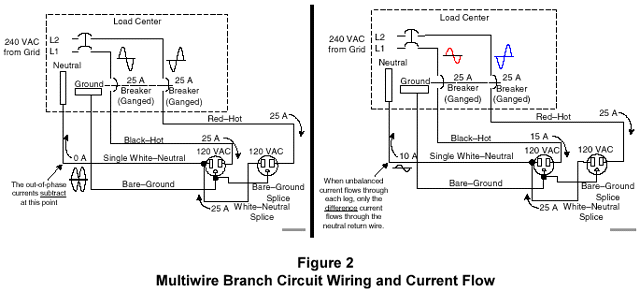

Multi-wire Branch Circuit Wiring

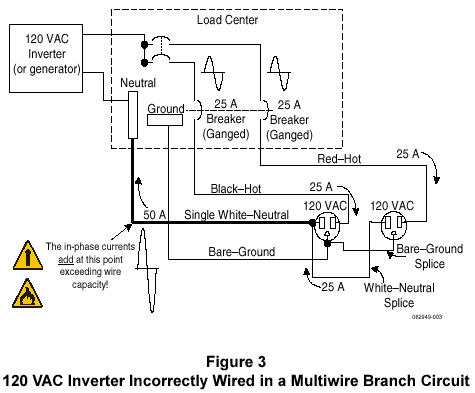

A.C. Inverter Incorrectly Wired


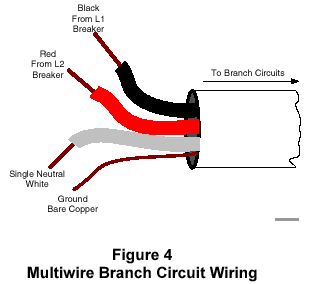

Multi-wire Branch Circuit Wiring


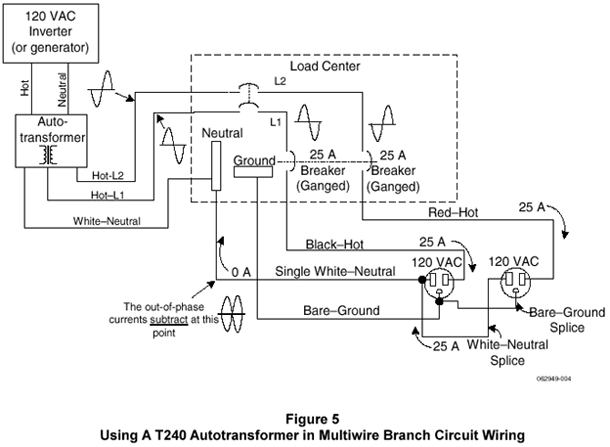

Auto-transformer in Multi-wire Branch Circuit
