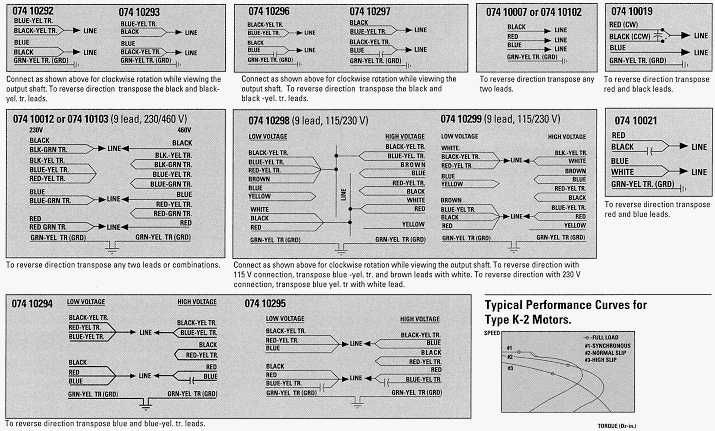

K-2 Single Phase Motor Connections

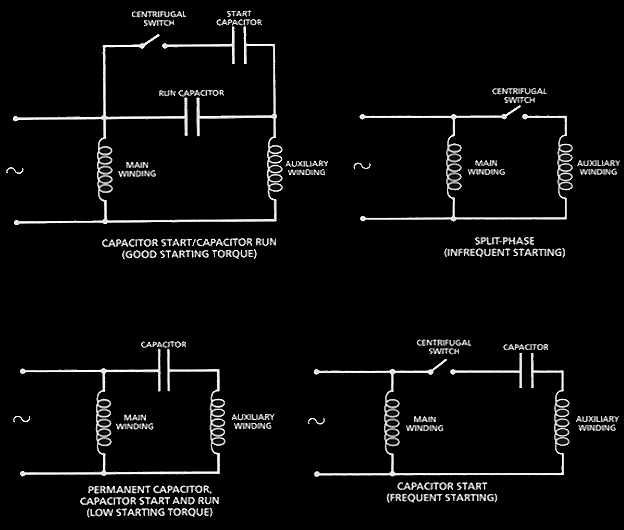

Motor Starting Types

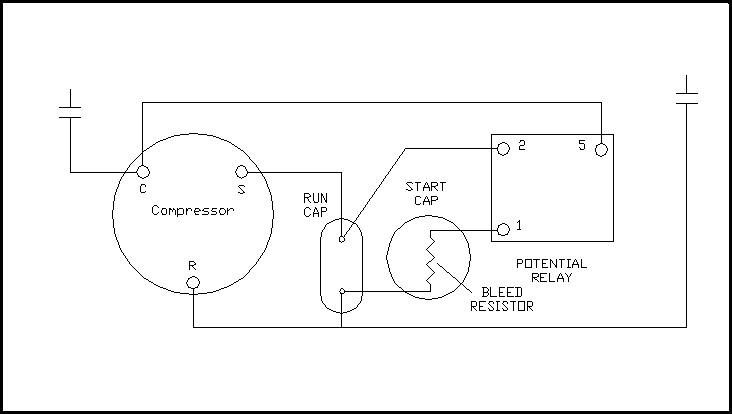

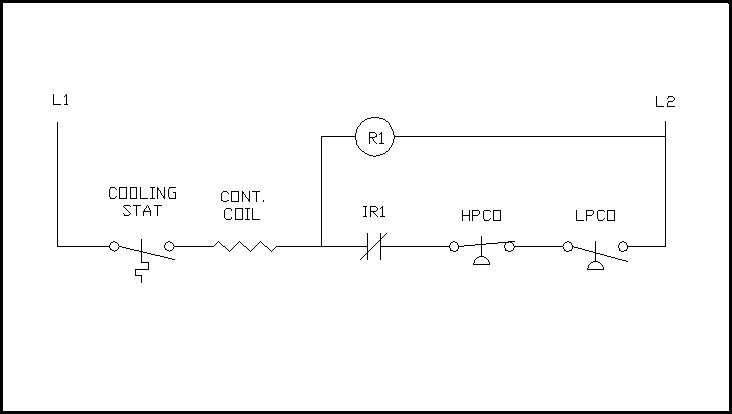

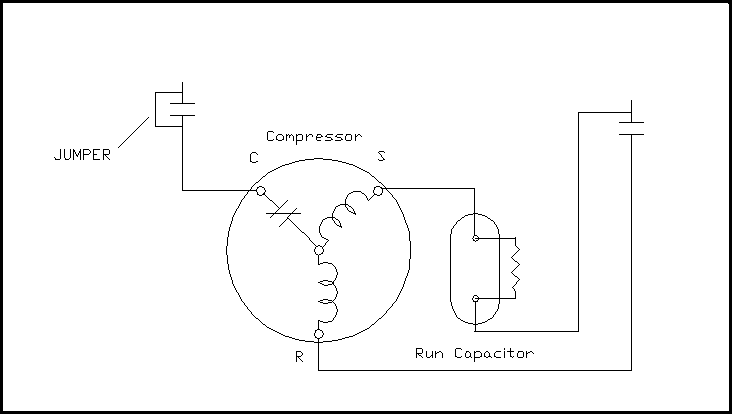

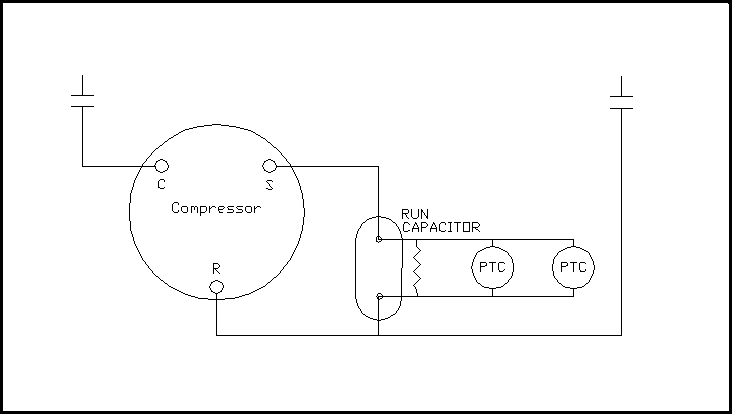

A/C Compressor Wiring

Single Voltage Wiring

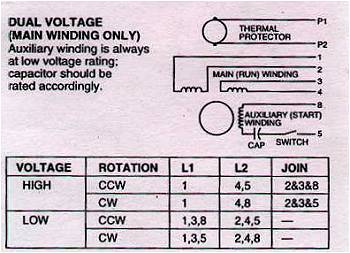

Dual Voltage Wiring

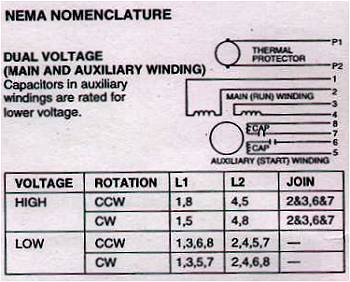

Dual Voltage Wiring (NEMA)
