DR200ATX Drawings

Drawings made while converting old PC switchers.

• Line Input Section
• Timing and Sense Circuits
• Transformer Detail
• Line Output Choke Detail
• E133 Input Inductor
• EE22 and EE16 Inductors
• Toroids - Common Mode and Output
• Low Voltage Output Driver Section
• PWM Driver and Feedback Section
• Output Filtering and Feedback
• Line Input and Pre-regulator
• PWM Driver Detail

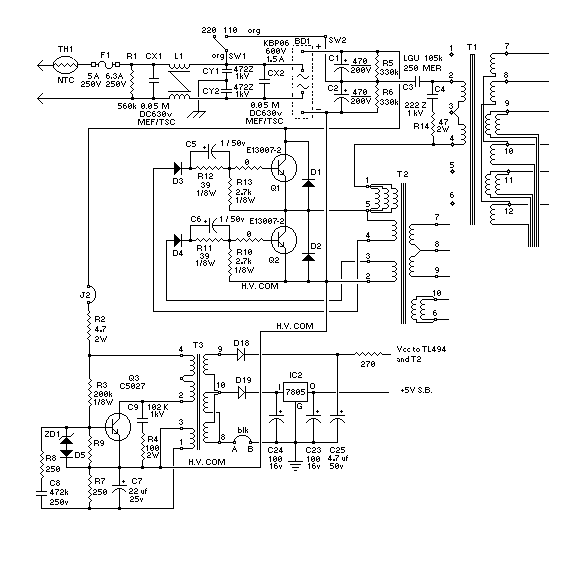

DR200ATX - Line Input Section

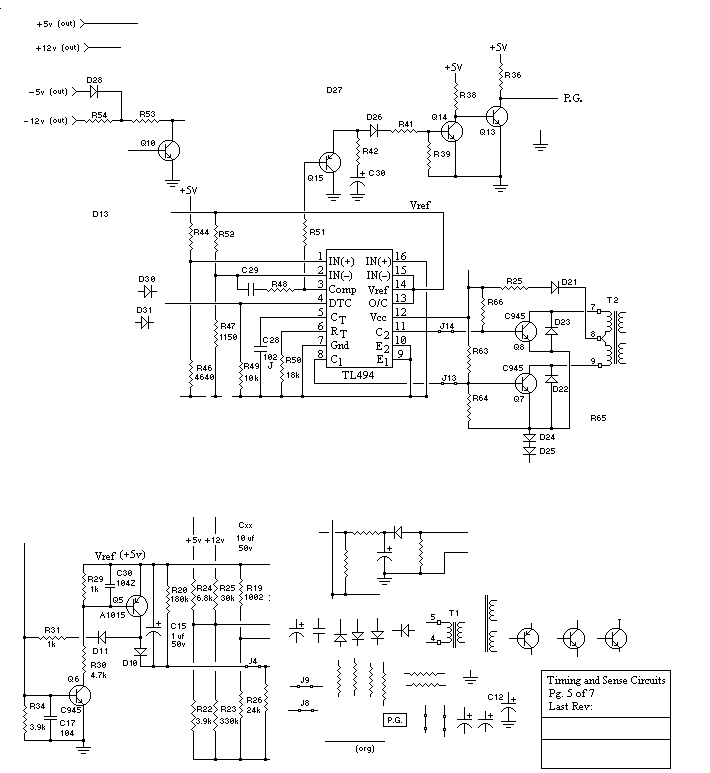

DR200ATX - Timing and Sense Circuits

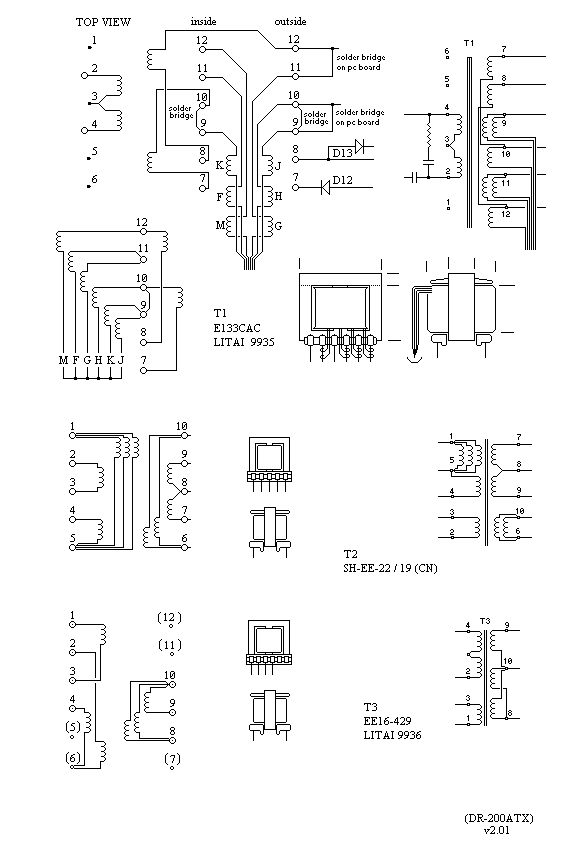

DR200ATX - Transformer Detail

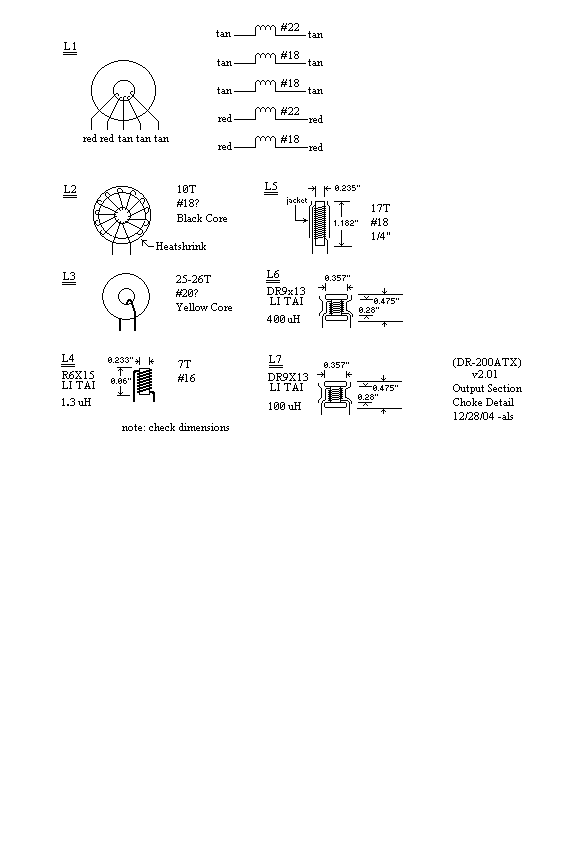

DR200ATX - Line Output Choke Detail

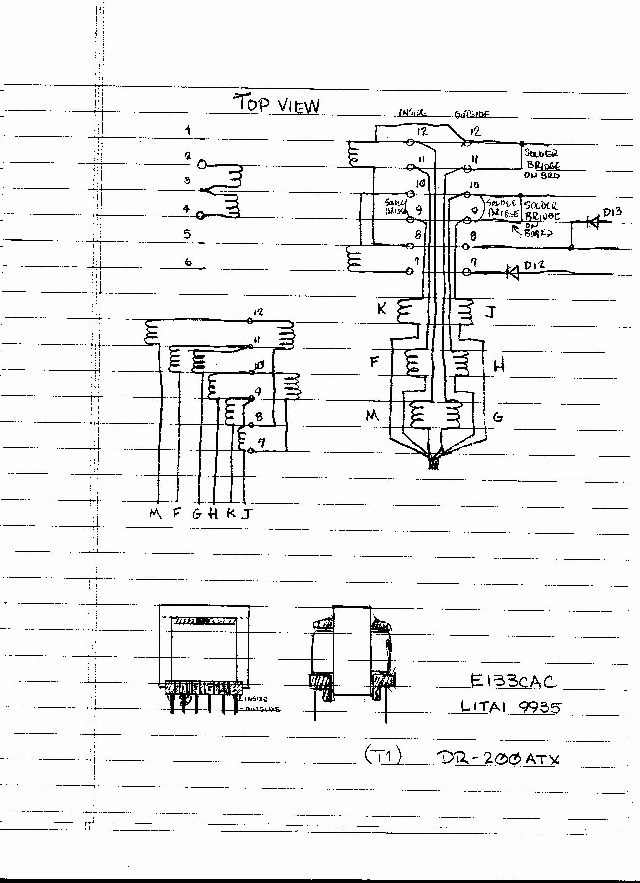

Coupled Inductor E133CAC

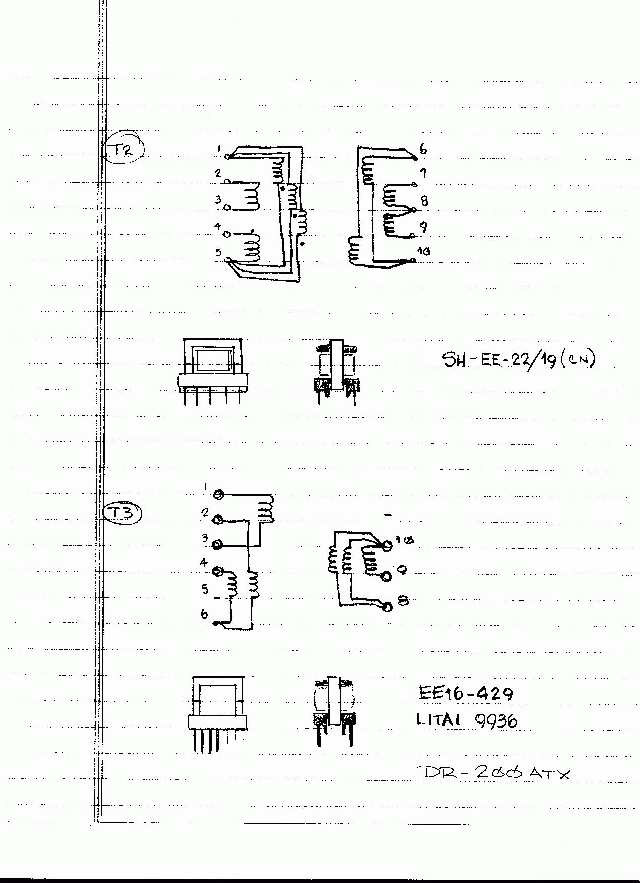

Transformers - EE22 and EE16

Toroids - Common Mode and Output

Low Voltage Output Driver Section

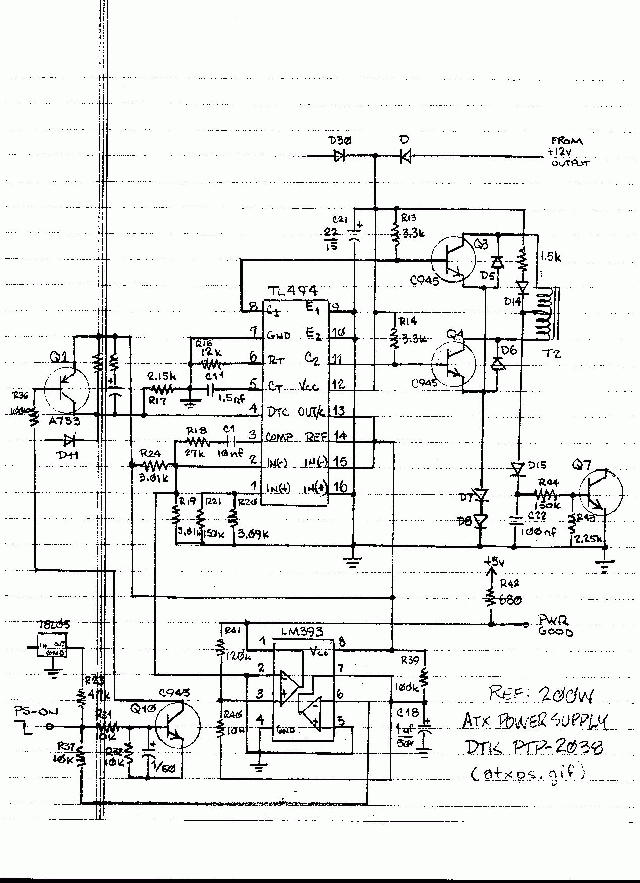

PWM Driver and Feedback Section

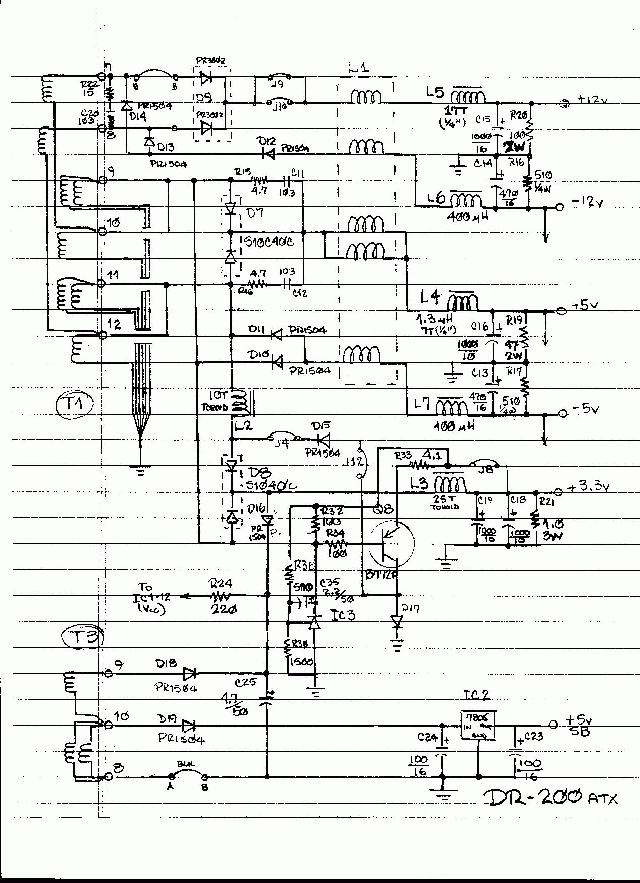

Output Filtering and Feedback

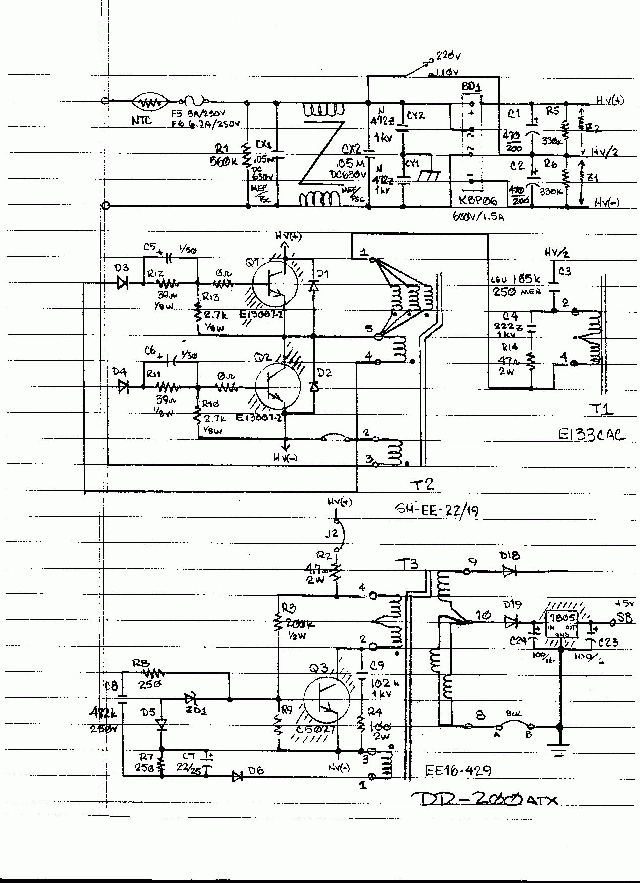

Line Input and Pre-regulator

PWM Driver Detail
