EXP-B2 Drawings
EXP-B2 230 W Power Supply.

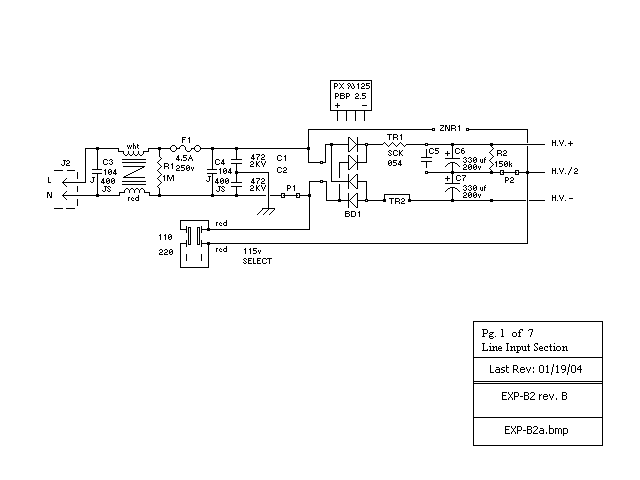

Line Input Section

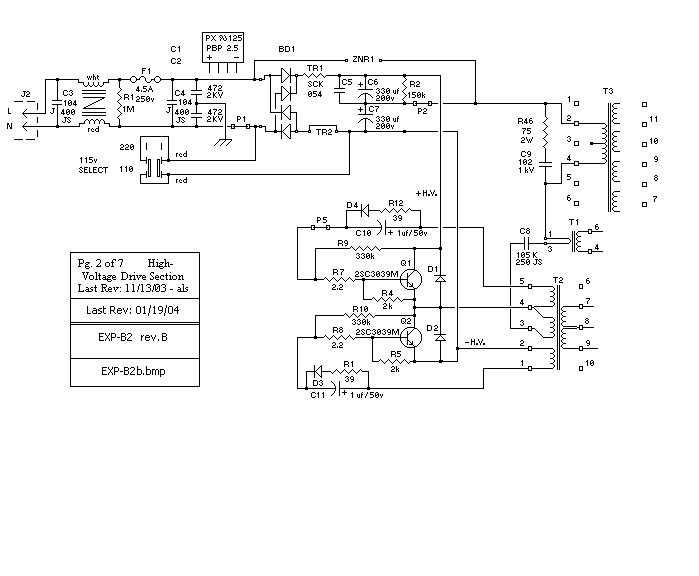

High Voltage Drive Section

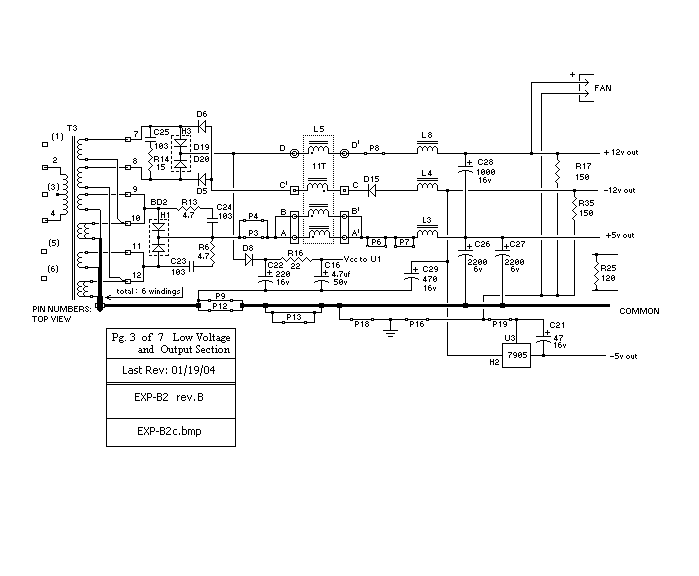

Low Voltage and Output Section

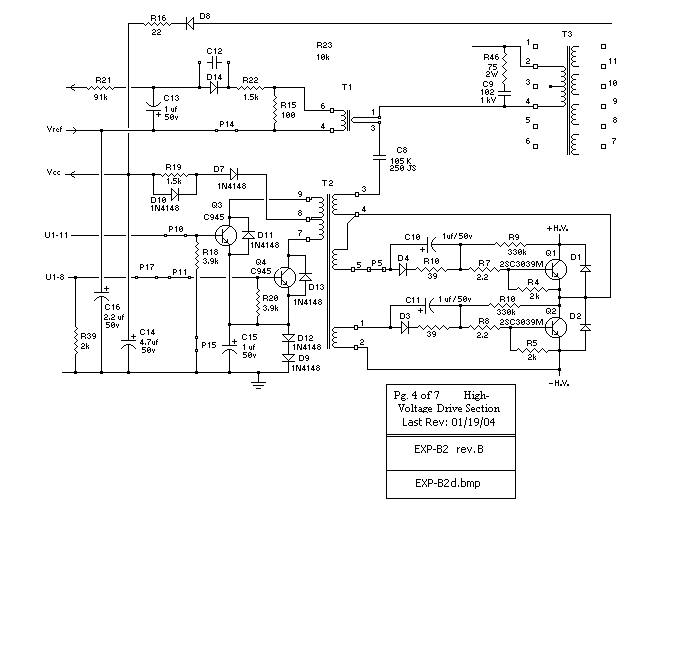

Timing and Sense Circuits

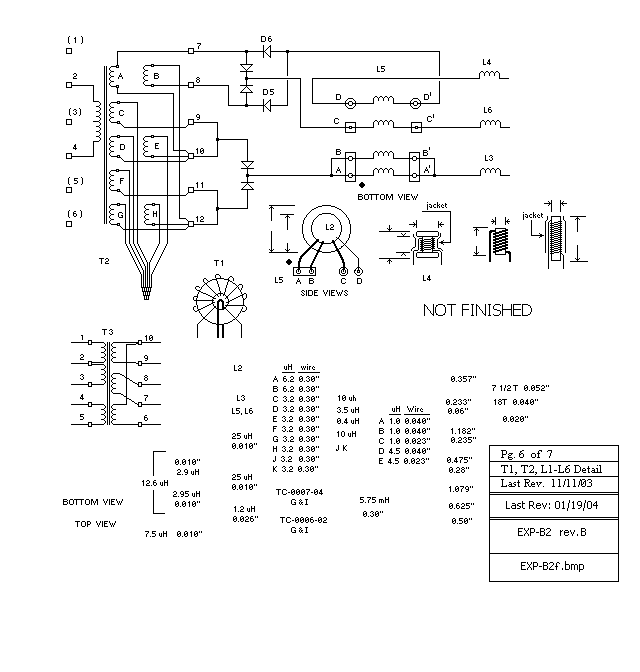

Transformer and Choke Detail
Parts List and Notes
