Miscellaneous AT Power Supply Drawings

Miscellaneous AT Power Supply Drawings

• SKS4230 - Line Input and Timing
• SKS4230 - Output and Sense Sections
• TYET005 - Line Input and Timing
• TYET005 - Output and Sense Sections
• V9100A1 - Line Input and Timing
• V9100A2 - Output and Sense Sections
• PG3045A - Dimensional Sketch
• PG3045B - Complete Schematic
• MPV250A - Complete Schematic
• MPV250B - Complete Schematic
• SeaSonic - Modification Notes
• ST-230WHF - Seven Team 230W P.S.

SKS4230 - Line Input and Timing

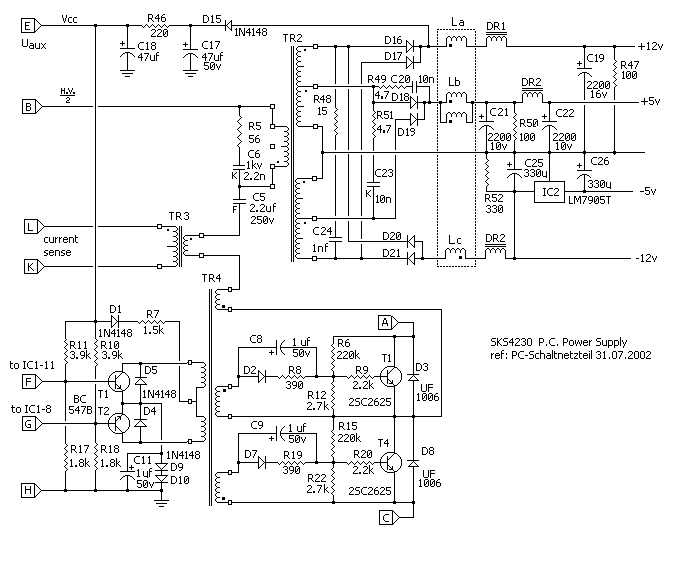

SKS4230 - Output and Sense Sections

TYET005 - Line Input and Timing

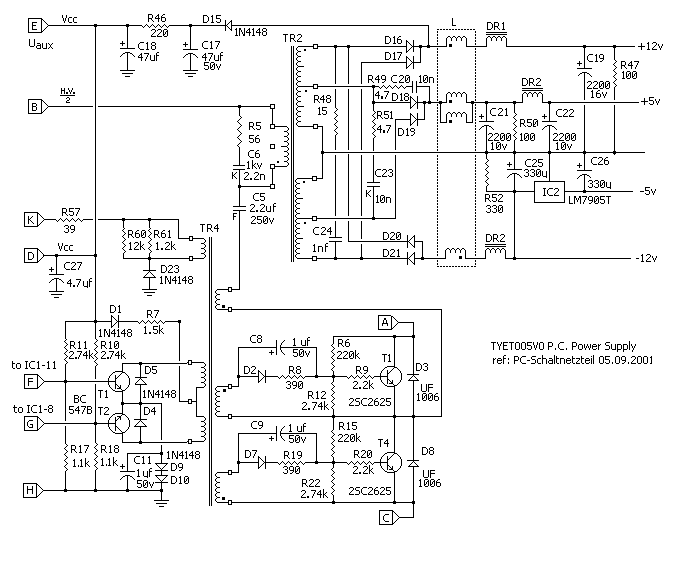

TYET005 - Output and Sense Sections

V9100A1 - Line Input and Timing

V9100A2 - Output and Sense Sections

PG3045A - Dimensional Sketch

PG3045B - Complete Schematic

MPV250A - Line Input and Timing

MPV250A - Output and Sense Sections

SeaSonic 200W AT PS- Modification Notes

Seven Team ST-230WHF 230W P.S.
