PE5200W Drawings
PE5200W Power Supply.
Line Input Section

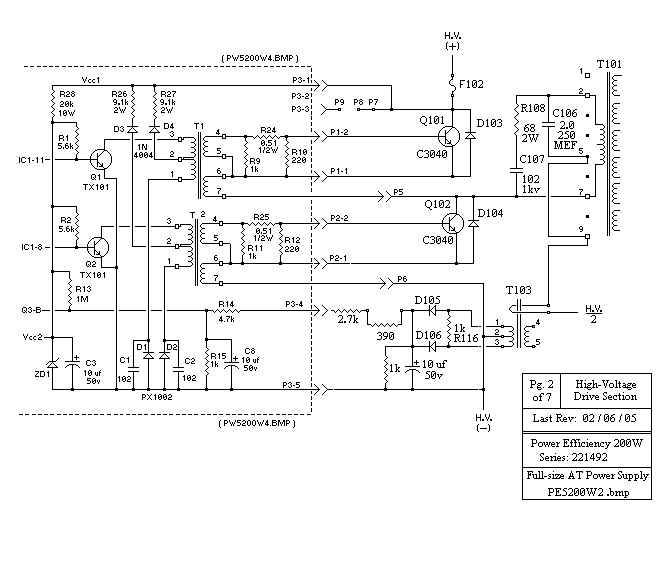

High Voltage Drive Section

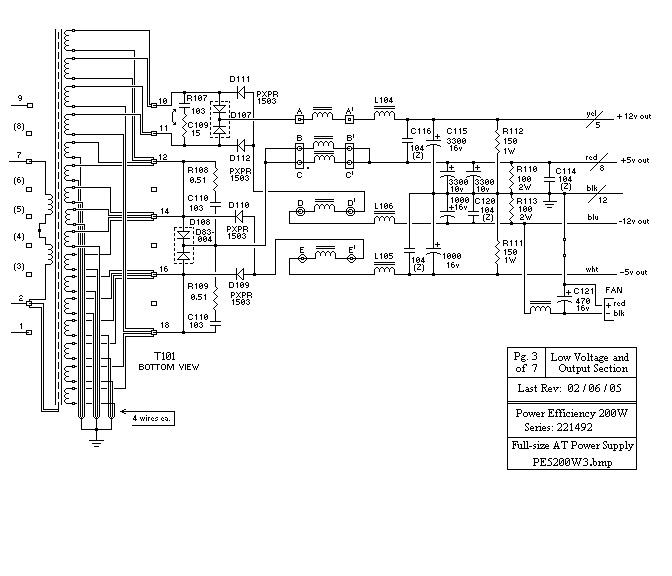

Low Voltage and Output Section
Timing and Sense Circuits

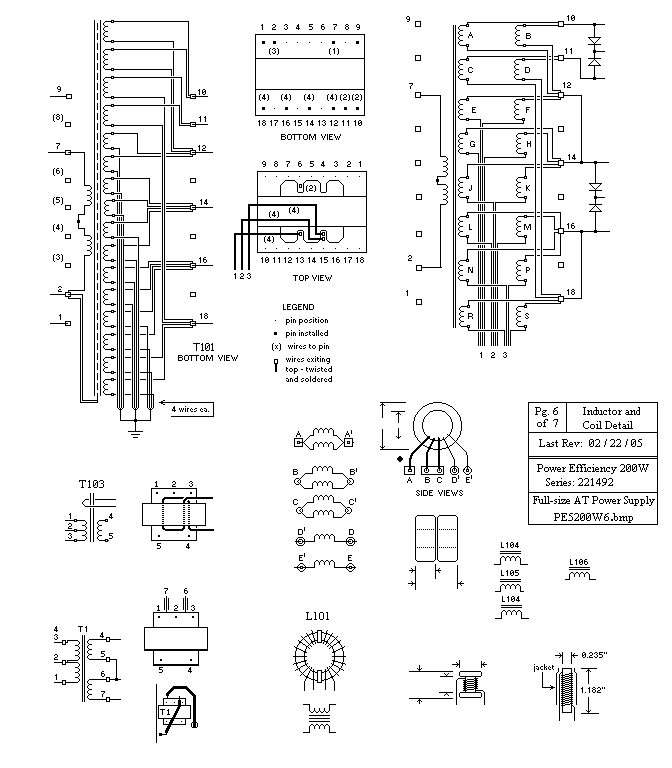

Transformer and Choke Detail
