PTP2038 Drawings
PTP2038 Power Supply.

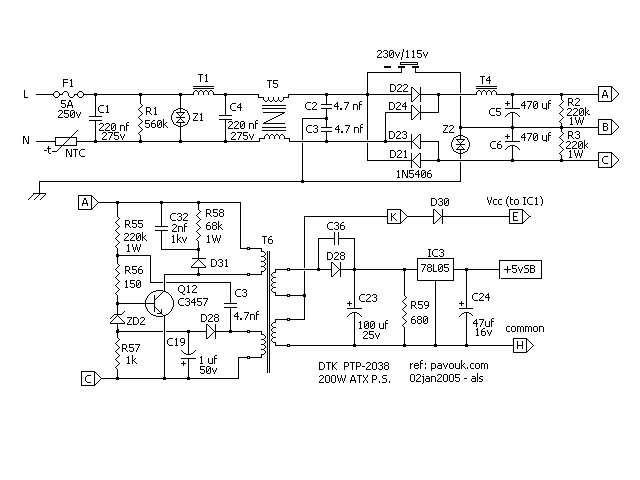

Line Input and High Voltage Drive Section

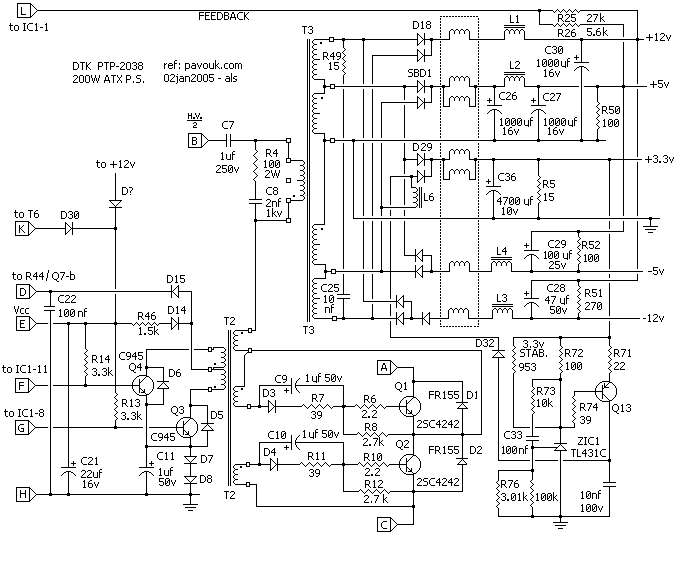

Low Voltage and Output Section
Timing and Sense Circuits
