Sanford 200W AT Power Supply

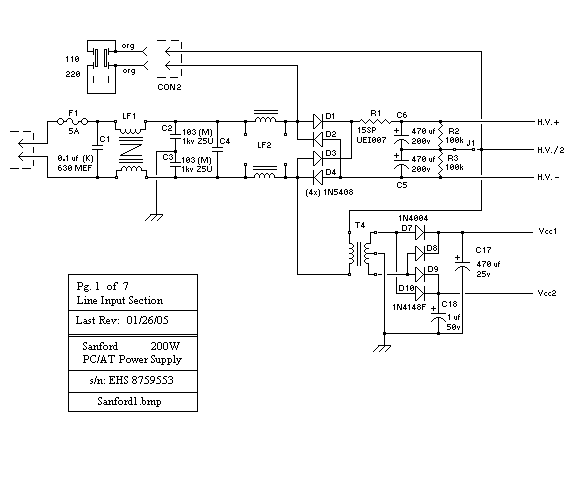

Line Input Section

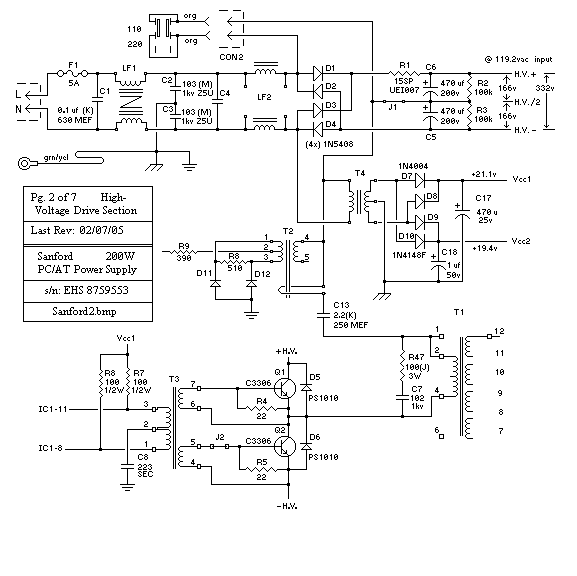

High Voltage Drive Section

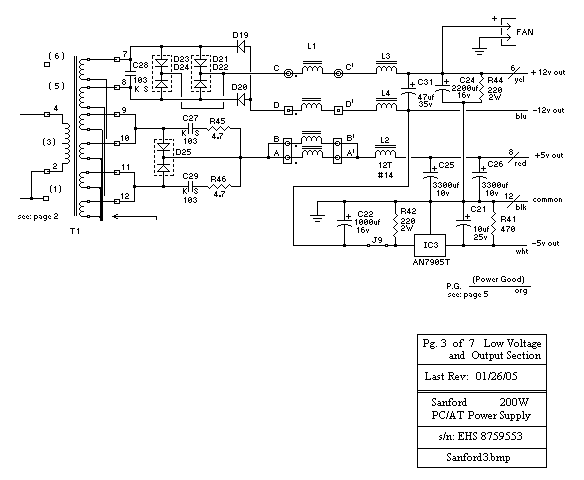

Low Voltage and Output Section

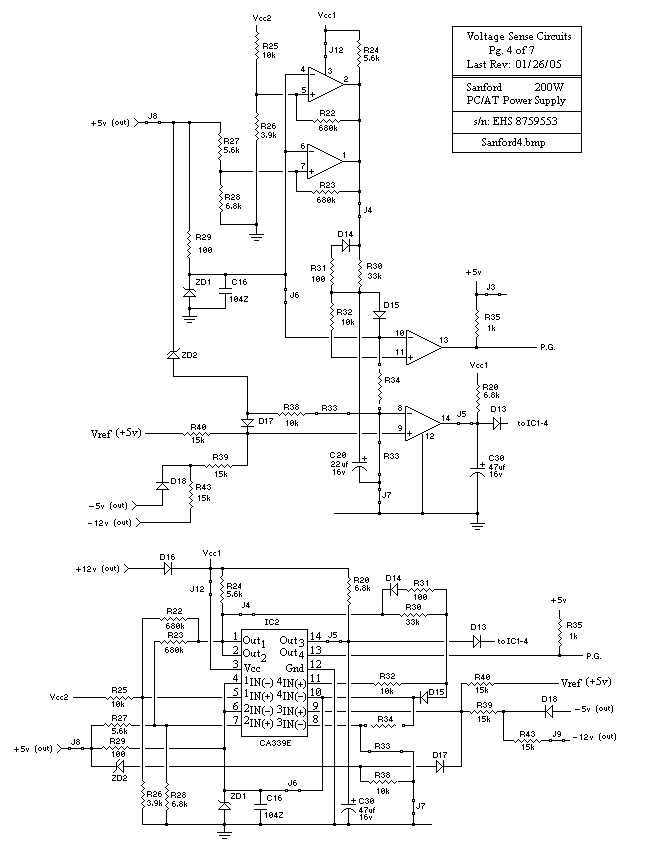

Low Voltage Sense Section
Timing and Sense Circuits

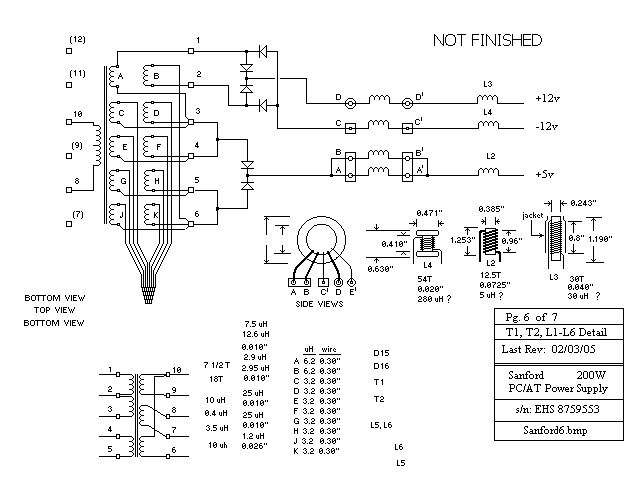

Transformer and Choke Detail
Parts List and Notes
