Analog Power Supply Circuits - page 2

Schematics drawn from modified equipment.

• 4-Output Power Supply - original schematic
• 4-Output Power Supply - with modifications
• RIS-1178 Telecom Power Supply
• 25v, 20A Power Supply
• +5v, +60v Power Supply
• +24v Charger/Power Supply
• +42v Power Supply

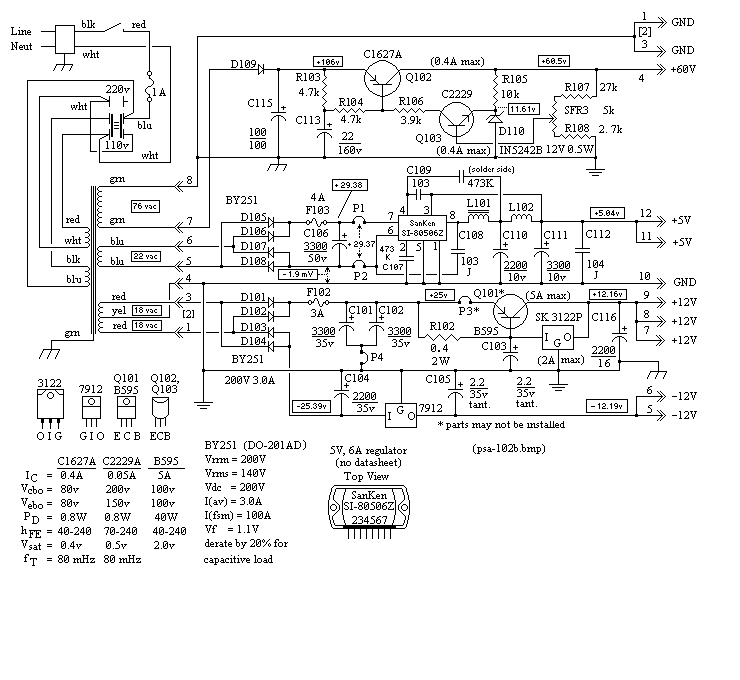

4-Output Power Supply

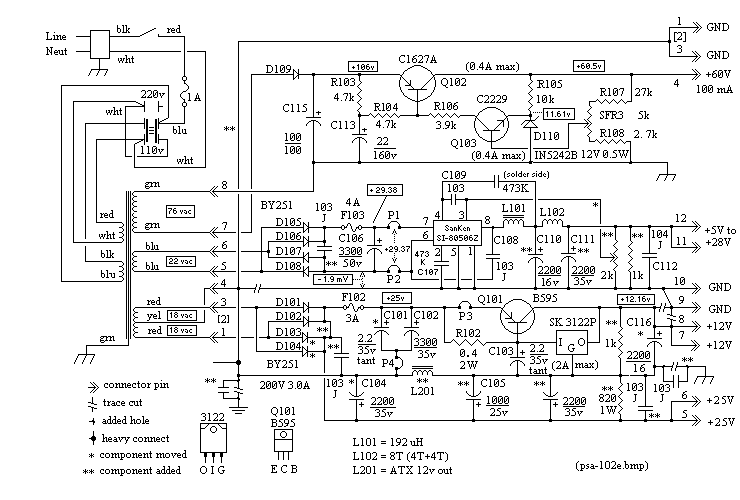

4-Output Power Supply - with modifications

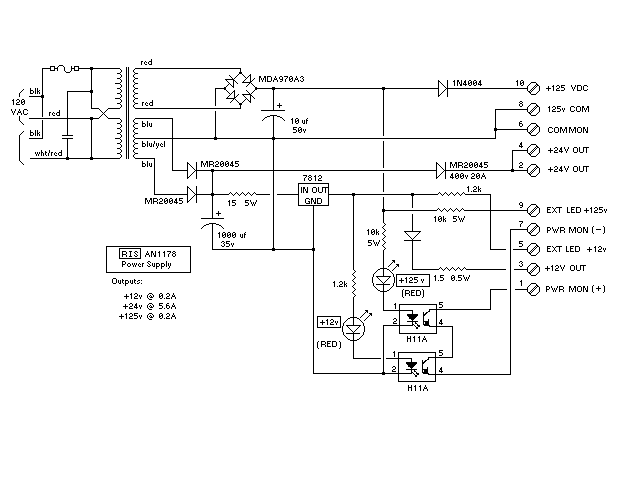

RIS-1178 Telecom Power Supply (105v/24v/12v)

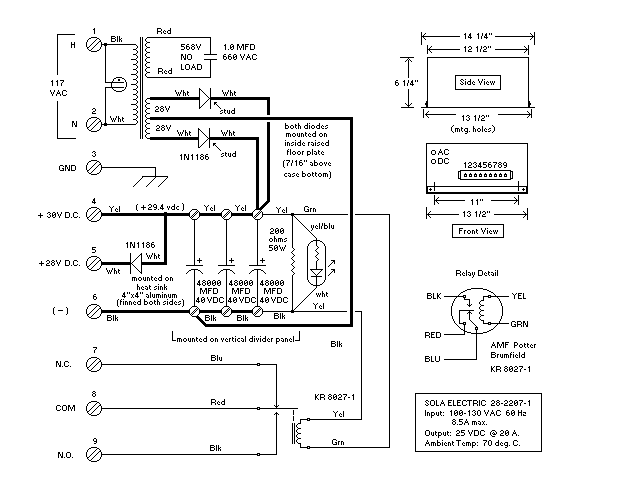

25v, 20A Power Supply

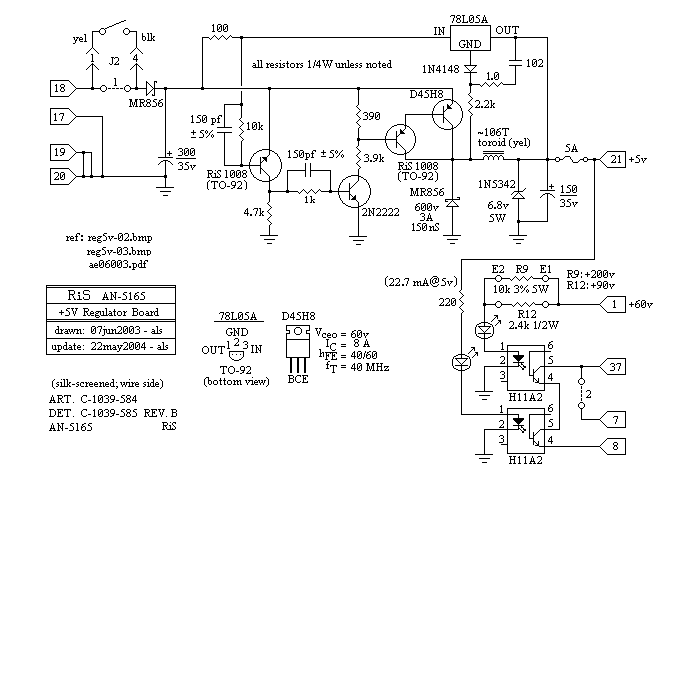

+5v, +60v Power Supply

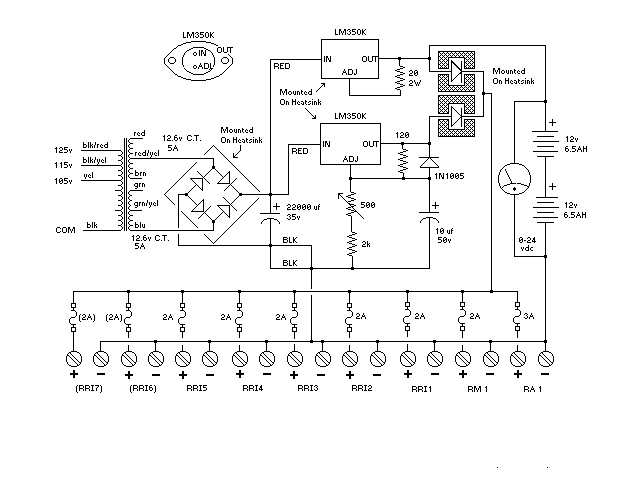

+24v Charger/Power Supply

+42v Power Supply

---
