Line Level Filters

Schematics - A.C. Line Filters

• IEC Filters 1
• IEC Filters 2
• EMI Filters 1
• SANPS Line Filter
• CD200 Line Input Section

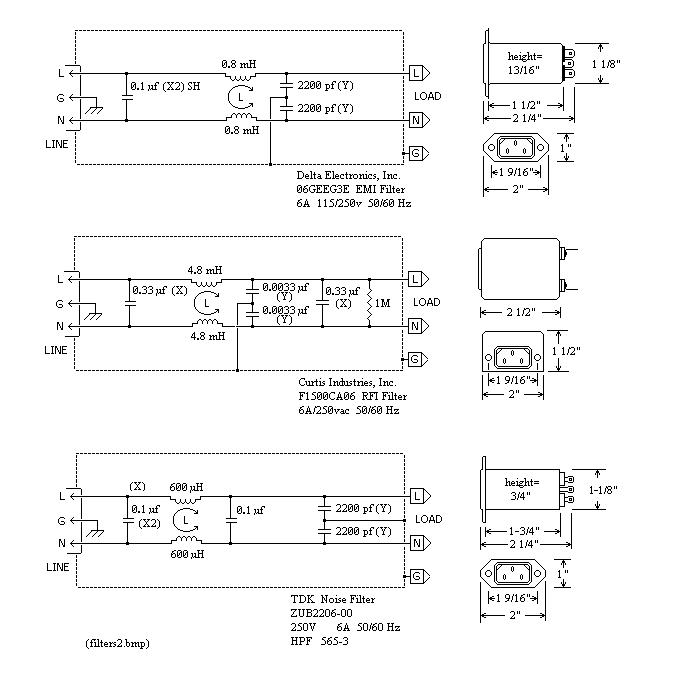

IEC Filters 1

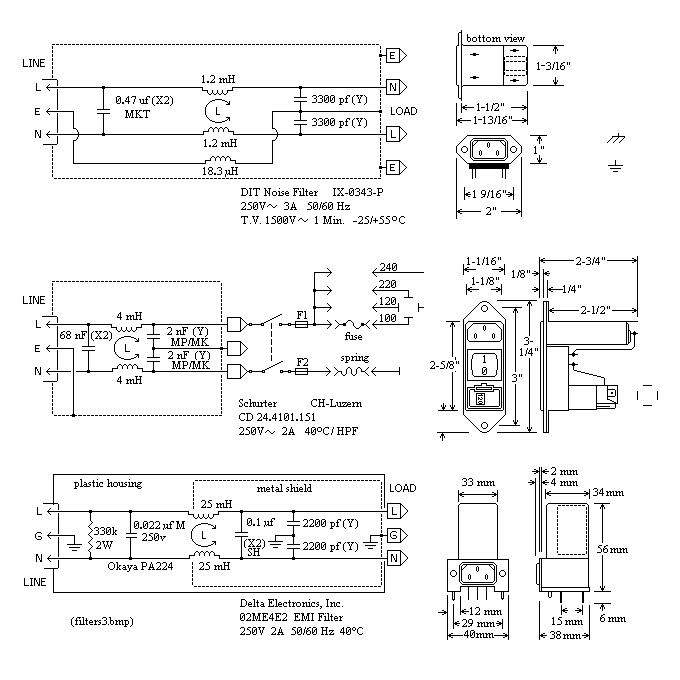

IEC Filters 2

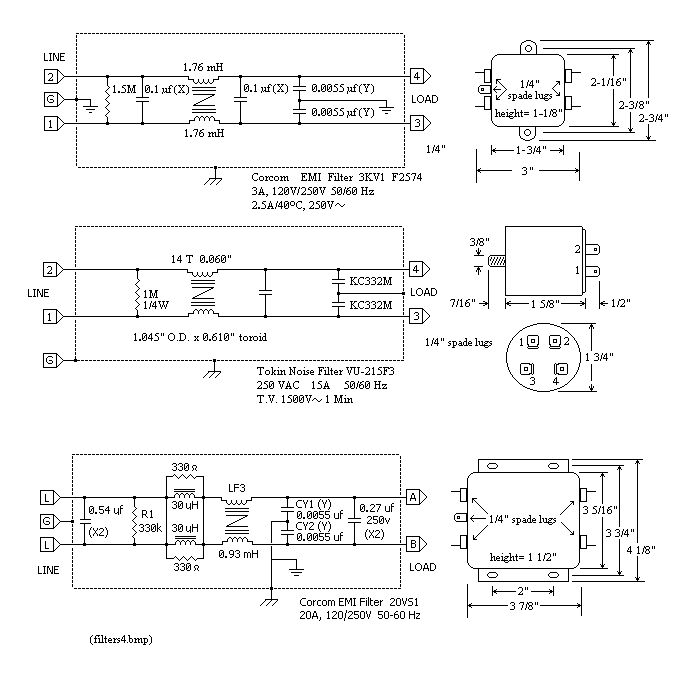

EMI Filters 1

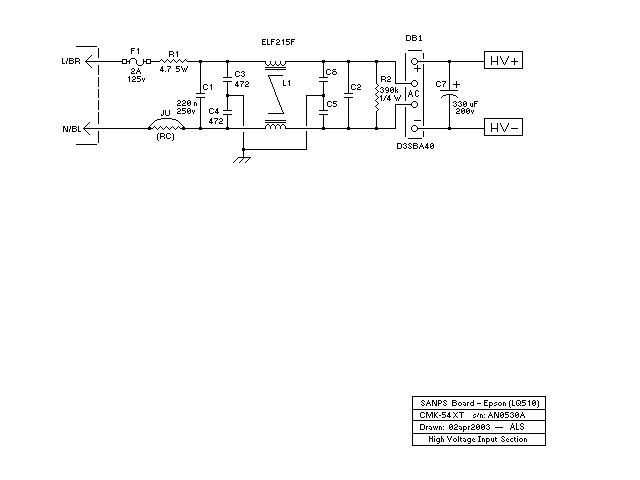

SANPS Line Filter (part of Epson LQ510)

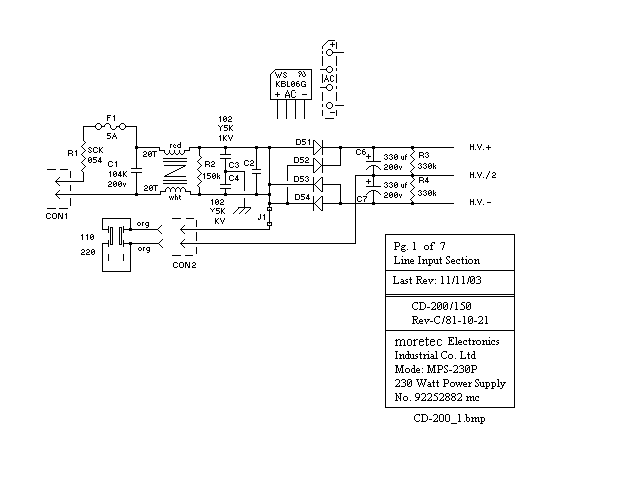

CD200 Line Input Section



---
