Low Voltage Up-Converters
These are mostly partial drawings, done mostly for reference.

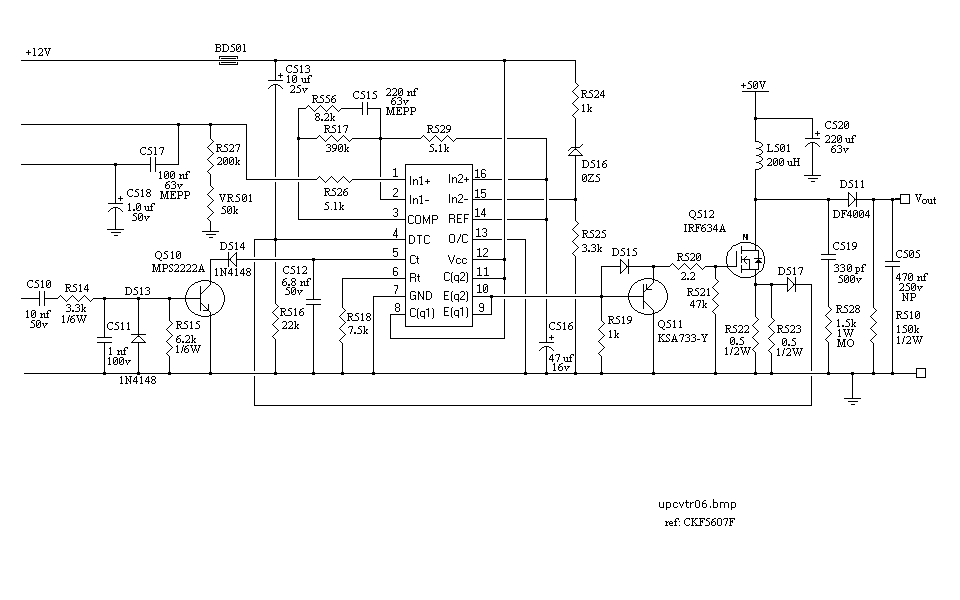

+12v to +50v Converter

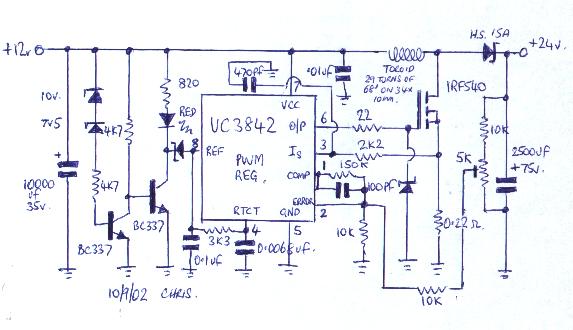

12v to 24v Converter
+12v to +20v Converter

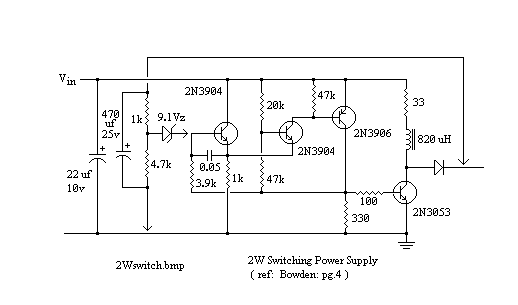

2W Switching Power Supply

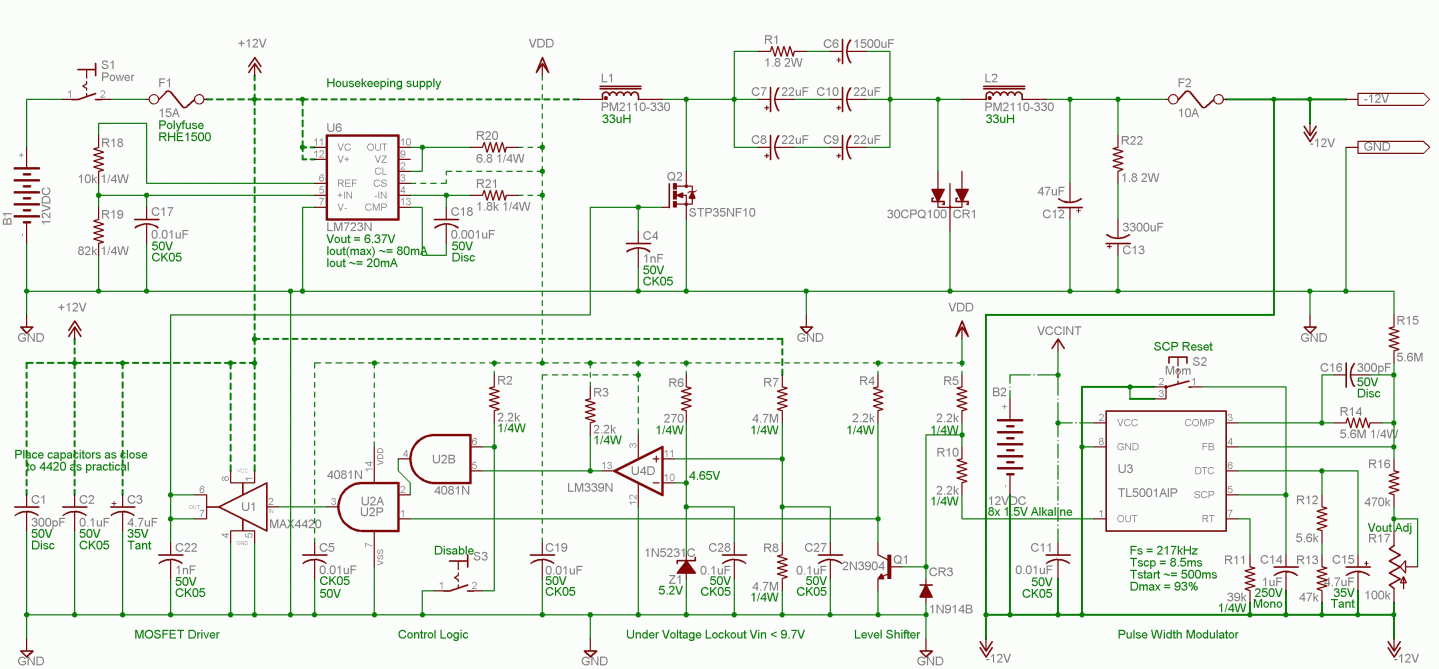

+12v to 24v UpConverter

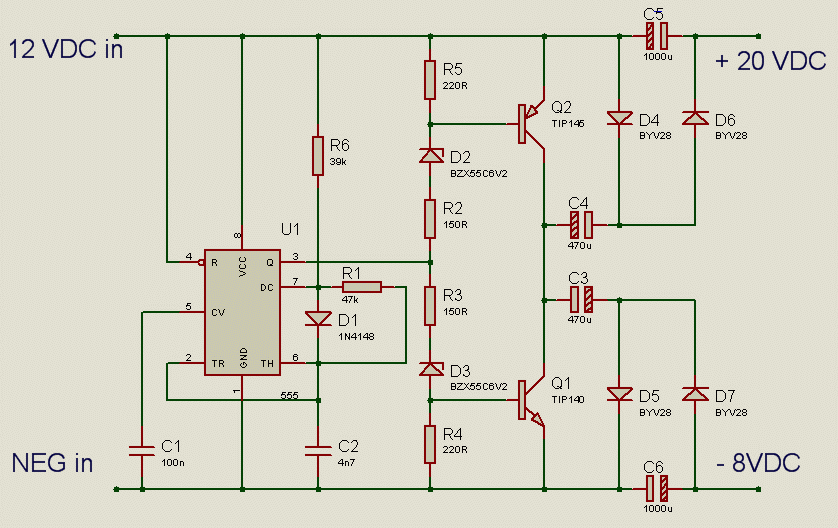

+12v to +24v,-8v Converter
4W Inverter

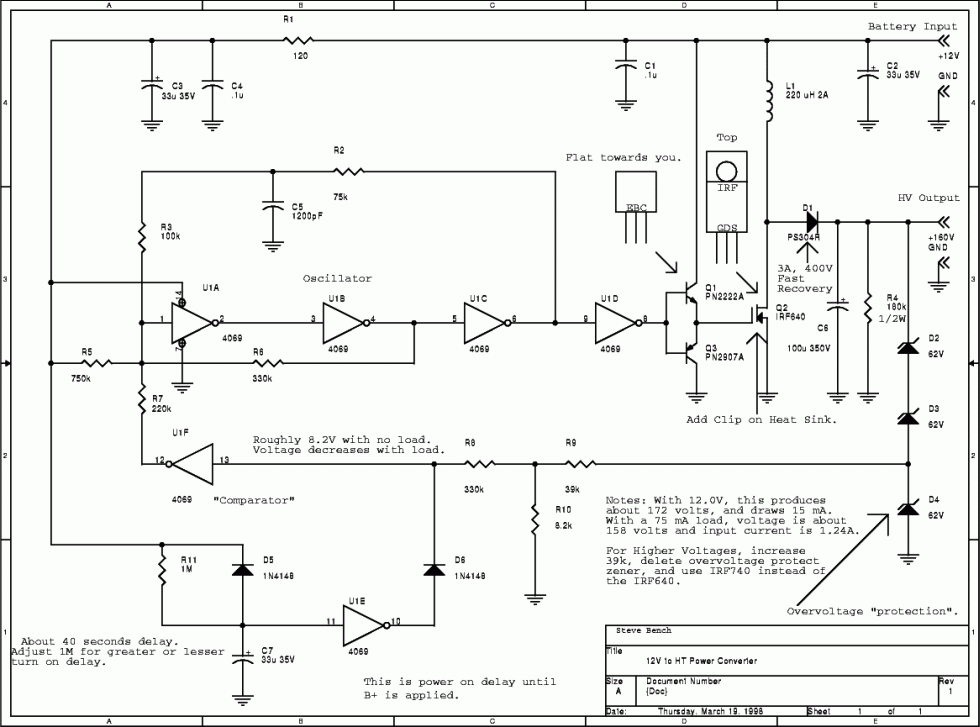

12v to 160v Converter

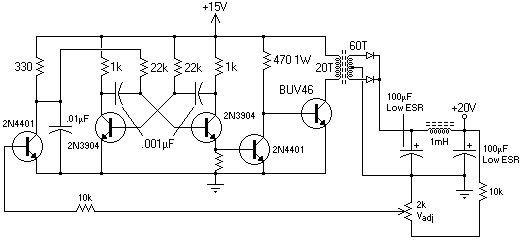

+15v to +20v Converter
+7v to +12v Converter

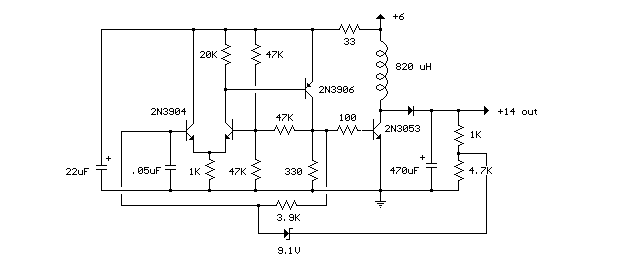

+6v to +14v Converter

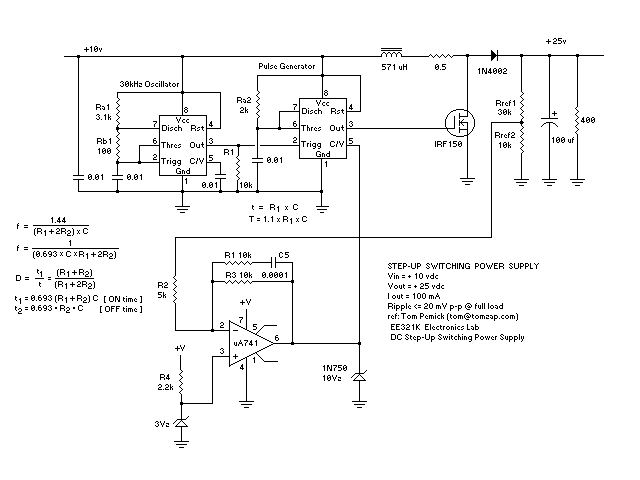

+10v to +25v Converter
+12v to -12v Converter
