Miscellaneous Power Supply Drawings

Miscellaneous Power Supply Drawings

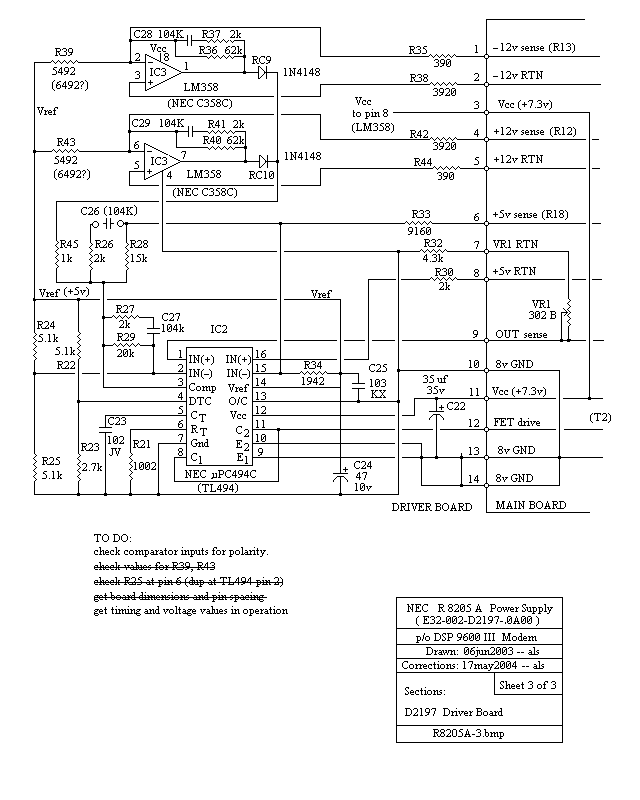

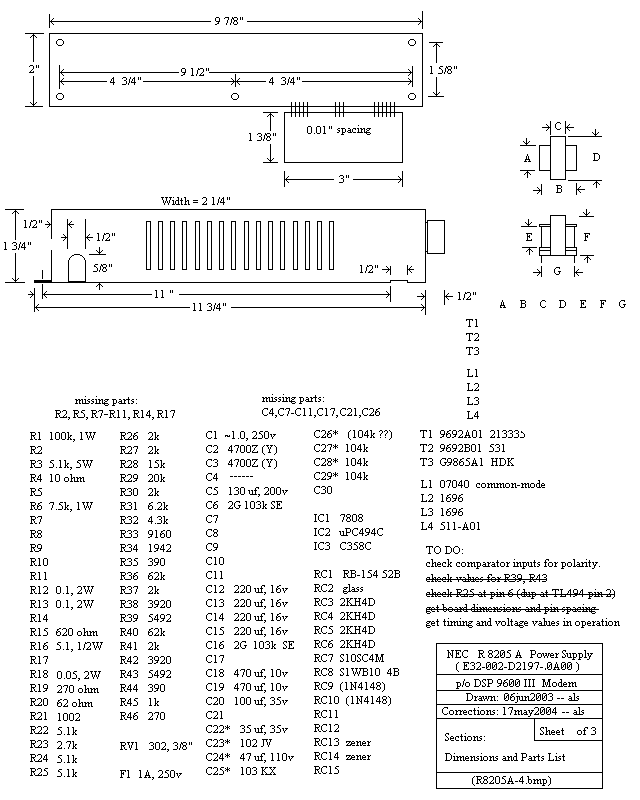

NEC R 8502 A Power Supply


NEC R 8502 A Power Supply


NEC R 8502 A Power Supply


NEC R 8502 A Power Supply


13.8v, 40A Switching Power Supply

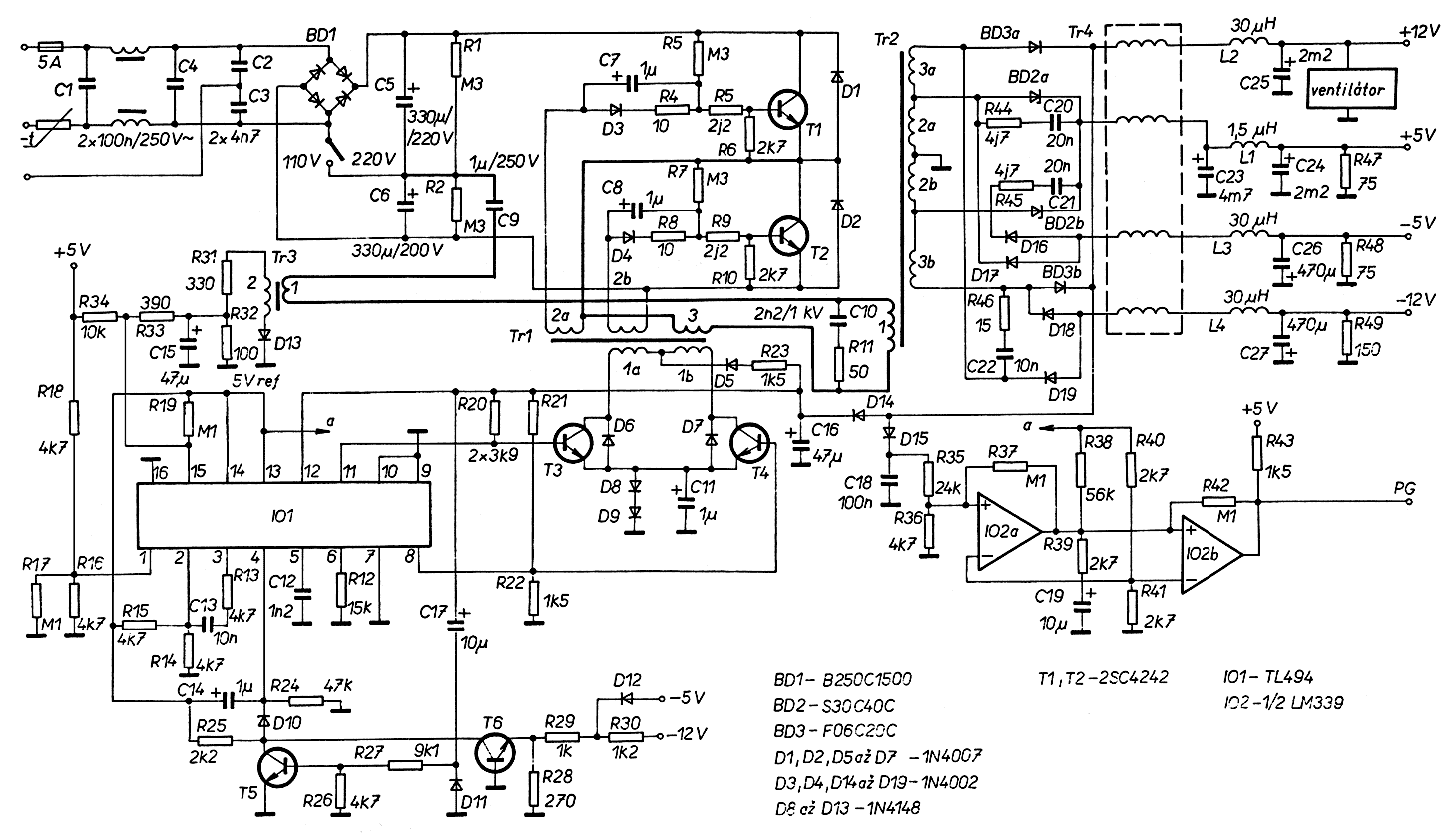

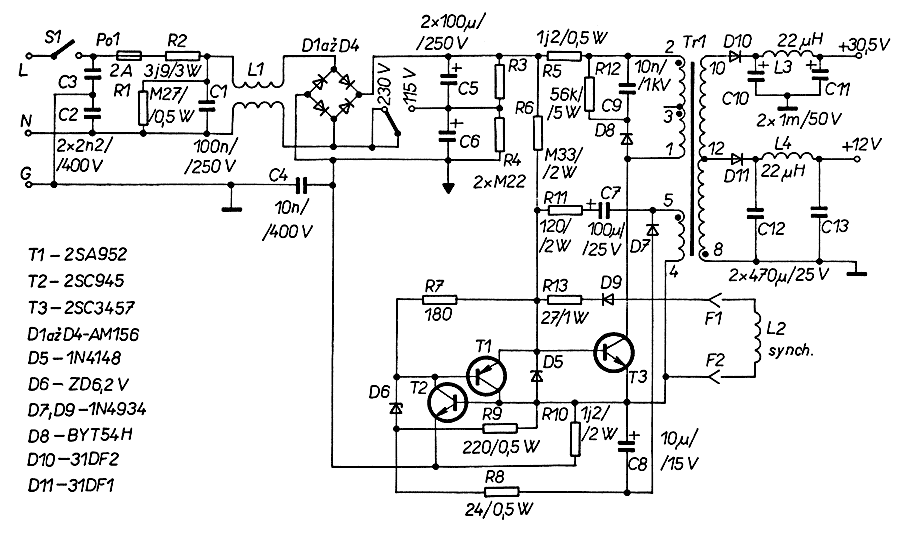

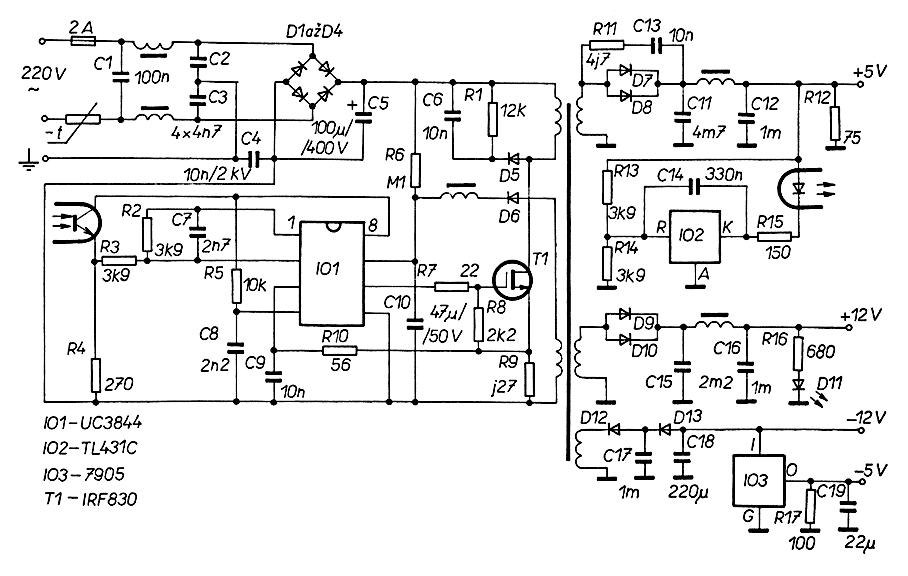

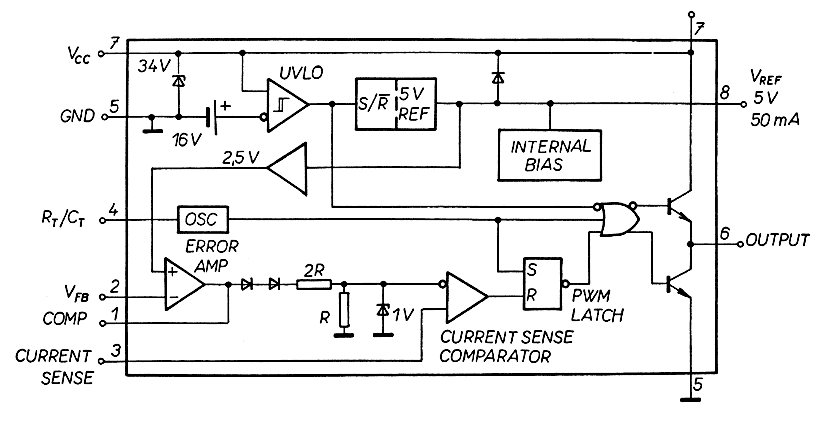

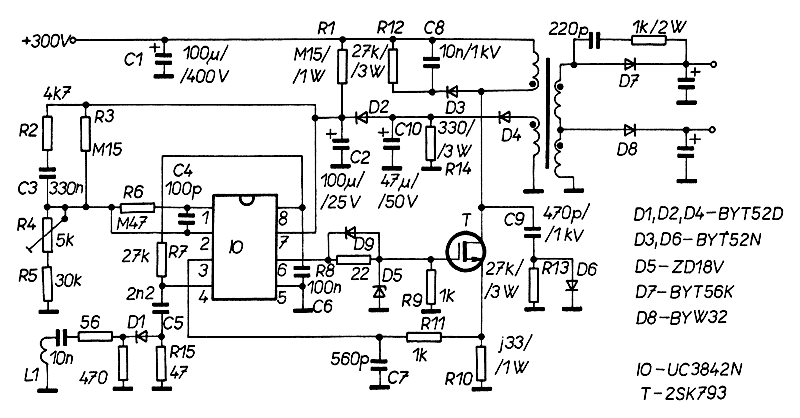

Czech Power Supply

compow05.gif compow06.gif compow07.gif compow08.gif compow09.gif compow10.gif compow11.gif

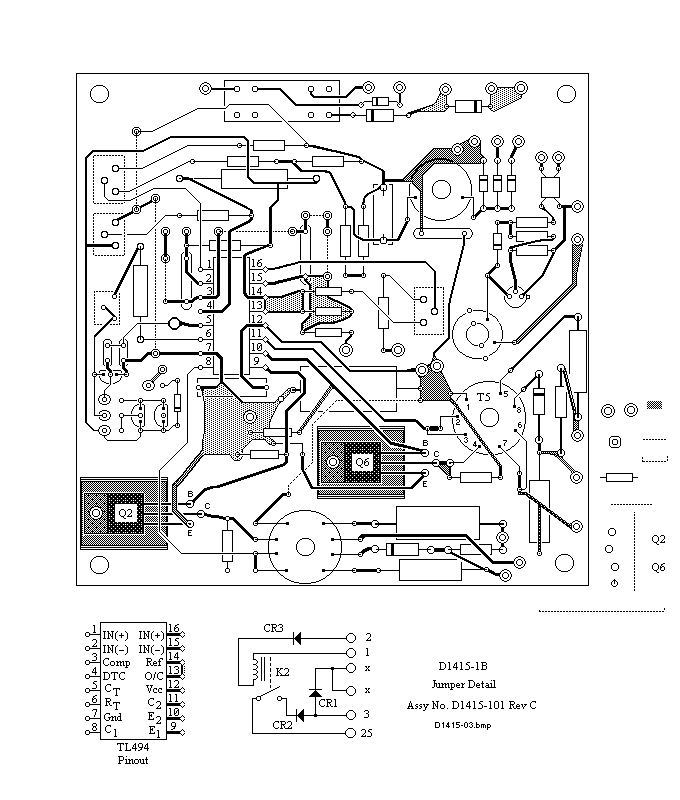

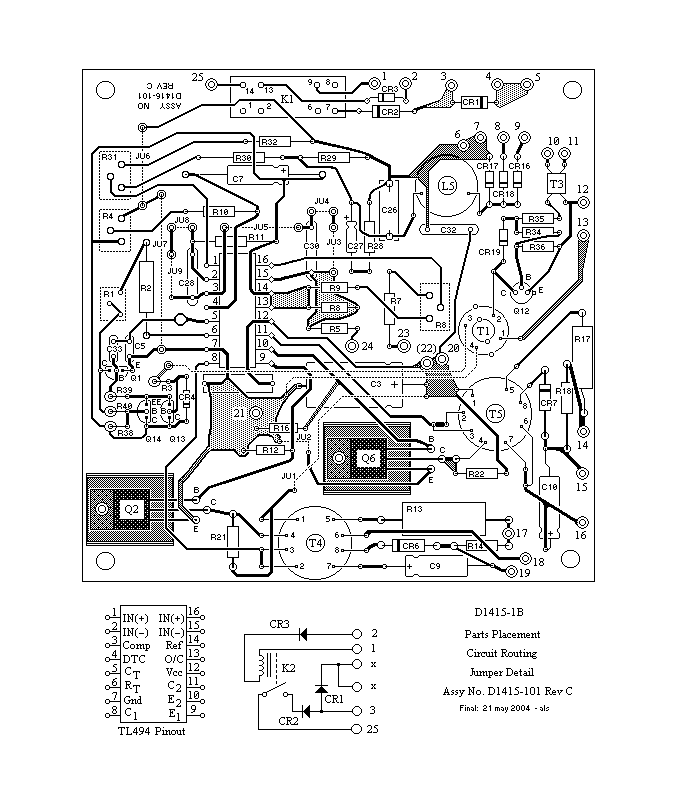

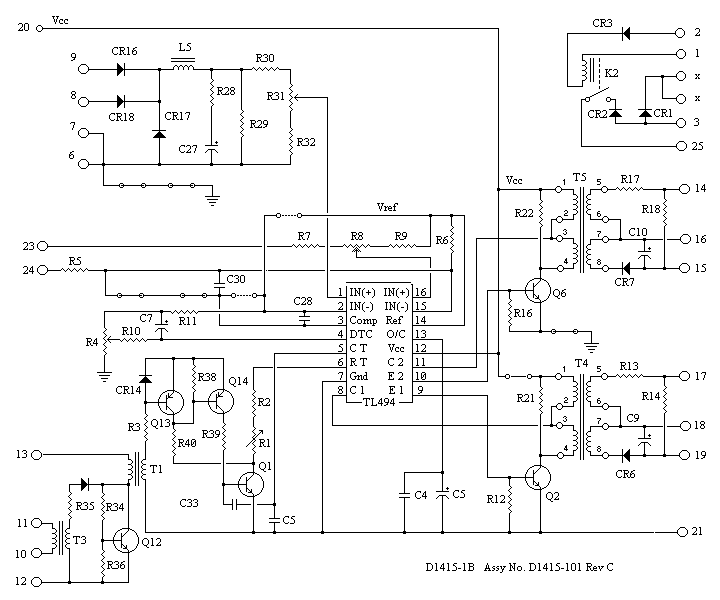

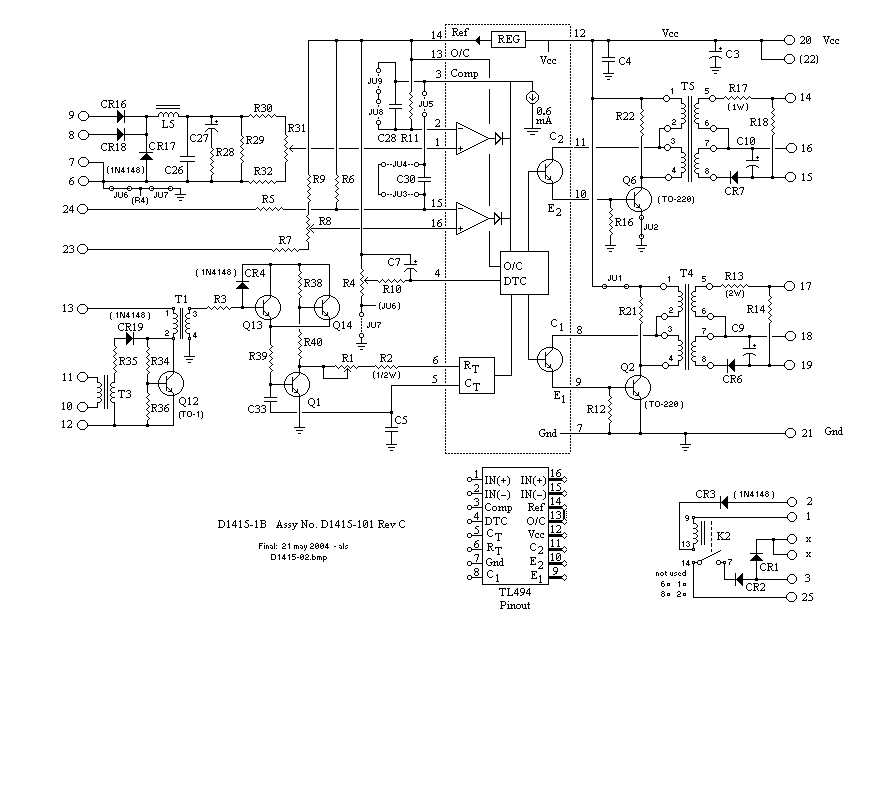

D1415 Power Supply Board

D1415-01.gif D1415-01.gif D1415-01.gif D1415-01.gif D1415-21.gif

DC-DC Full Bridge Power Supply
