Miscellaneous Useful Test Equipment

   Signal Sources and Testers

• POST Code Reader for ISA bus
• Pulse Generator Circuit
• Telecommunications Test Set
• Simpson Model 385 Meter
• Cable Reflection Tester
• TDR Signal Source
• TDR Connections
• TDR Scope Adapter
• Waveform Generators
• Quadrature Oscillator

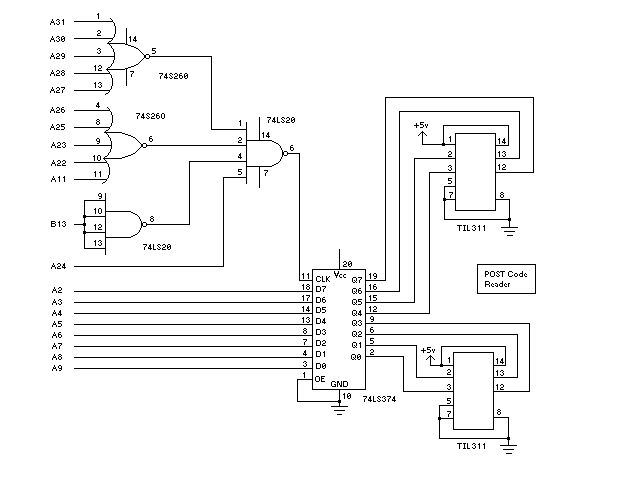

POST Code Reader (ISA bus)

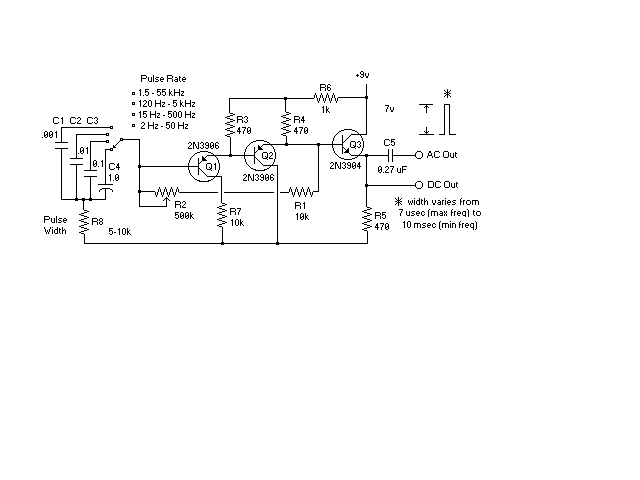

Pulse Generator Circuit

Telecommunications Test Set

Simpson Model 385 Meter

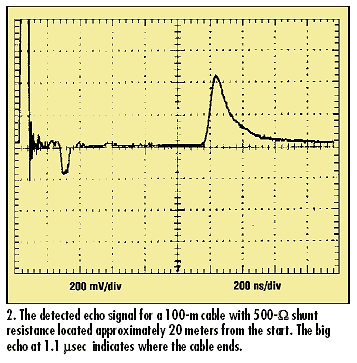

Cable Reflection Tester

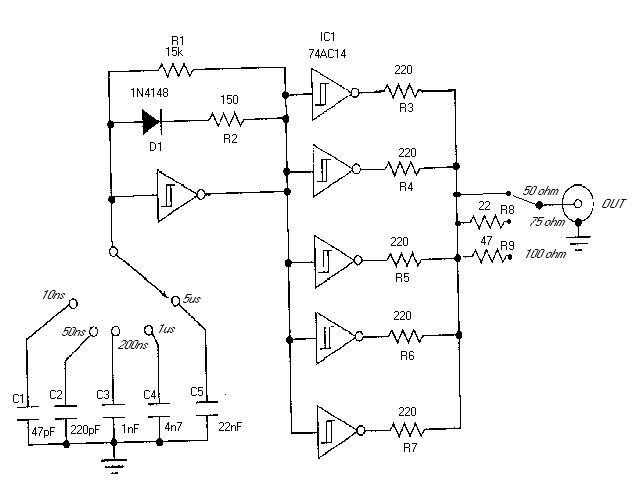

TDR Signal Source

TDR Connections

TDR Scope Adapter

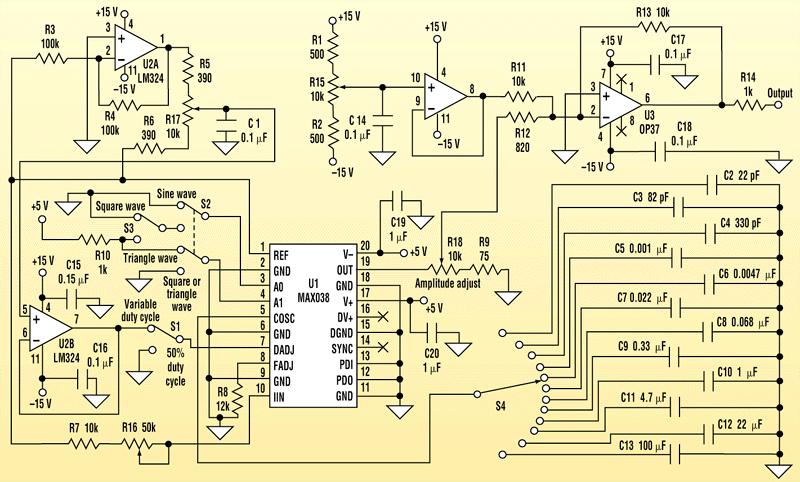

Waveform Generators

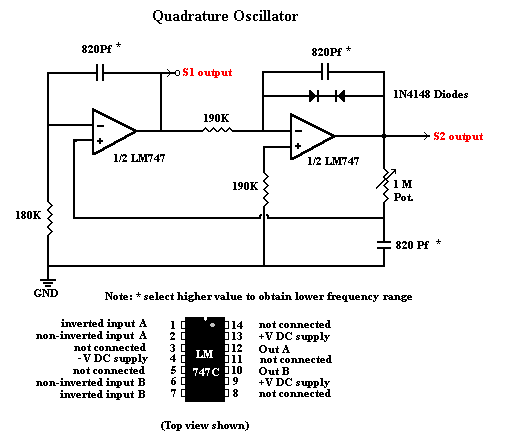

Quadrature Oscillator

Voltage-Controlled Oscillator

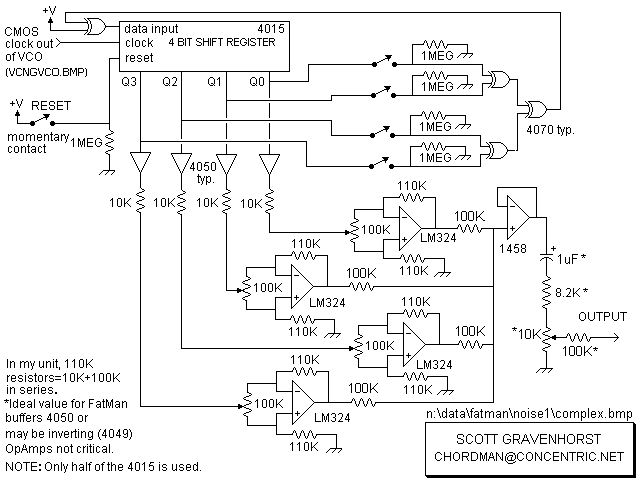

Noise Generator
