H-Bridge Motor Driver Examples

These are mostly partial drawings, done primarily for reference.

• H-Bridge Example 1
• H-Bridge Example 2
• H-Bridge Example 3
• H-Bridge Example 4
• H-Bridge Example 5
• H-Bridge Example 6
• H-Bridge Example 7
• H-Bridge Example 8
• H-Bridge Example 9

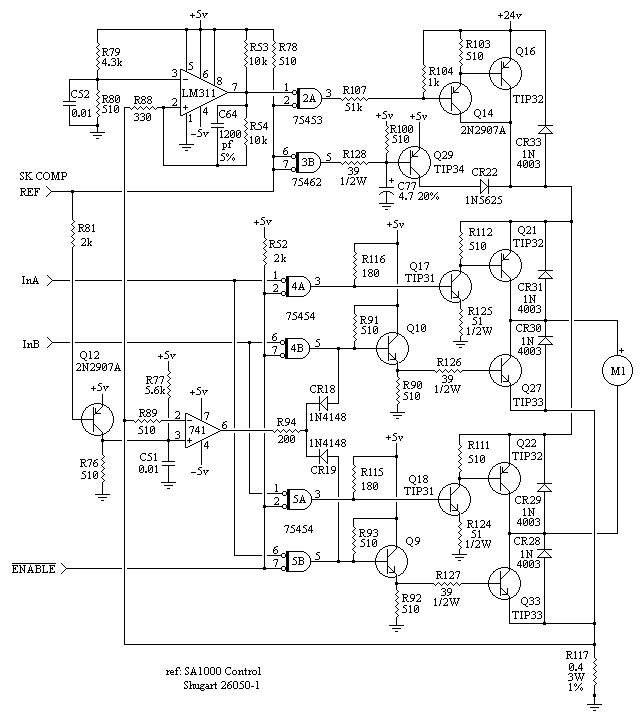

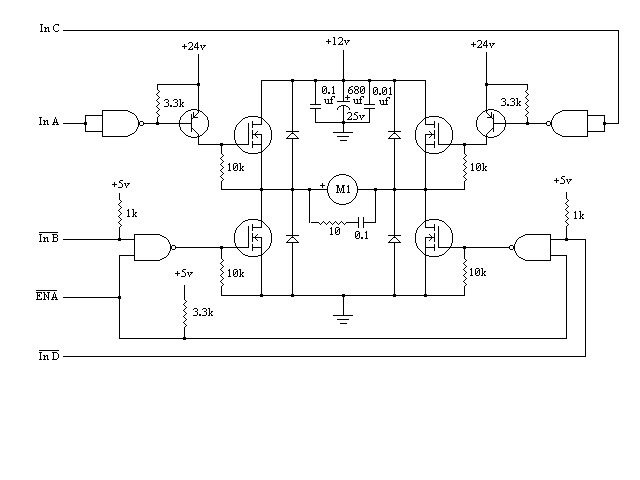

H-Bridge Example 1

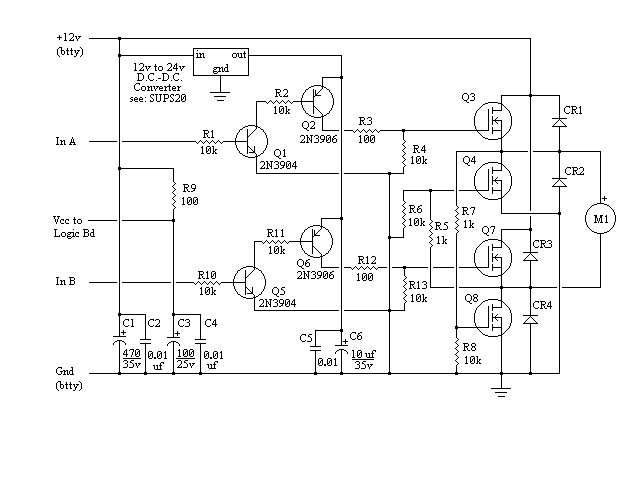

H-Bridge Example 2

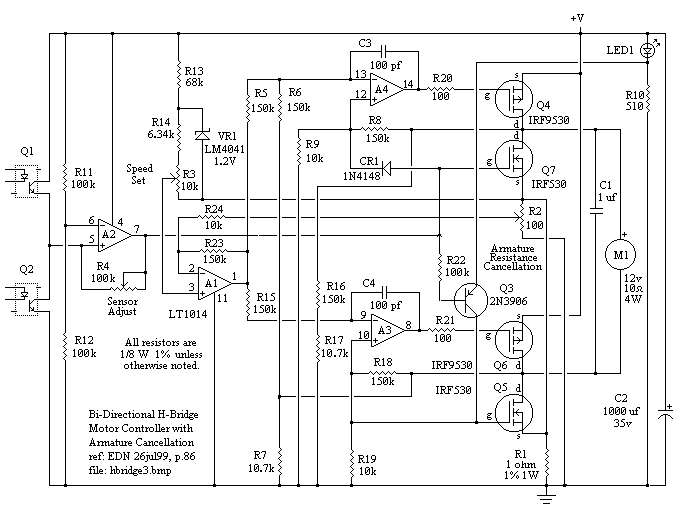

H-Bridge Example 3

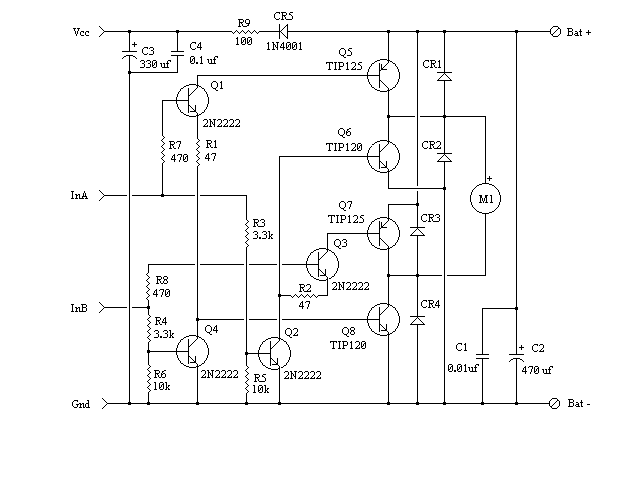

H-Bridge Example 4

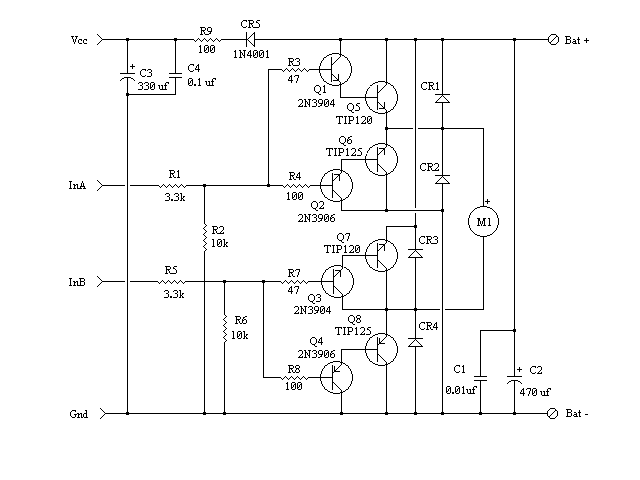

H-Bridge Example 5

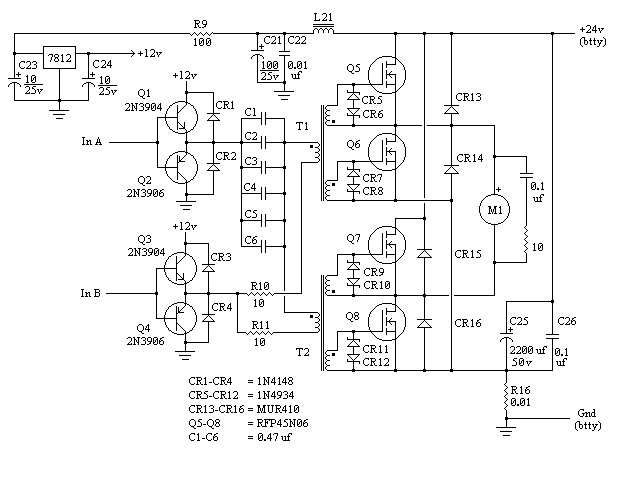

H-Bridge Example 6

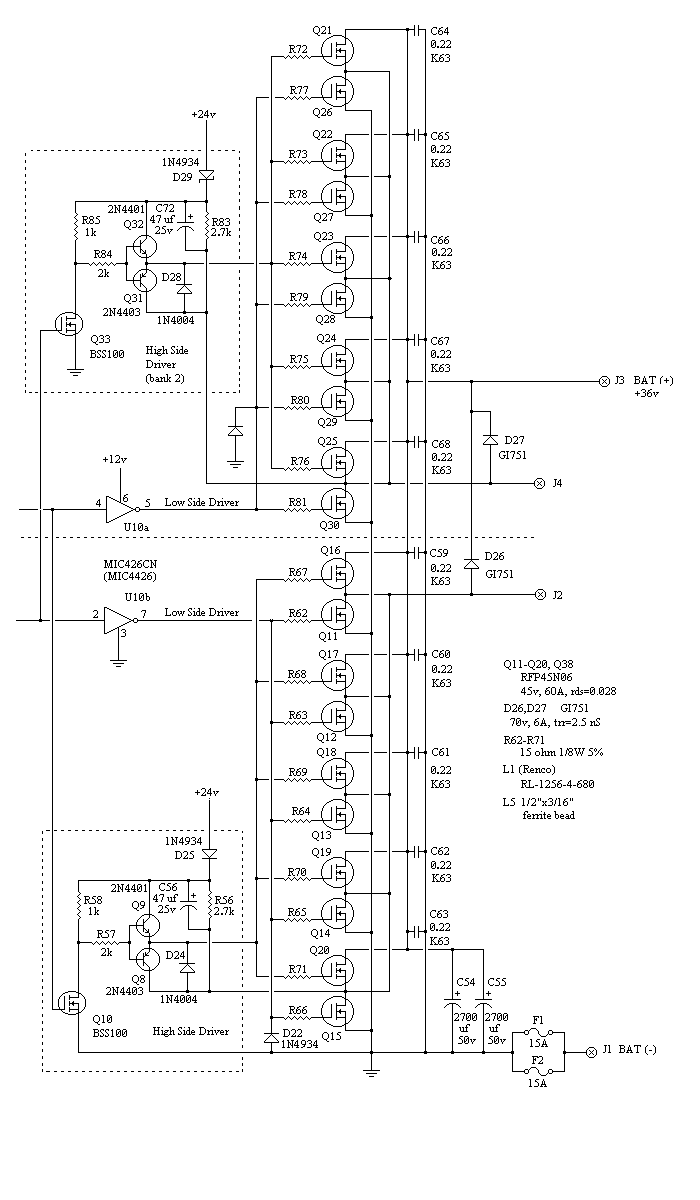

H-Bridge Example 7

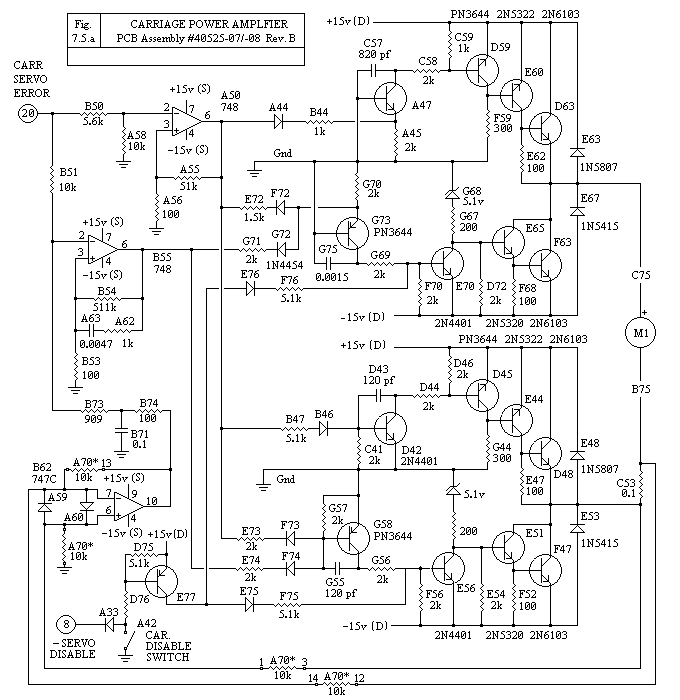

H-Bridge Example 8

H-Bridge Example 9

---
