H-Bridge Motor Driver Examples pg.2

These are other folk's drawings, captured for reference. If one is yours, and I have missed the attribution (which is likely, since I downloaded these for reference with no intention of re-posting them), send me an email and I will gladly credit and provide a link to the original, if it still exists.

FET Drivers:

• H-Bridge Example 11
• H-Bridge Example 12
• H-Bridge Example 13
• H-Bridge Example 14
• H-Bridge Example 15
• H-Bridge Example 16
• H-Bridge Example 17
• H-Bridge Example 18
• H-Bridge Example 19
• H-Bridge Example 20
• H-Bridge Example 21
• H-Bridge Example 22

Transistor Drivers:

• H-Bridge Example 23
• H-Bridge Example 24
• H-Bridge Example 25
• H-Bridge Example 26
• H-Bridge Example 27
• H-Bridge Example 28
• H-Bridge Example 29

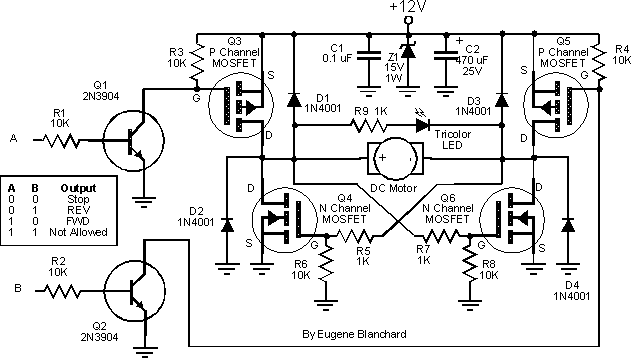

H-Bridge Example 11

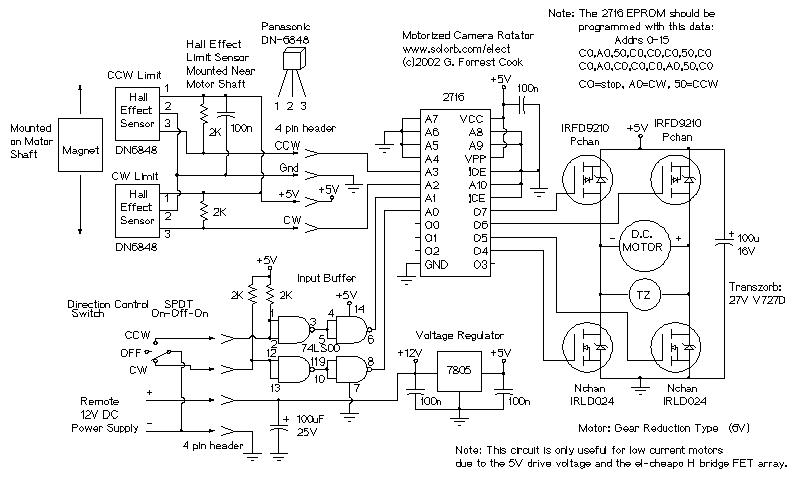

H-Bridge Example 12

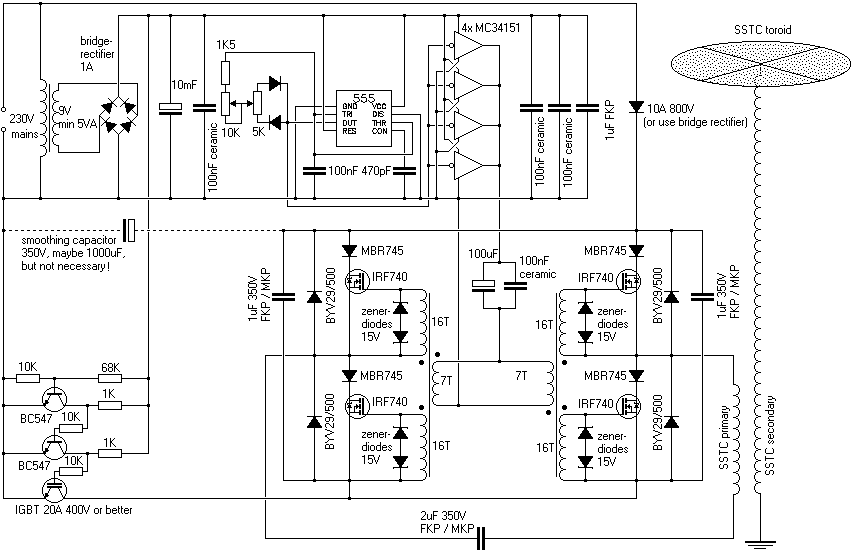

H-Bridge Example 13

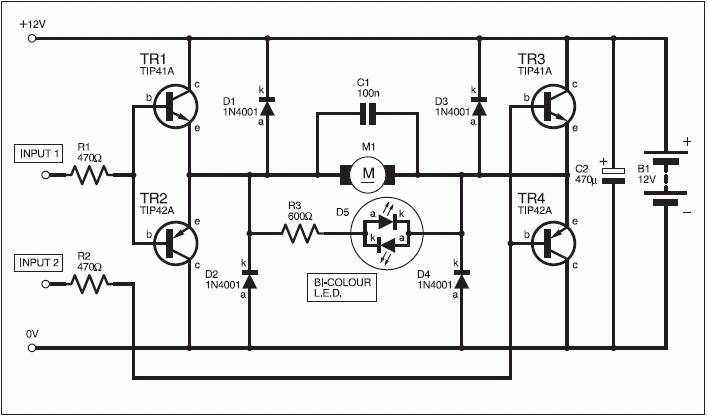

H-Bridge Example 14

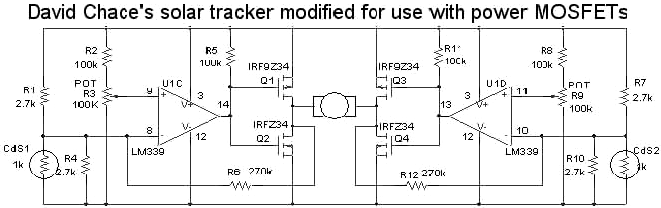

H-Bridge Example 15

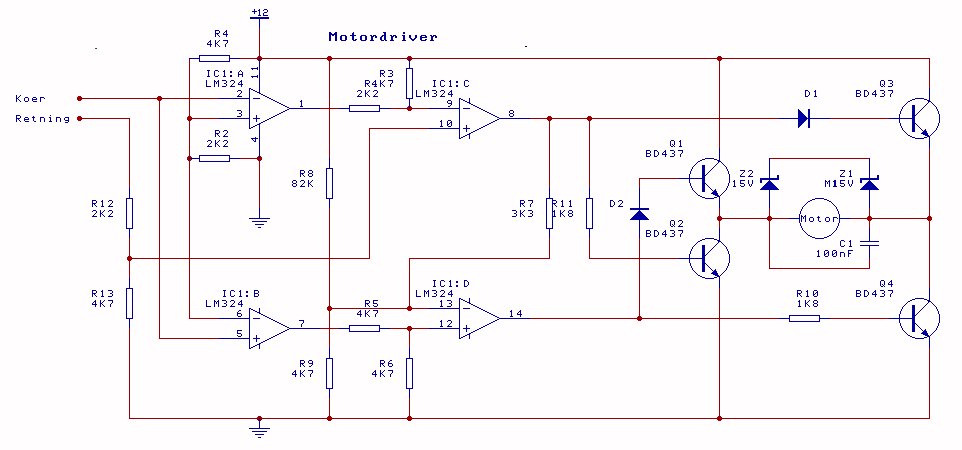

H-Bridge Example 16

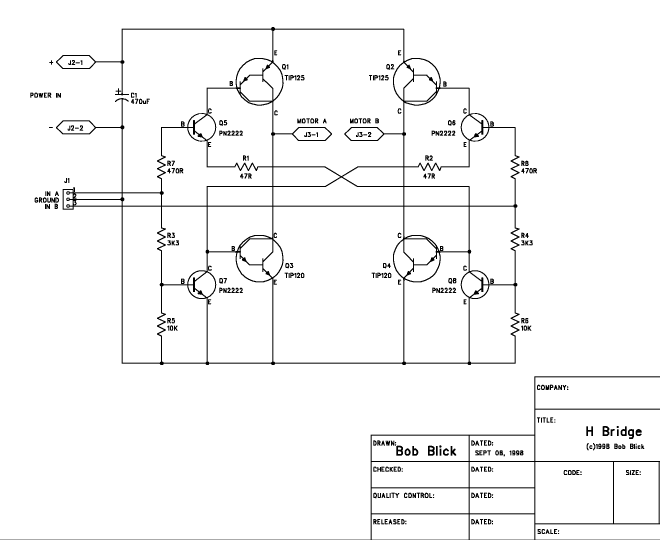

H-Bridge Example 17

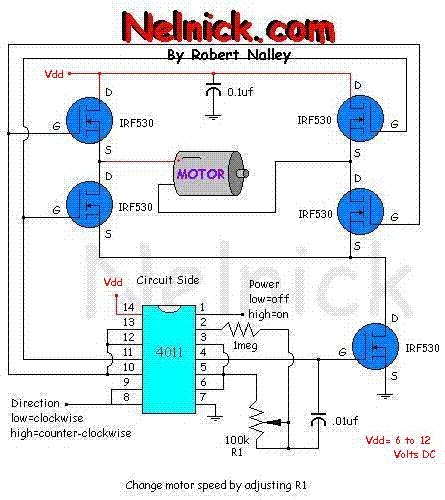

H-Bridge Example 18

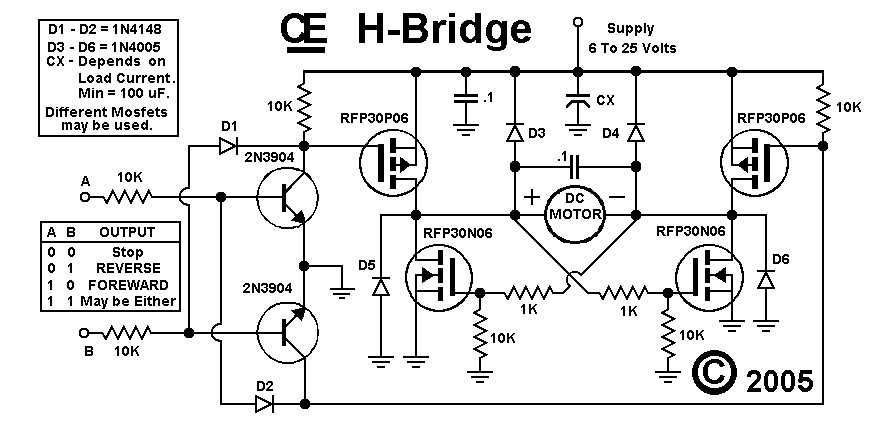

H-Bridge Example 19

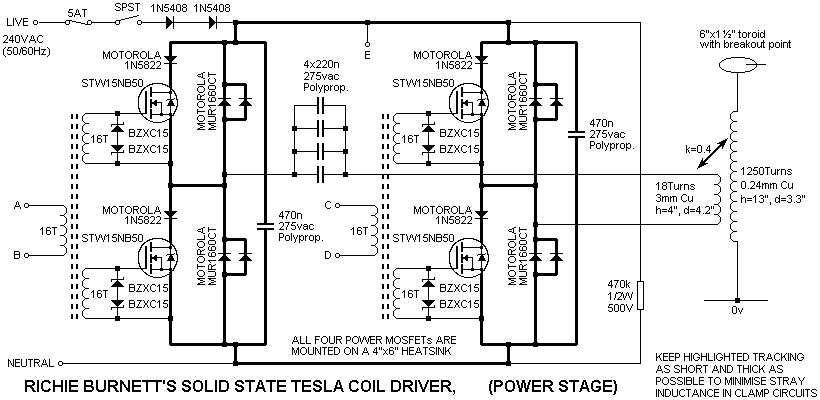

H-Bridge Example 21

H-Bridge Example 22

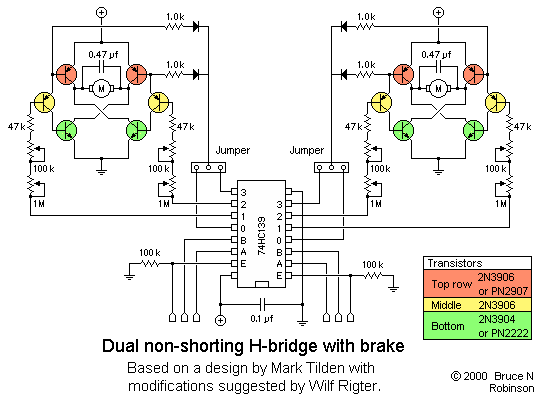

H-Bridge Example 23

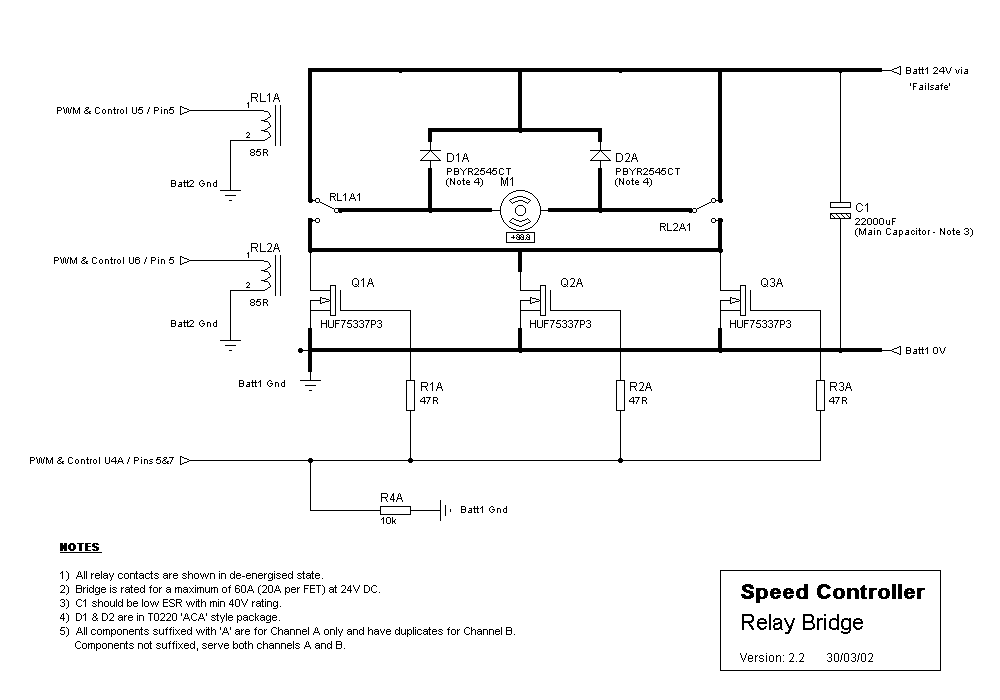

H-Bridge Example 24

H-Bridge Example 25

H-Bridge Example 26

H-Bridge Example 26

---
