Half-Bridge Motor Driver Examples
These are mostly partial drawings, done primarily for reference.

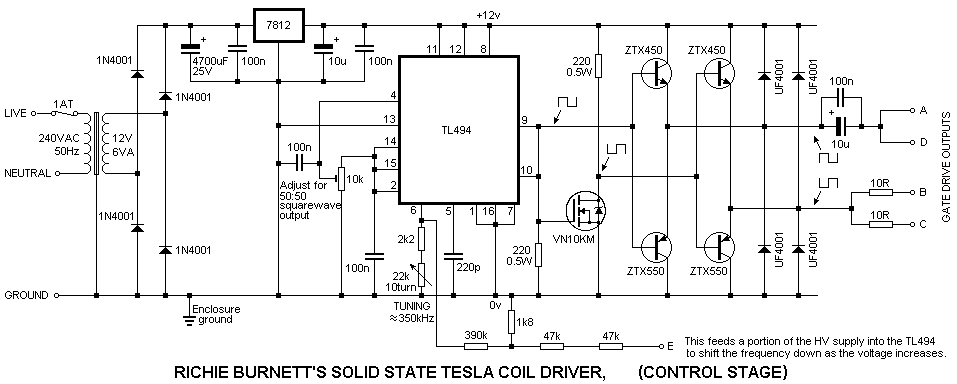

Half-Bridge Example 1

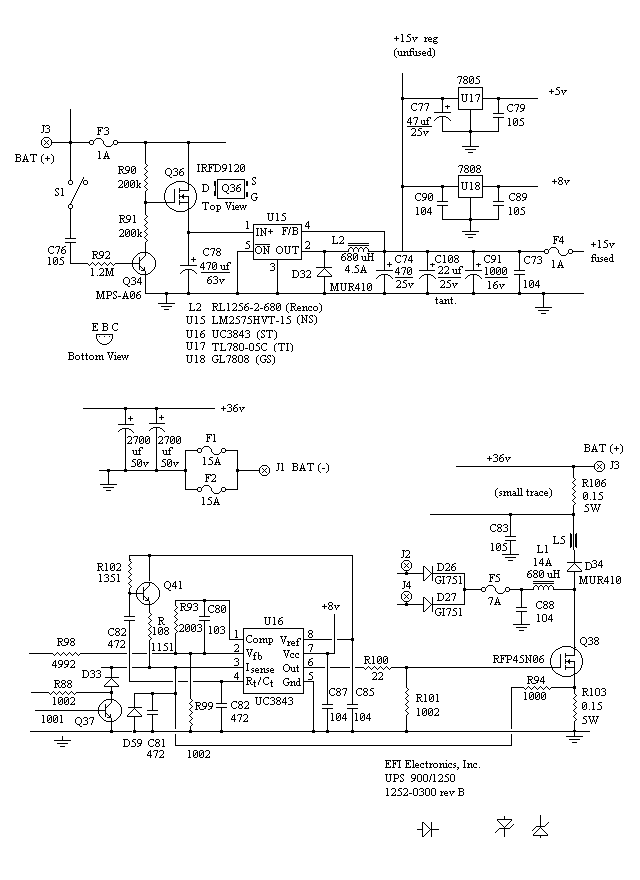

Half-Bridge Example 2

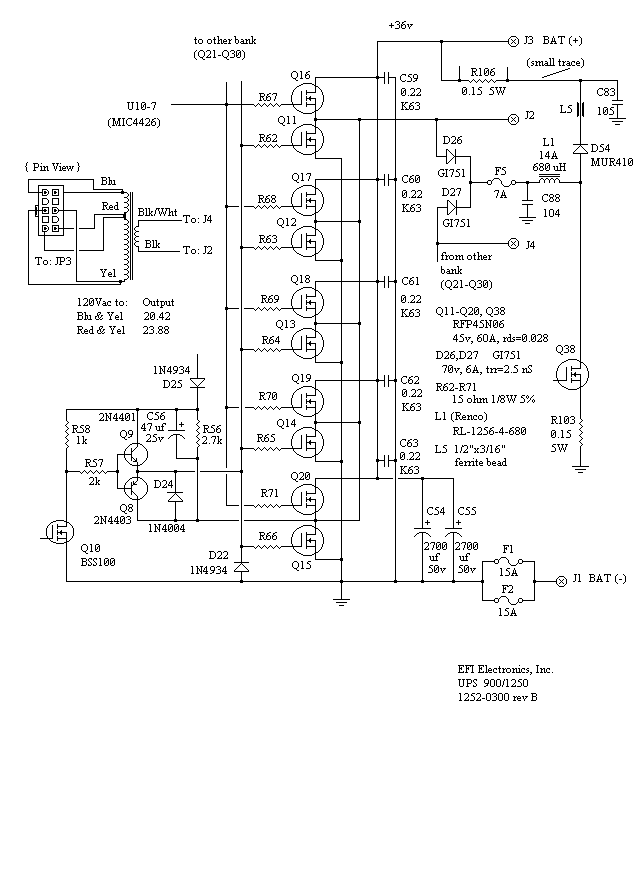

Half-Bridge Example 3

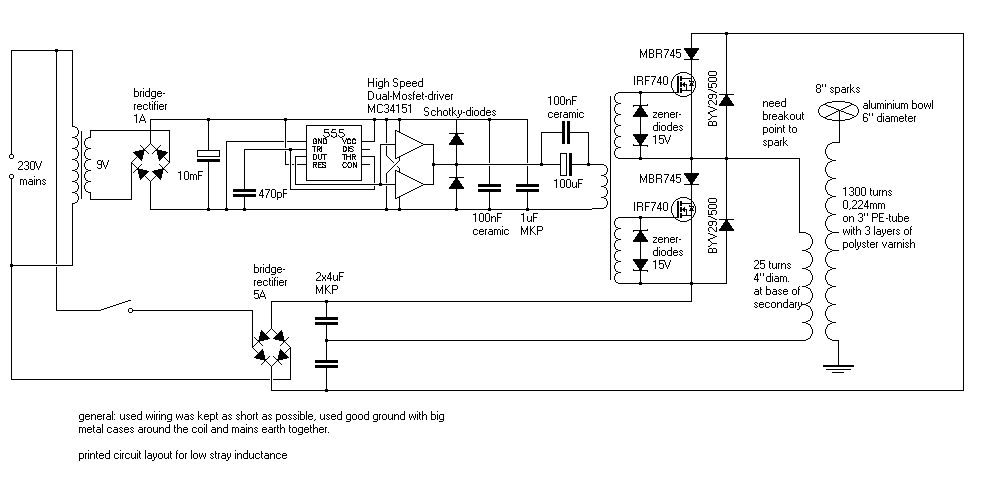

Half-Bridge Example 4

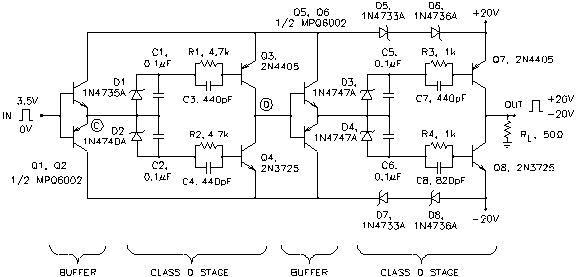

Half-Bridge Example 5

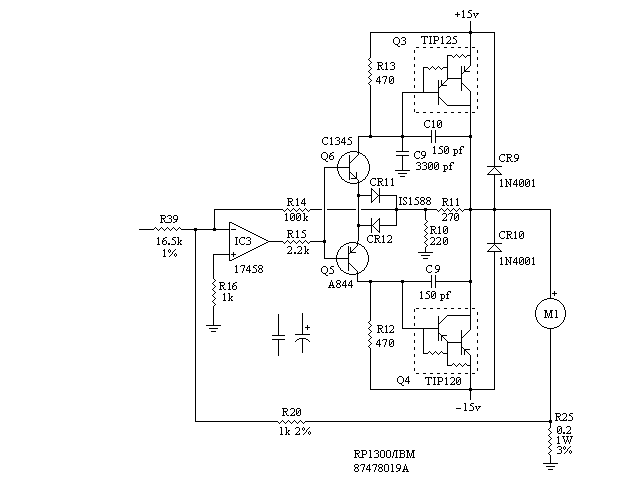

Half-Bridge Example 6

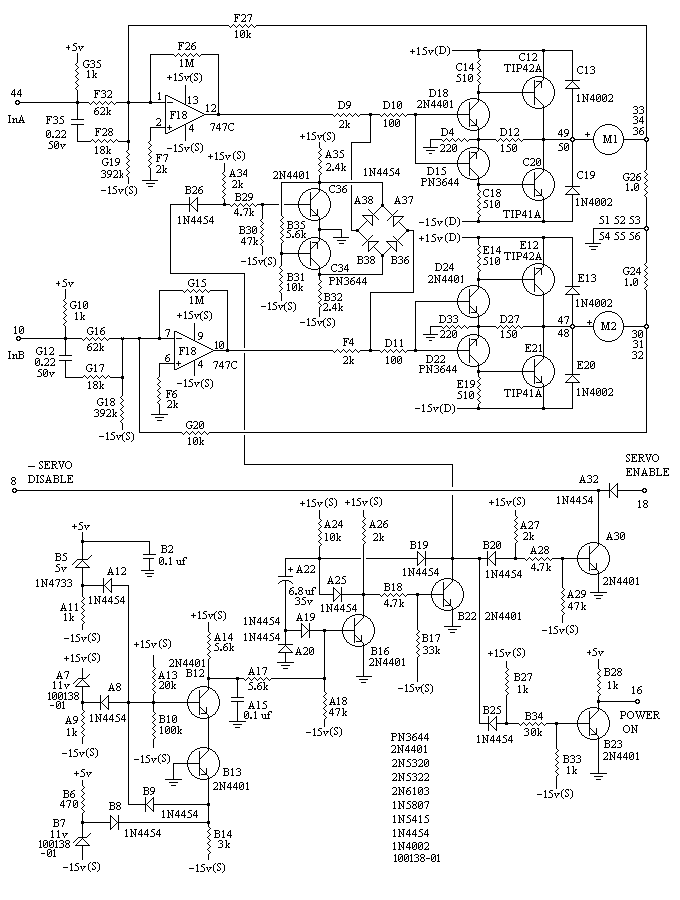

Half-Bridge Example 7
Half-Bridge Example 8
Half-Bridge Example 9
