LED and Display Circuits

These are mostly partial drawings, done primarily for reference.

4-digit 7-segment Readout Assembly

DS101

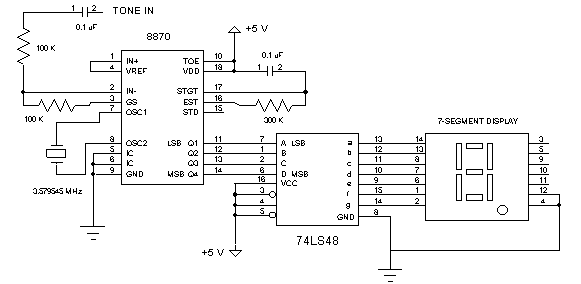

7-segment Display Driver Example

DS102

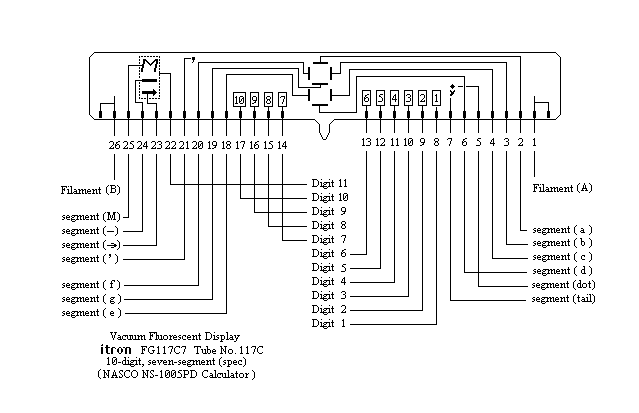

Vacuum Fluorescent Display FG117C7

DS103

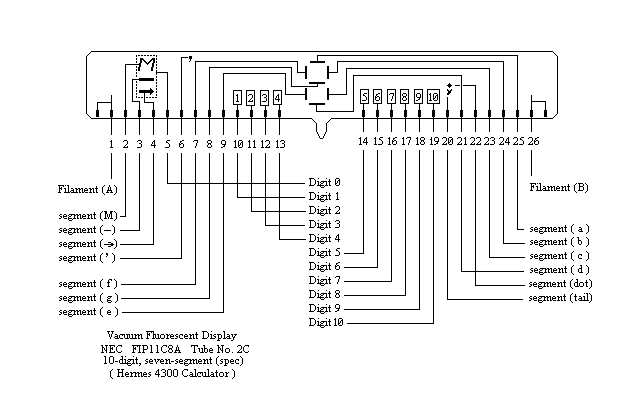

Vacuum Fluorescent Display FIP11C8

DS104

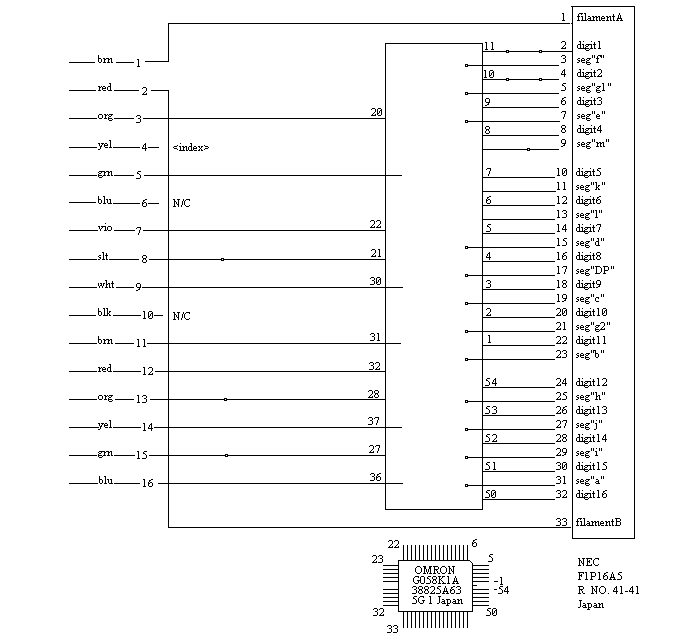

Vacuum Fluorescent Display F1P16A5

DS105

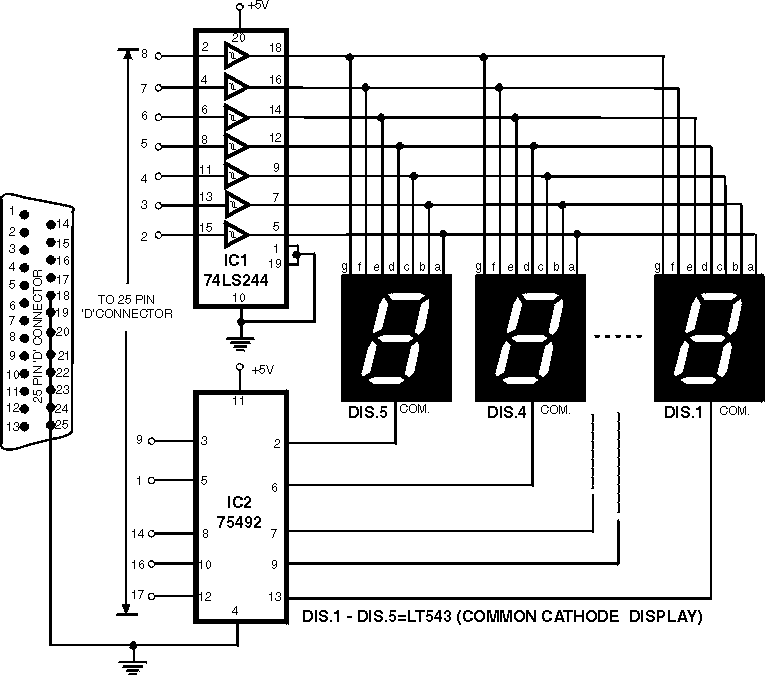

LED Display Panel and Drivers

DS106

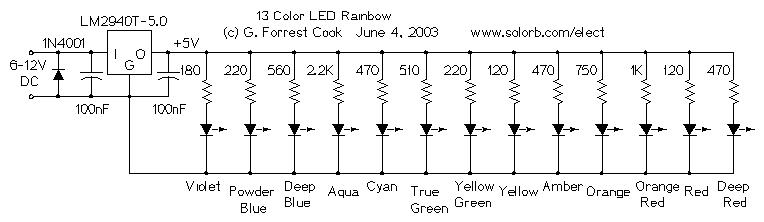

LED Rainbow

DS107

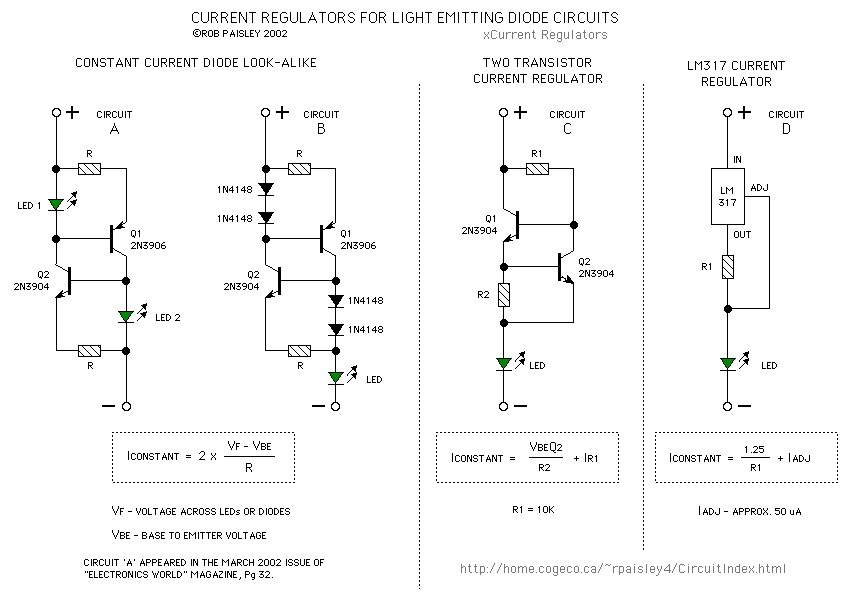

Current Regulators for LED's

DS108

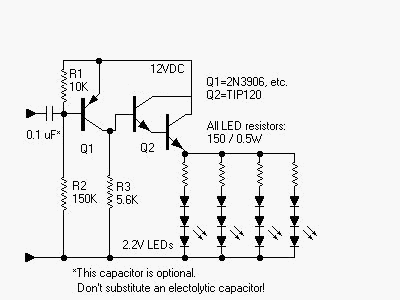

Series-Parallel LED Driver

DS109

LED Laser Driver

DS110

7-segment Display Driver

DS111

7-segment Display Driver

DS112
