LED and Laser Drivers
These are partial drawings, primarily for reference.

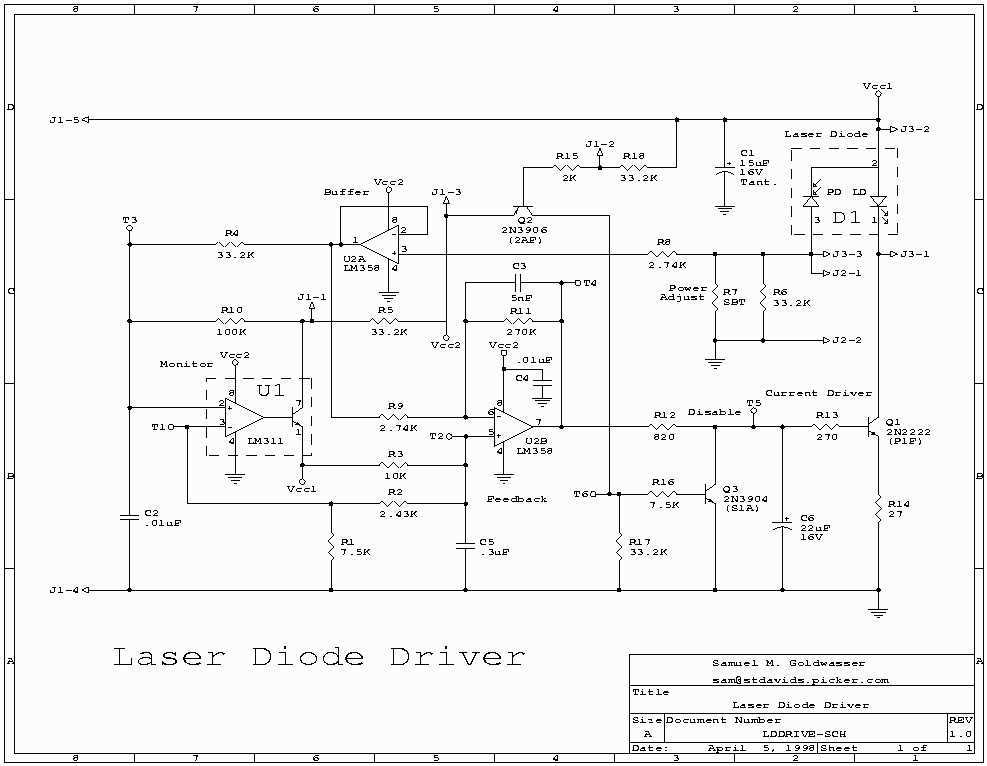

Laser Diode Driver
Laser Module Driver

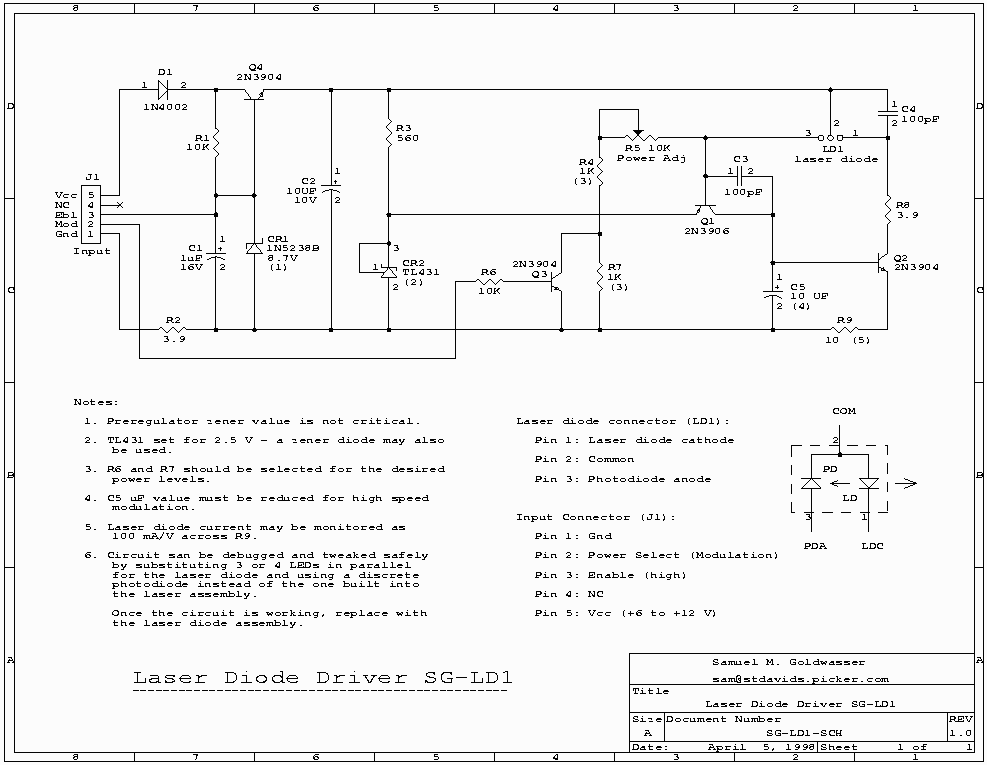

Chain Laser Diode Driver

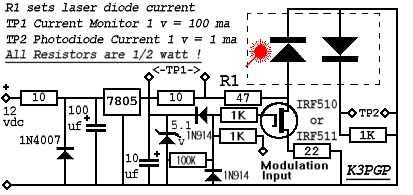

K3PGP Driver Circuit

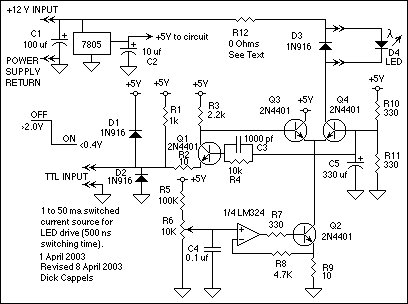

Laser Diode Current Source

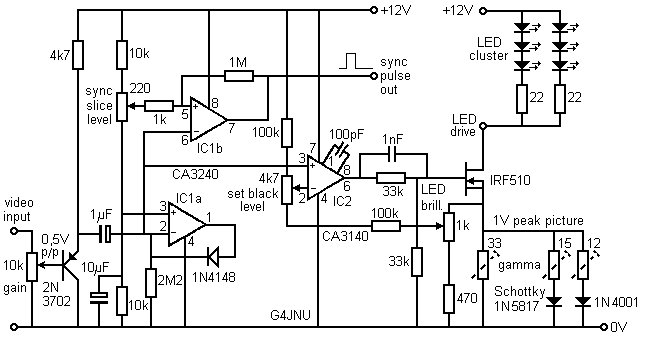

LED Cluster Driver Circuit

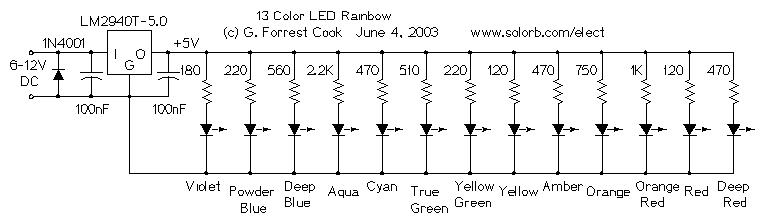

LED Rainbow
LED Current Regulators

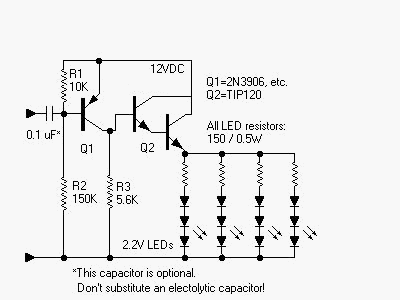

Multiple LED Driver
LED Dimmer Circuit
