D.C. Motor Drivers (2)
A collection of variable speed D.C. motor driver circuits.
Motor Speed Control with Brake

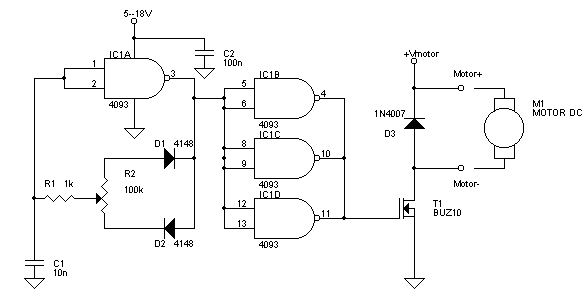

PWM Generator/Driver

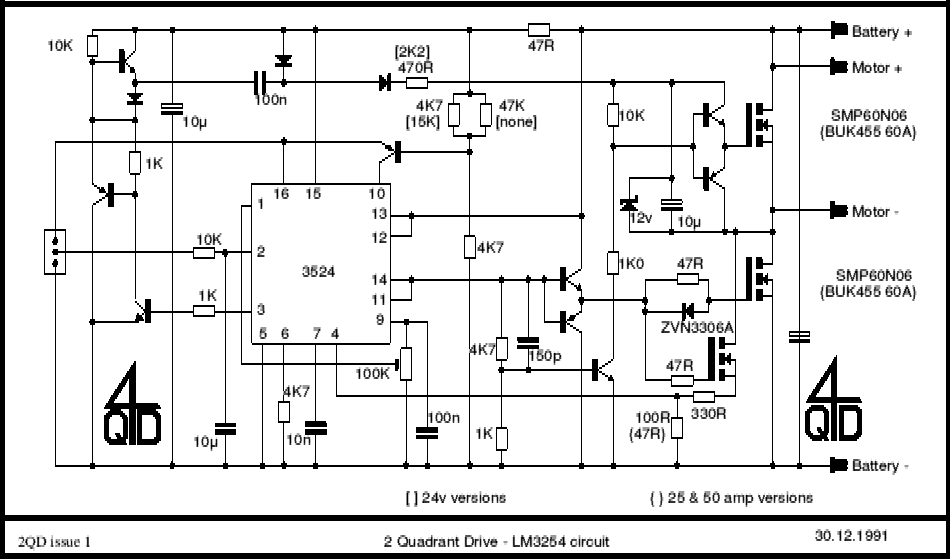

SG3524-based PWM Driver
SG3525-based PWM Driver

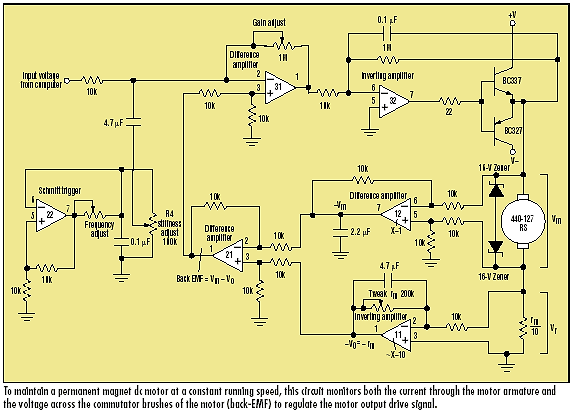

Permanent Magnet Motor Driver

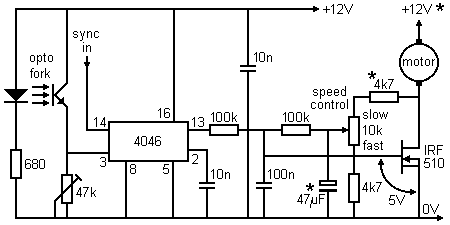

Driver with Speed Control

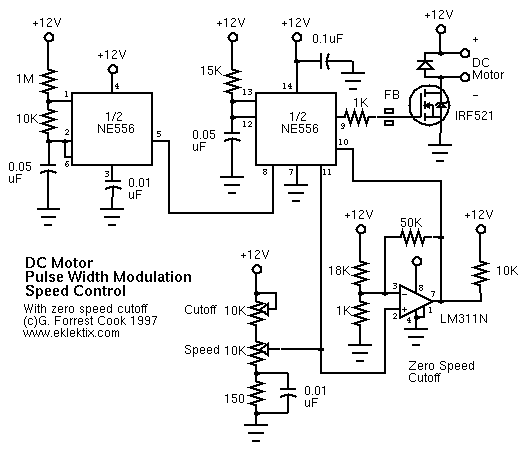

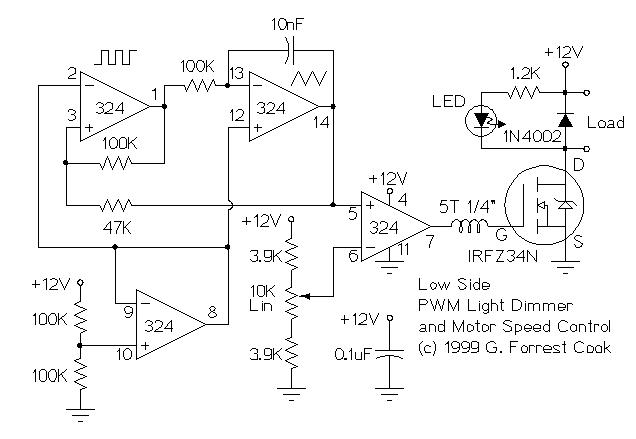

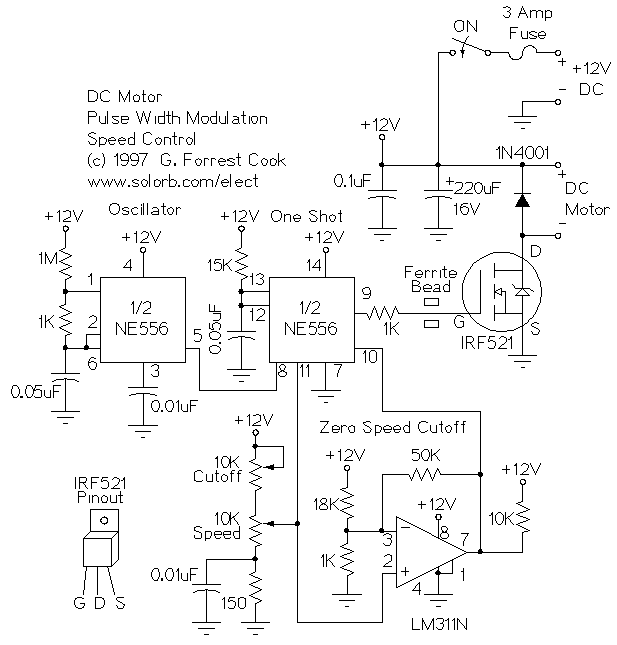

PWM Drivers by Forrest Cook
Adjustable D.C. Motor Driver

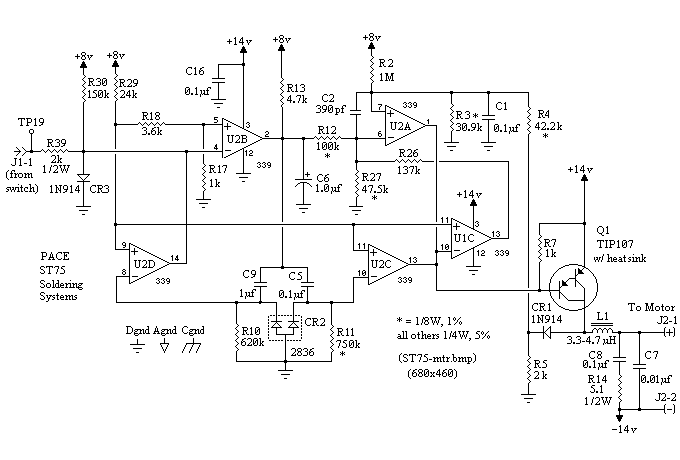

Pace ST75 Motor Driver
