Relay Driver Circuits
These are partial drawings, done primarily for reference.

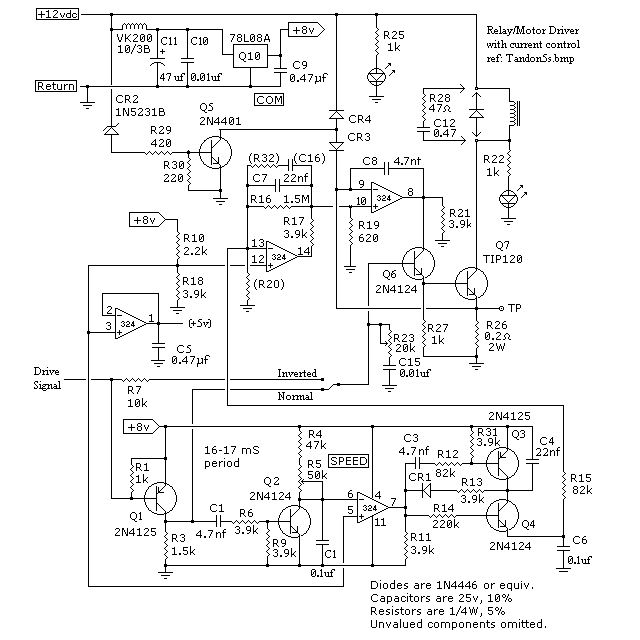

Tandon Relay/Motor Driver

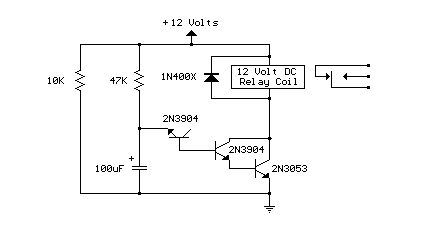

12v Relay Driver with Delay

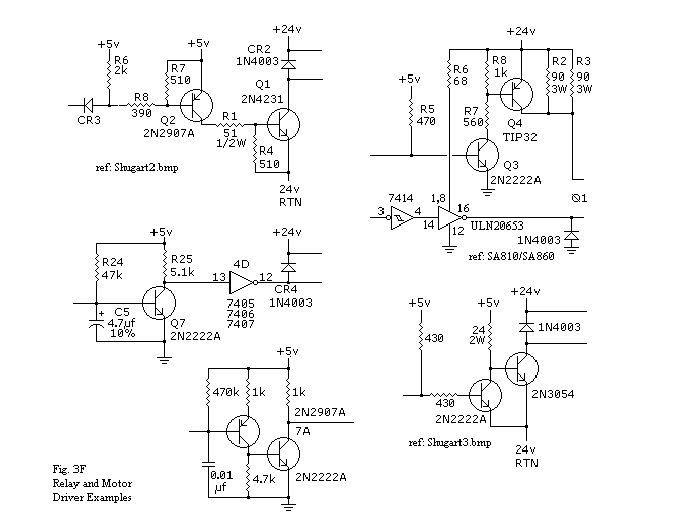

Relay Driver Examples

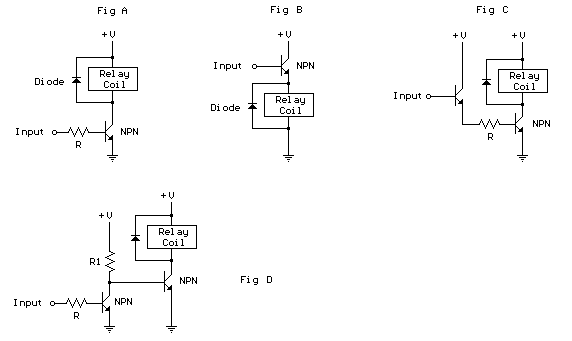

Simple Transistor Relay Drivers

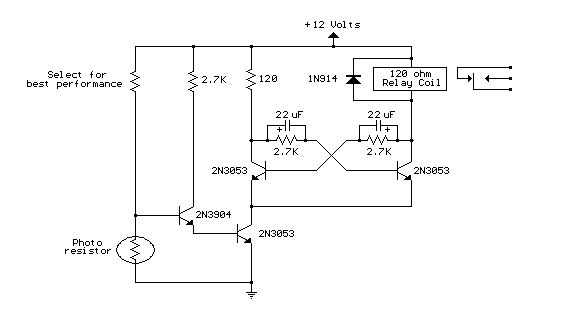

Light-activated Relay Drivers

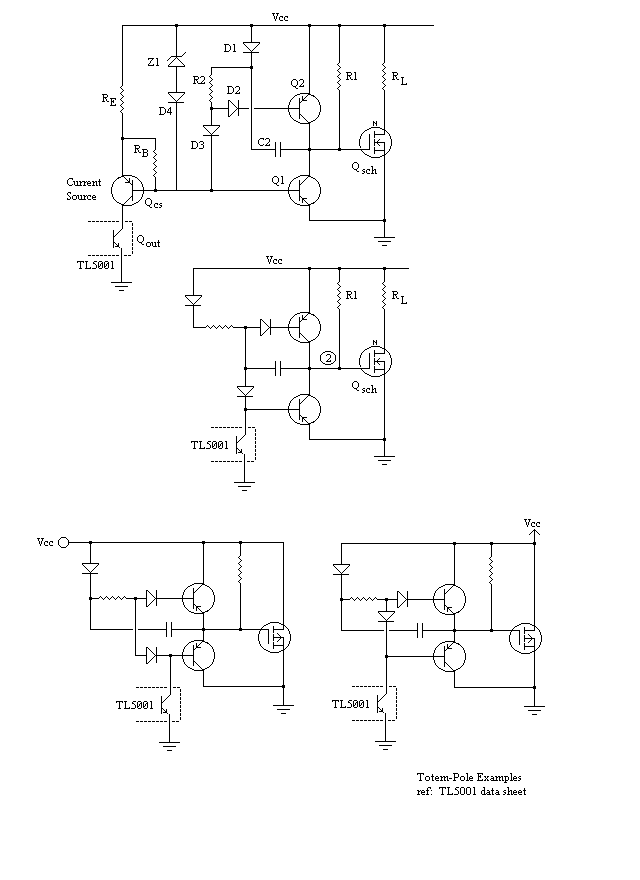

Totem Pole Driver Examples
12v Relay Flasher
