High Voltage Transformer Drivers
These are partial drawings, primarily for reference.
Ignition Coil Driver

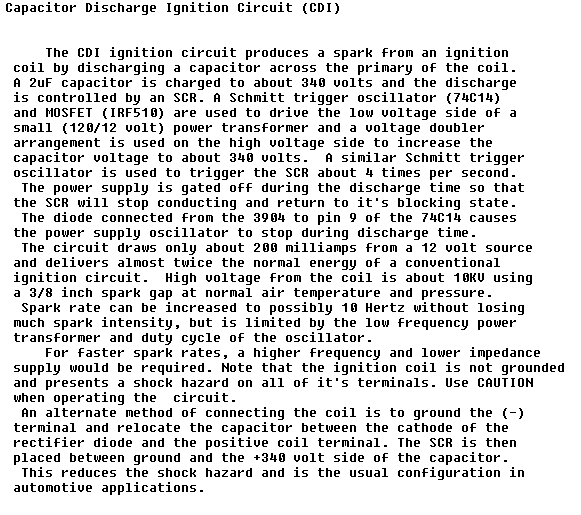

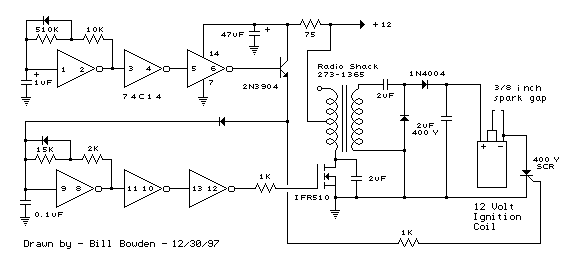

CDI Driver with SCR's

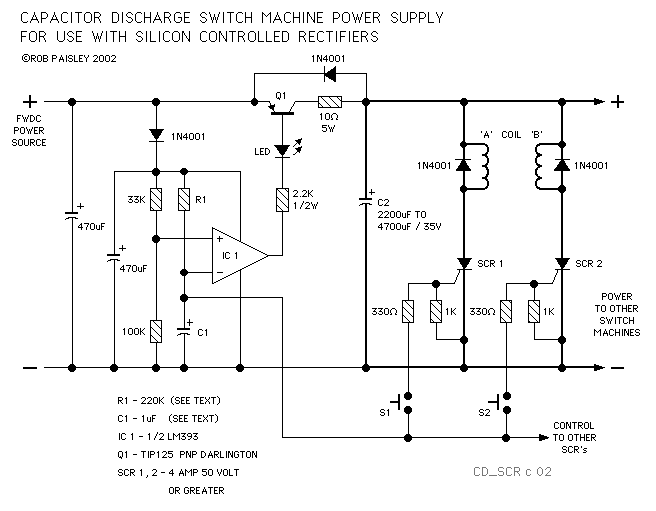

Coil Gun Driver

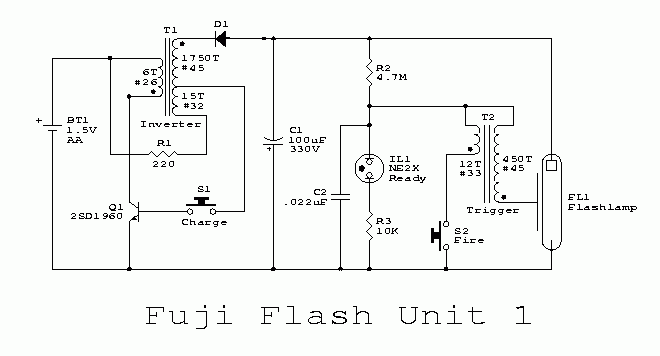

Fuji Flash Unit (1)

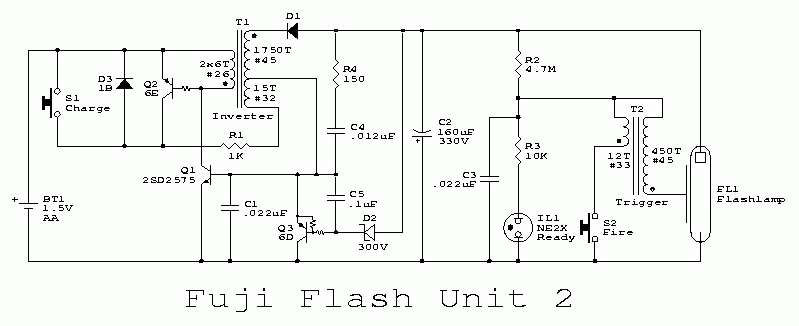

Fuji Flash Unit (2)

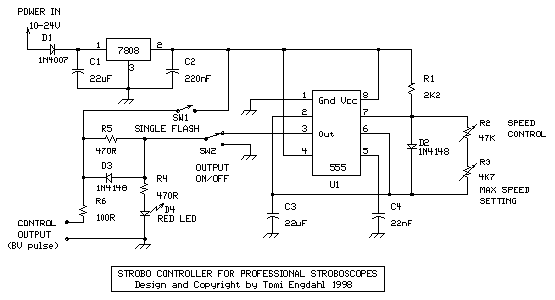

Variable Speed Stroboscope

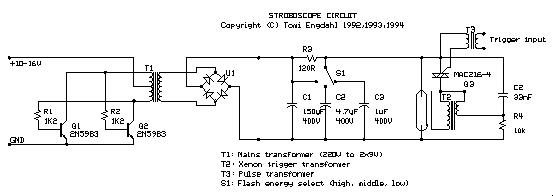

Simple Stroboscope Circuit

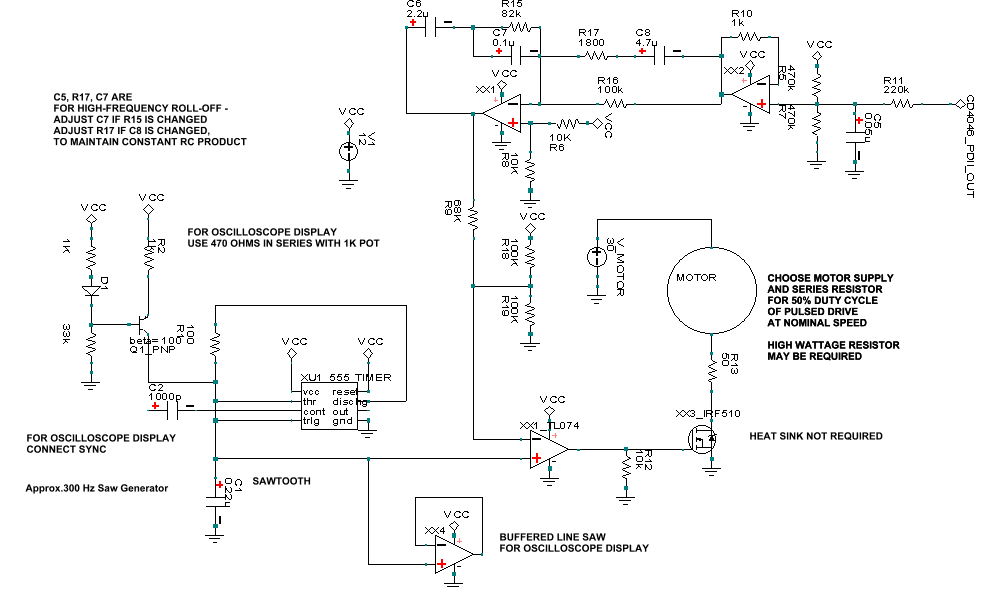

Scope Sync Driver
