Transistor Pin-outs and Outlines

These are primarily for reference.

• TO-92 Pinouts
• LM334, TIP42, TL431
• LM350 Pinouts
• Semiconductor Outlines/Pins 1
• Semiconductor Outlines/Pins 2
• Semiconductor Outlines/Pins 3
• Semiconductor Outlines/Pins 4
• 3-terminal Regulators
• Triacs

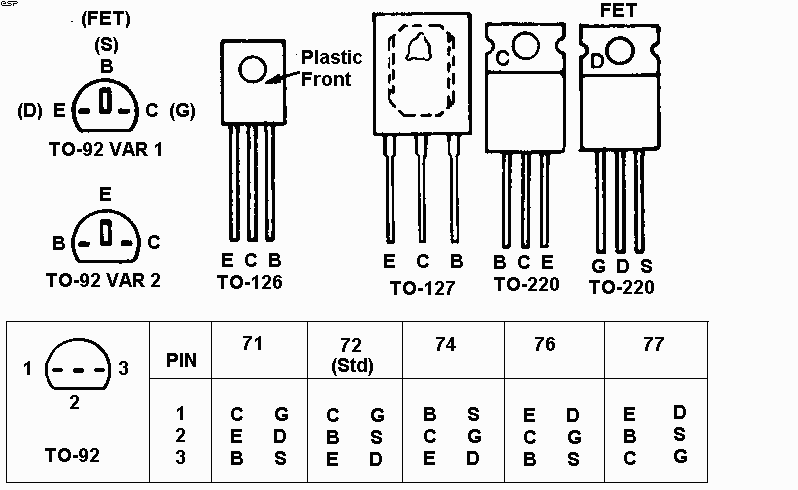

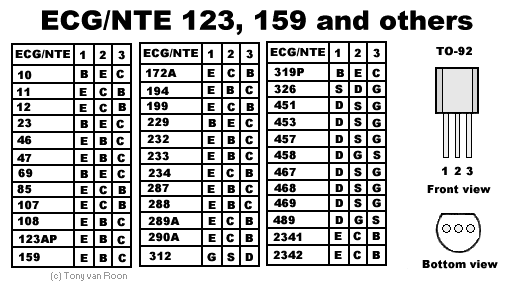

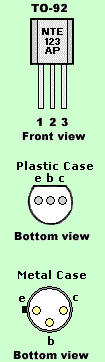

ECG/NTE TO-92

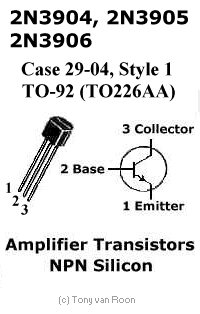

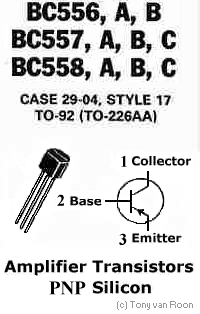

TO-92

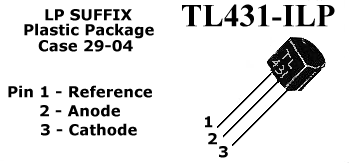

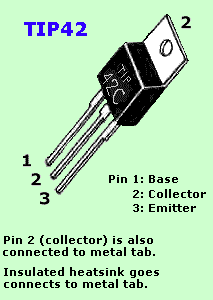

LM334, TIP42, TL431

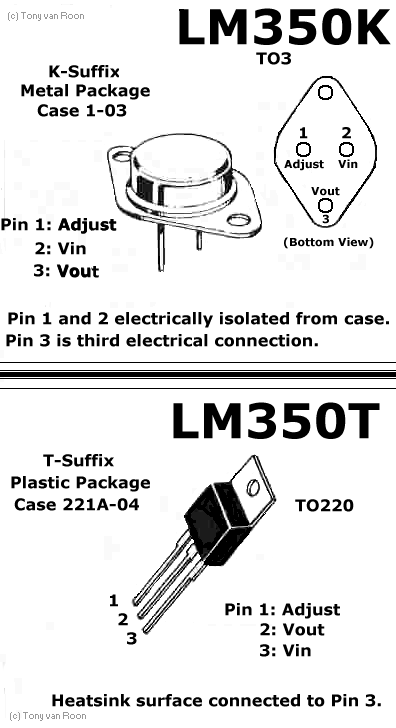

LM350

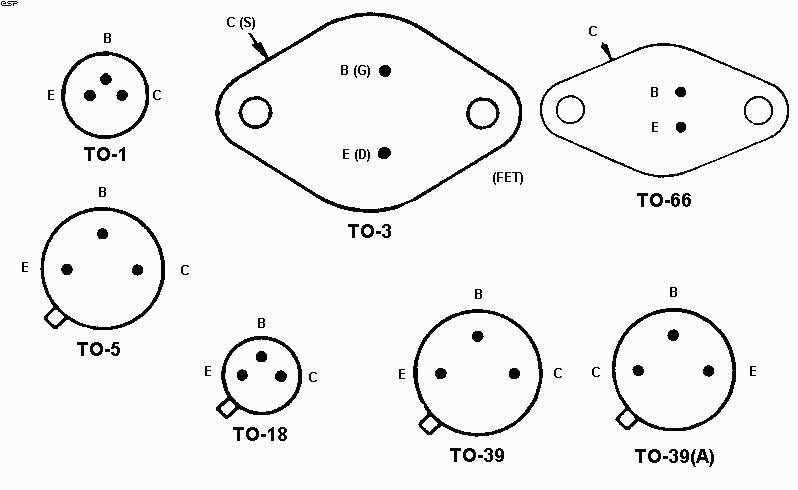

Semiconductor Outlines/Pins 1

Semiconductor Outlines/Pins 2

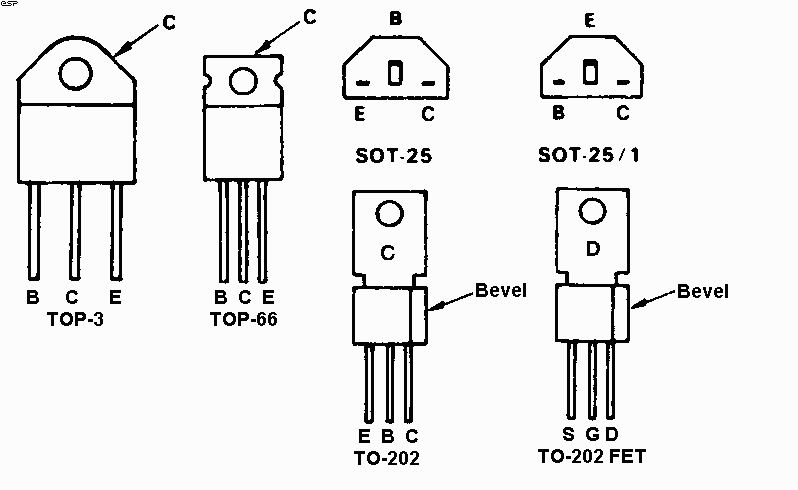

Semiconductor Outlines/Pins 3

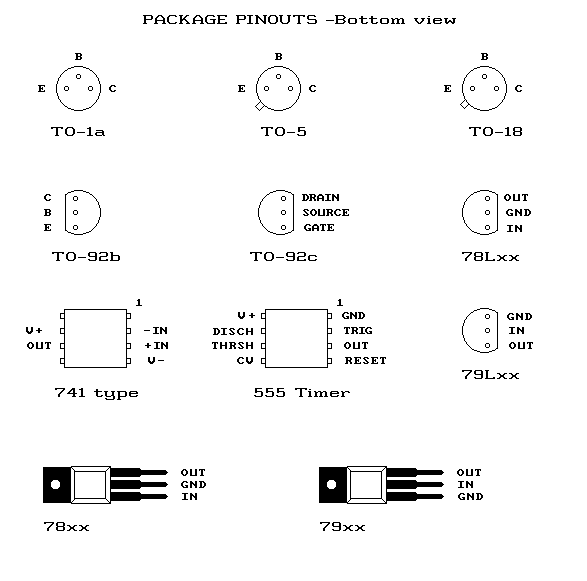

Semiconductor Outlines/Pins 4

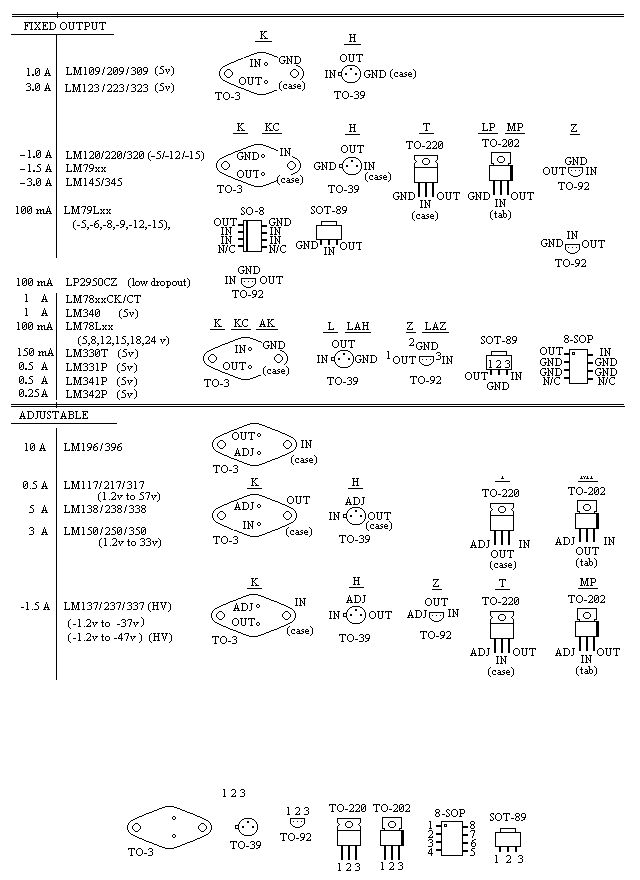

3-terminal Regulators

Triacs

---
