Serial Communications Jacks and Plugs
These are primarily for reference.
DB9/DB15/DB25
V.21/V.24 Connectors

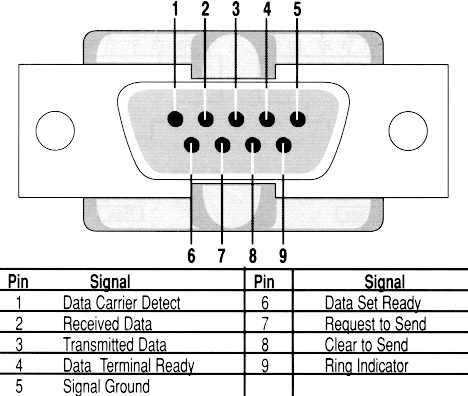

DB-9 Serial

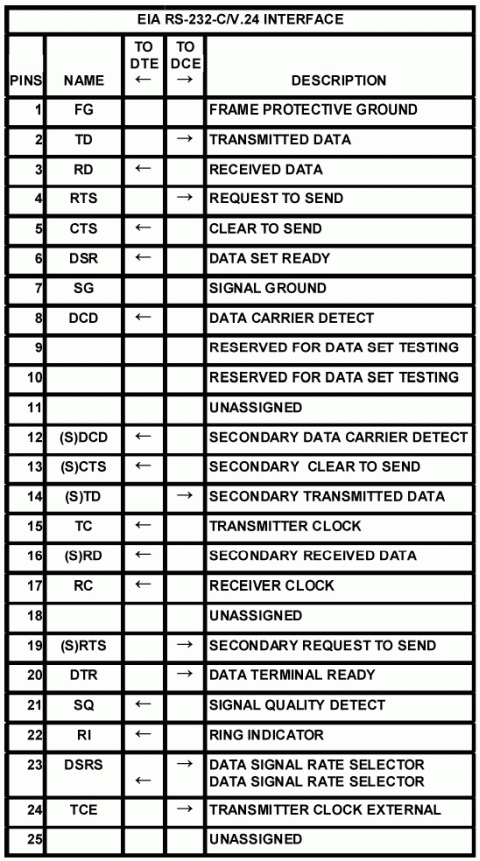

DB-25 RS-232

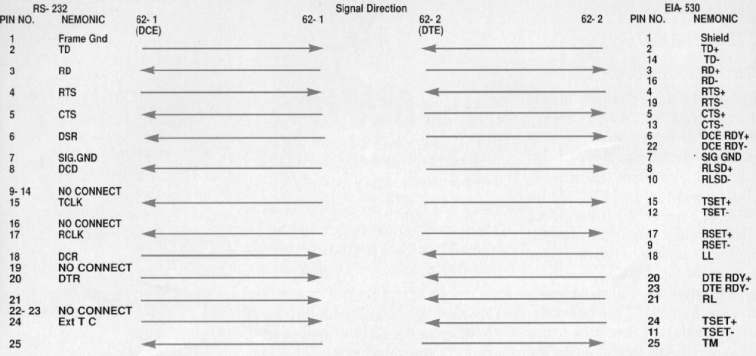

RS-232 to RS-530

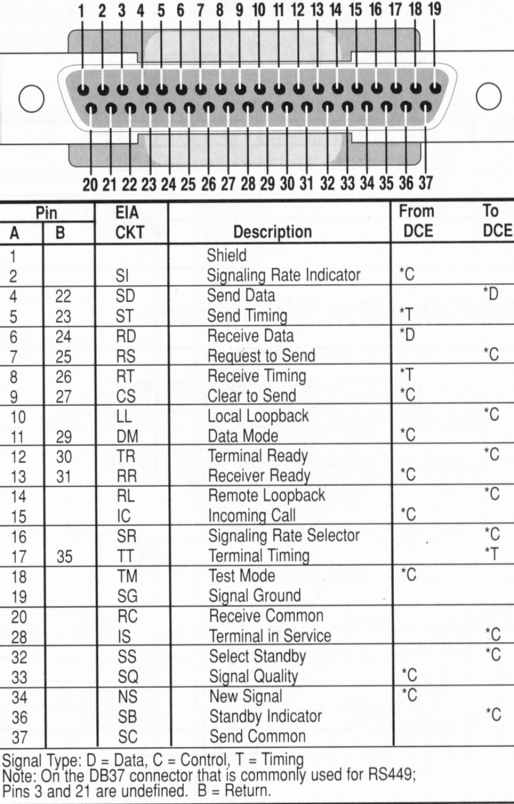

RS-449

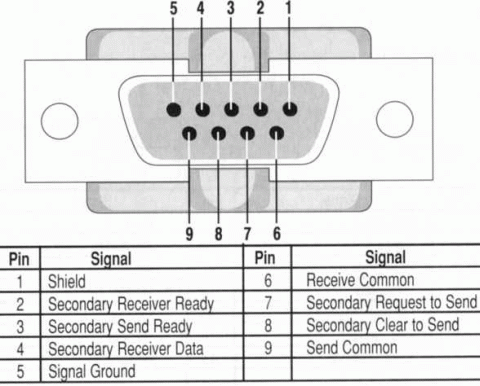

RS-449 Secondary
RS-449 Interface

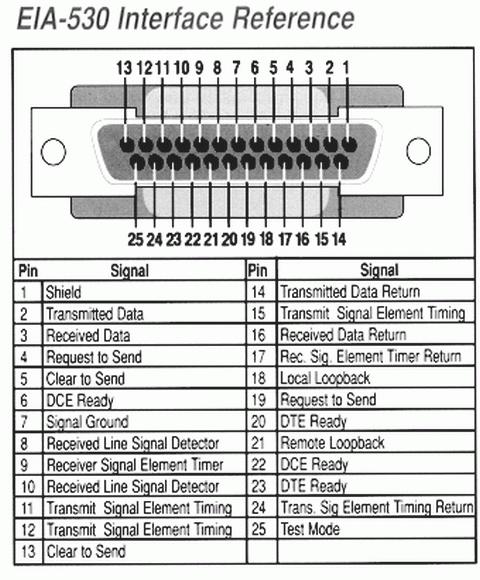

EIA530 Interface Pinout
EIA530 Interface Definitions
V.35 Connector Pin Assignments
RS-232 on 8-pin Modular
