Radio Receiver Circuits

A collection of various reference receiver circuits.

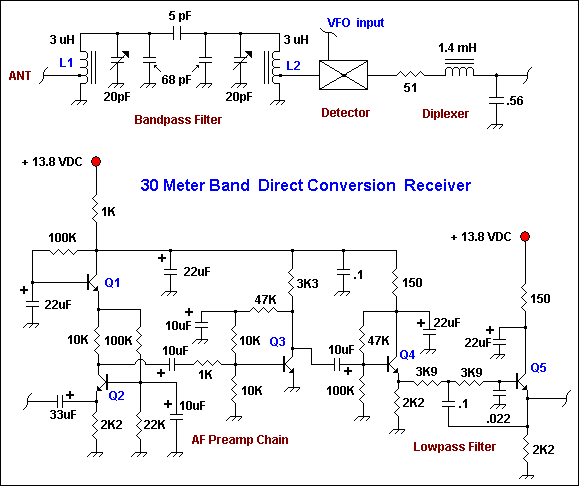

• 30M Direct Conversion RF

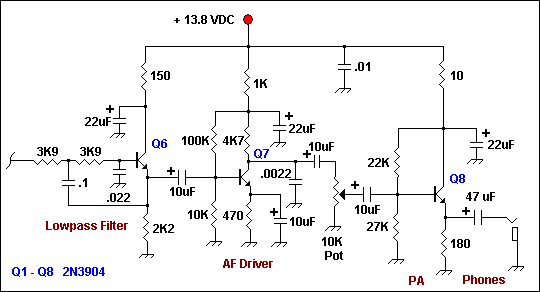

• 30M Direct Conversion Audio

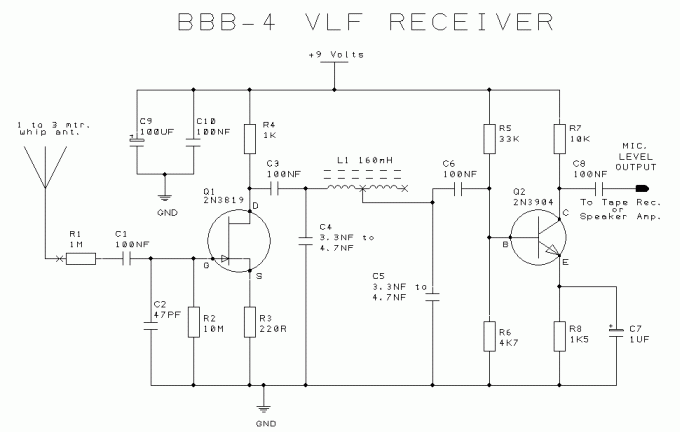

• BBB-4 VLF Receiver

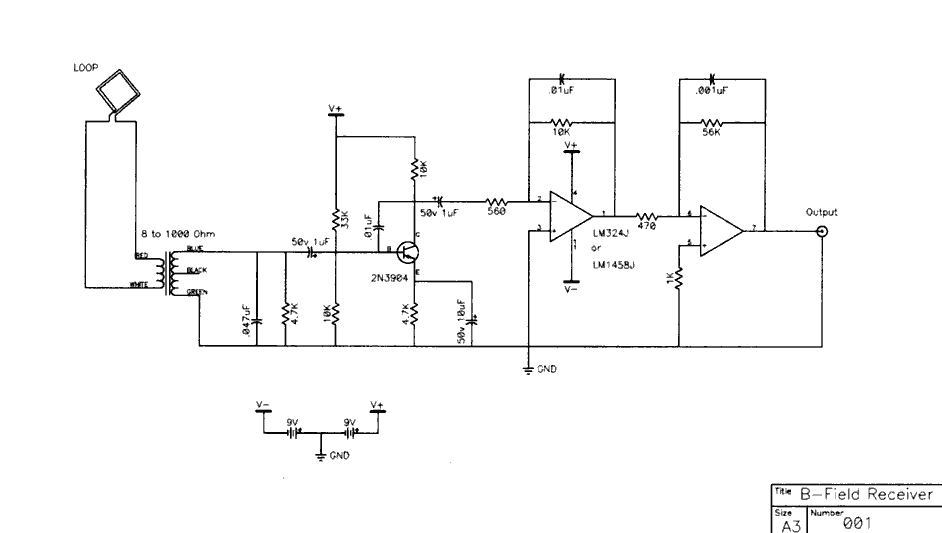

• B-Field Receiver - 1 of 2

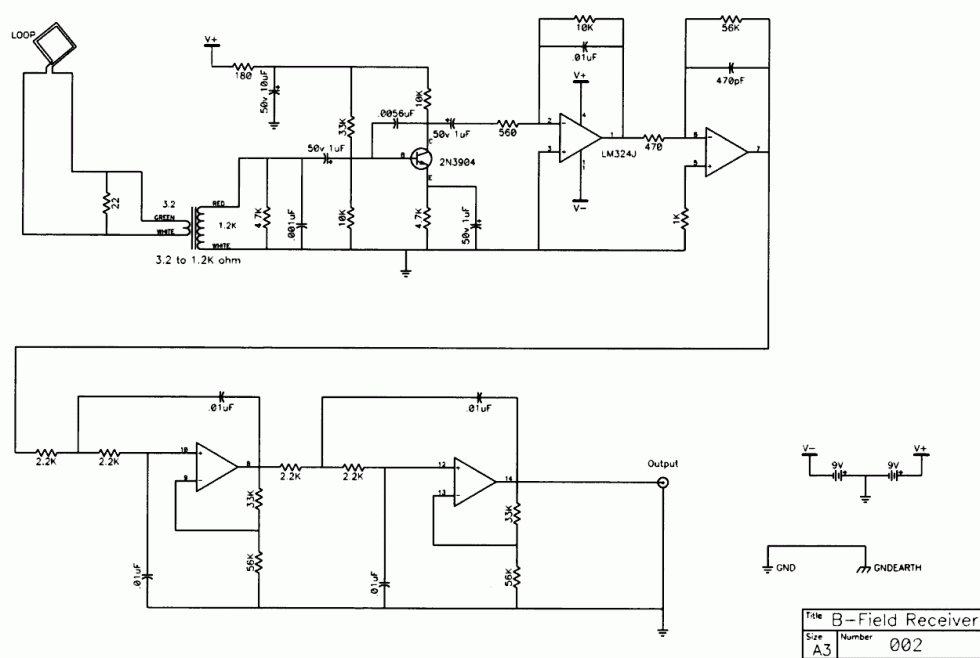

• B-Field Receiver - 2 of 2

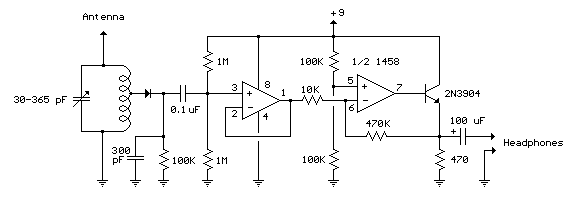

• SS Radio Receiver

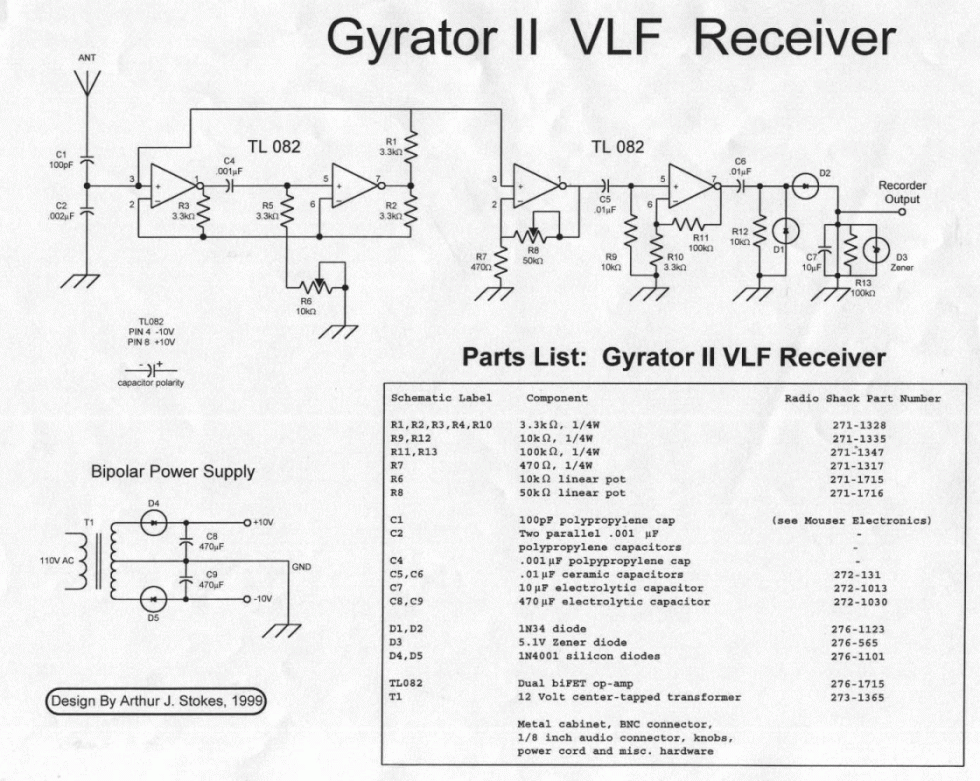

• Gyrator II VLF Receiver

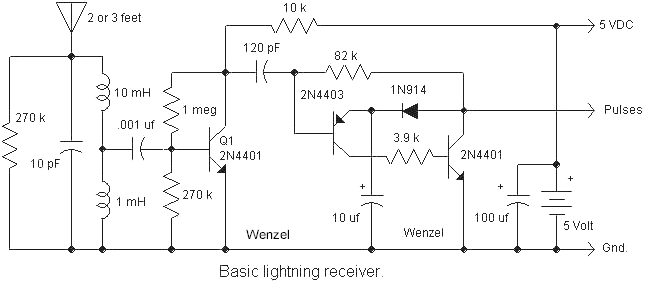

• Basic Lightning Receiver

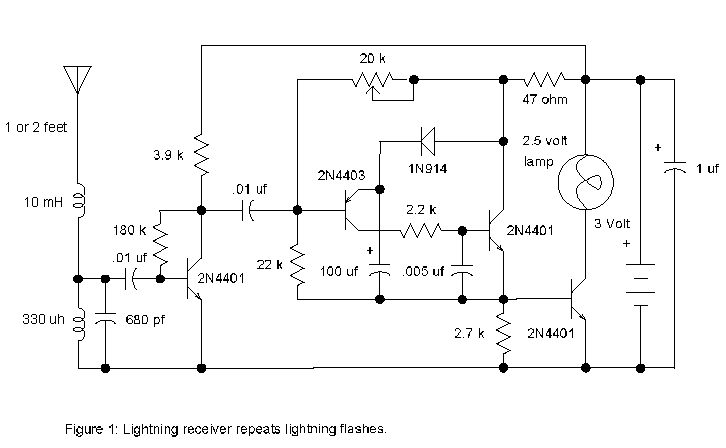

• Complete Lightning Receiver

30M Direct Conversion RF

30M Direct Conversion Audio

BBB-4 VLF Receiver

B-Field Receiver - 1 of 2

B-Field Receiver - 2 of 2

SS Radio Receiver

Gyrator II VLF Receiver

Basic Lightning Receiver

Complete Lightning Receiver

---
