Useful Tables and Charts
Some very useful tables and charts.

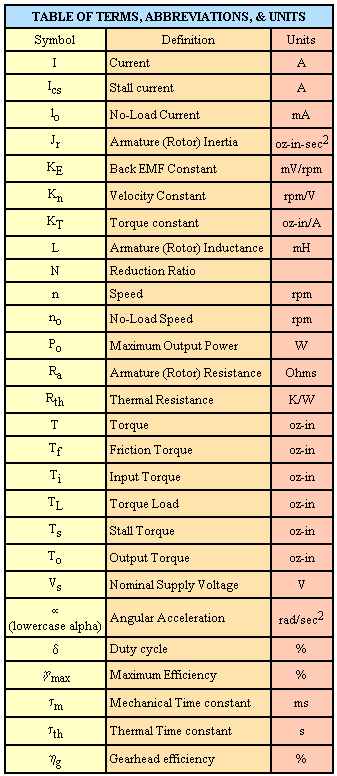

Terms, Abbreviations, and Units

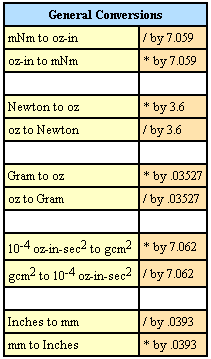

General Conversions
Standard Reduction Ratios

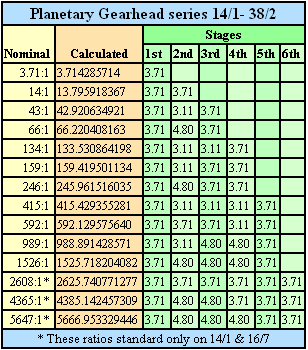

Planetary Gearhead Ratios

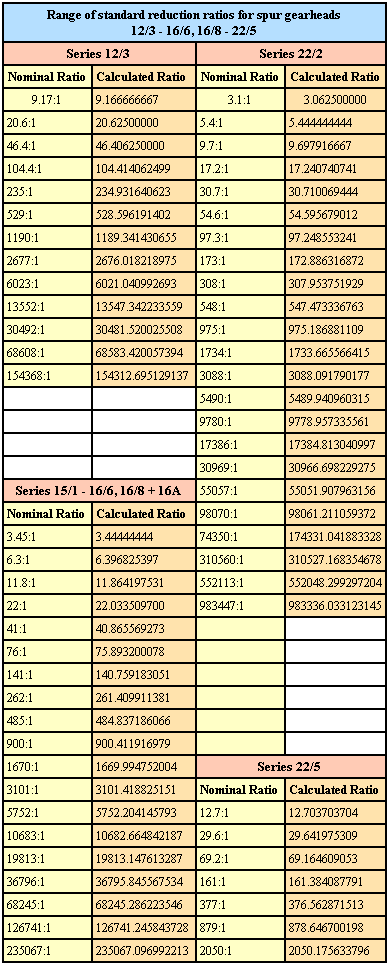

Range of Intermediate Ratios
Motor/Gearhead Combinations

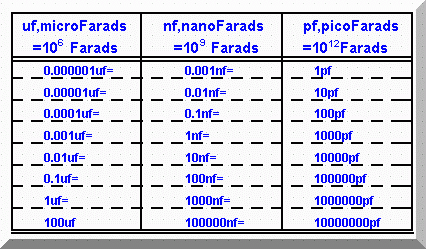

Capacitance Value Conversion Chart

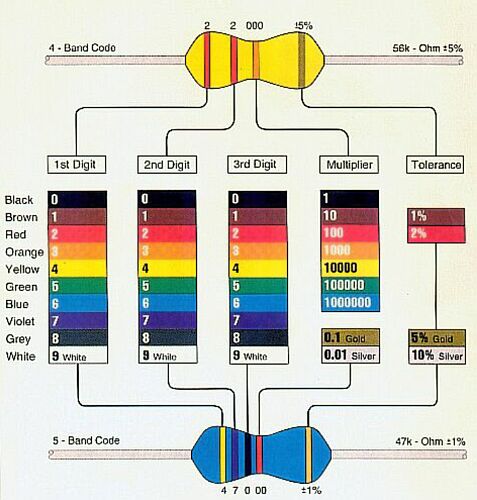

Resistor Color Codes

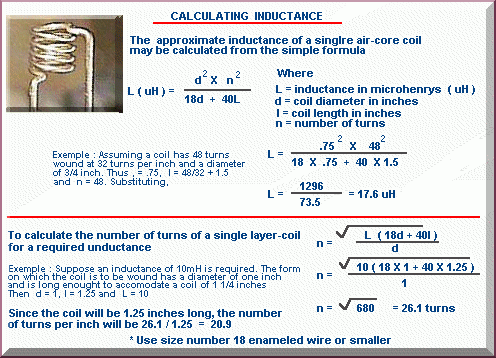

Calculating Inductance
