2-Phase Stepper Motor Drivers

These are mostly partial drawings, done primarily for reference.

• 2-phase Driver for Stepper
• 2-phase Clock Source Schematic
• 2-phase Clock Source Waveforms
• 2-phase Adjustable Clock Source
• 2-phase Clock for 2 Motors
• 2-phase Driver Example 6
• 2-phase Output Section with Discretes
• 2-phase Output Section with LS254
• Stepper Drive using AC

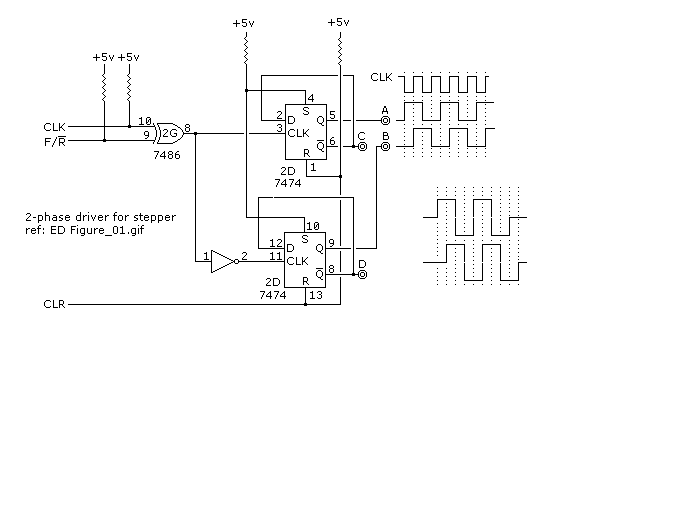

2-phase Driver for Stepper

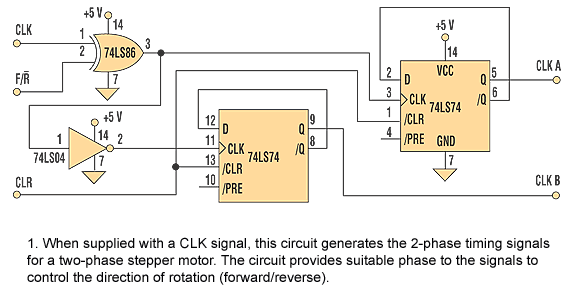

2-phase Clock Source Schematic

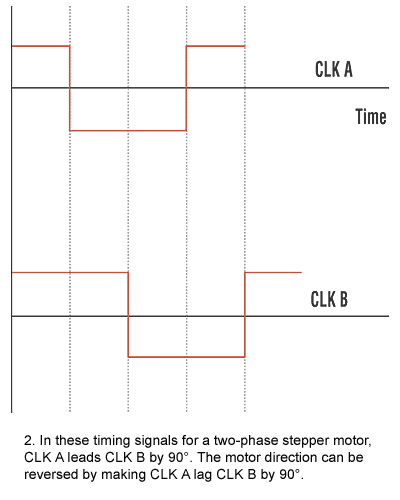

2-phase Clock Source Waveforms

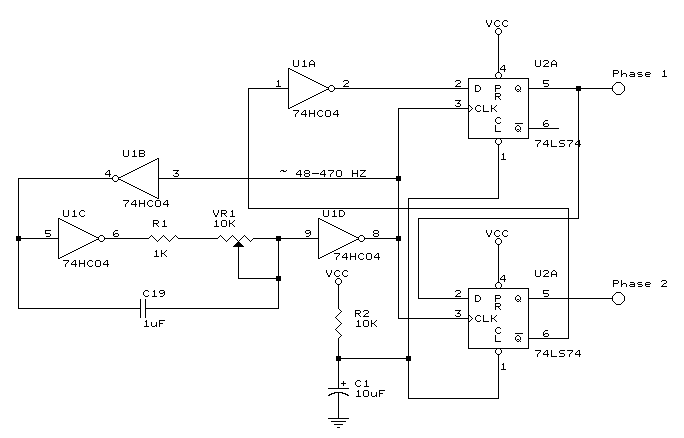

2-phase Adjustable Clock Source

2-phase Clock for 2 Motors

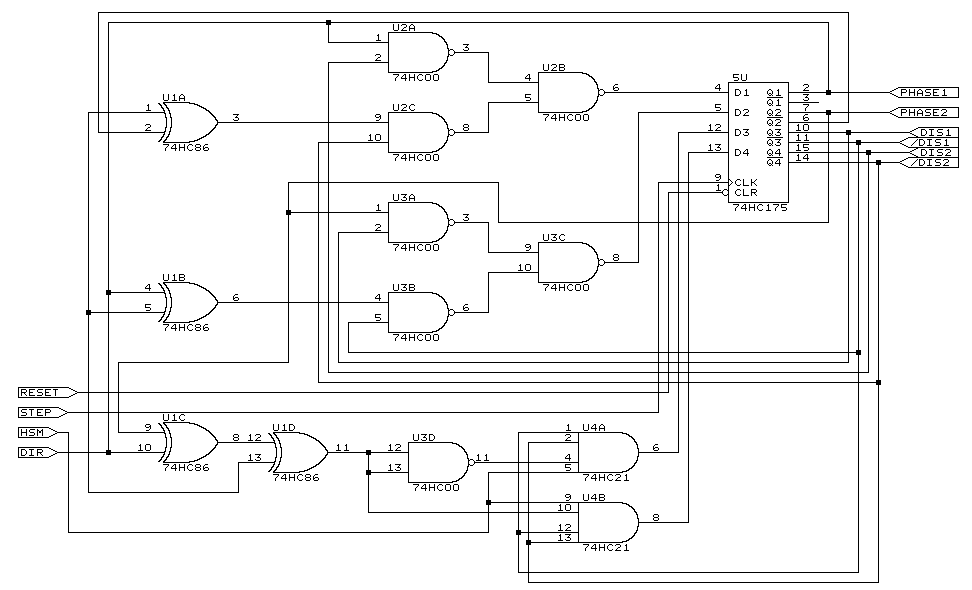

2-phase Driver Example 6

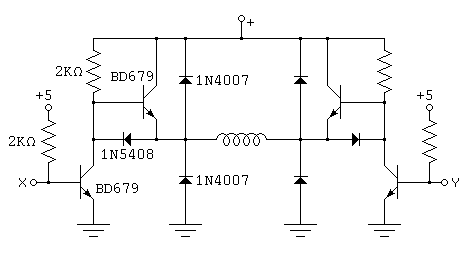

2-phase Output Section with Discretes

2-phase Output Section with LS254

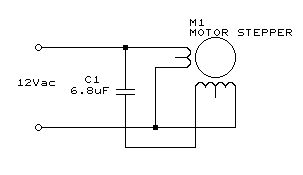

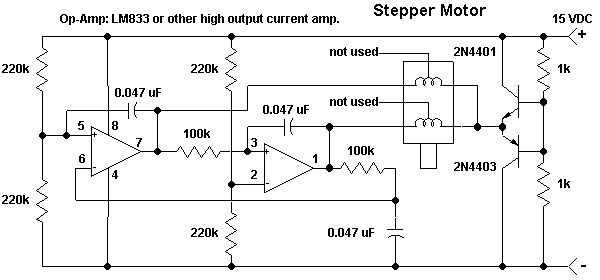

Stepper Drive using AC

---
