4-Phase Stepper Motor Drivers

These are mostly partial drawings, done primarily for reference.

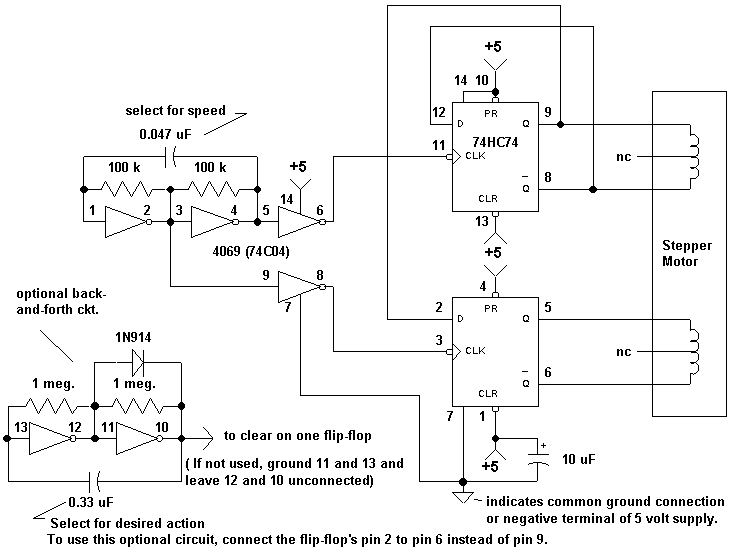

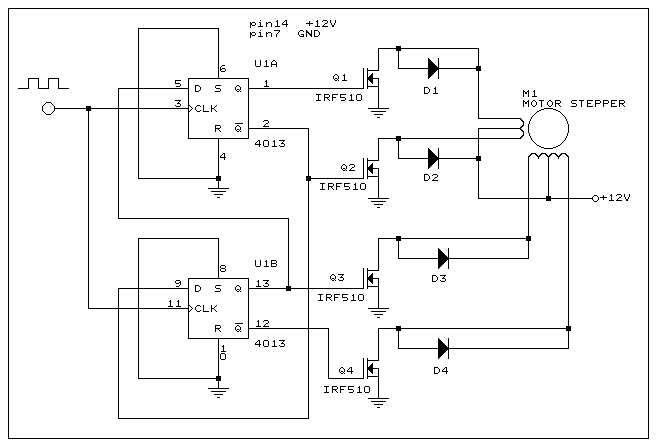

Simple Quadrature Source

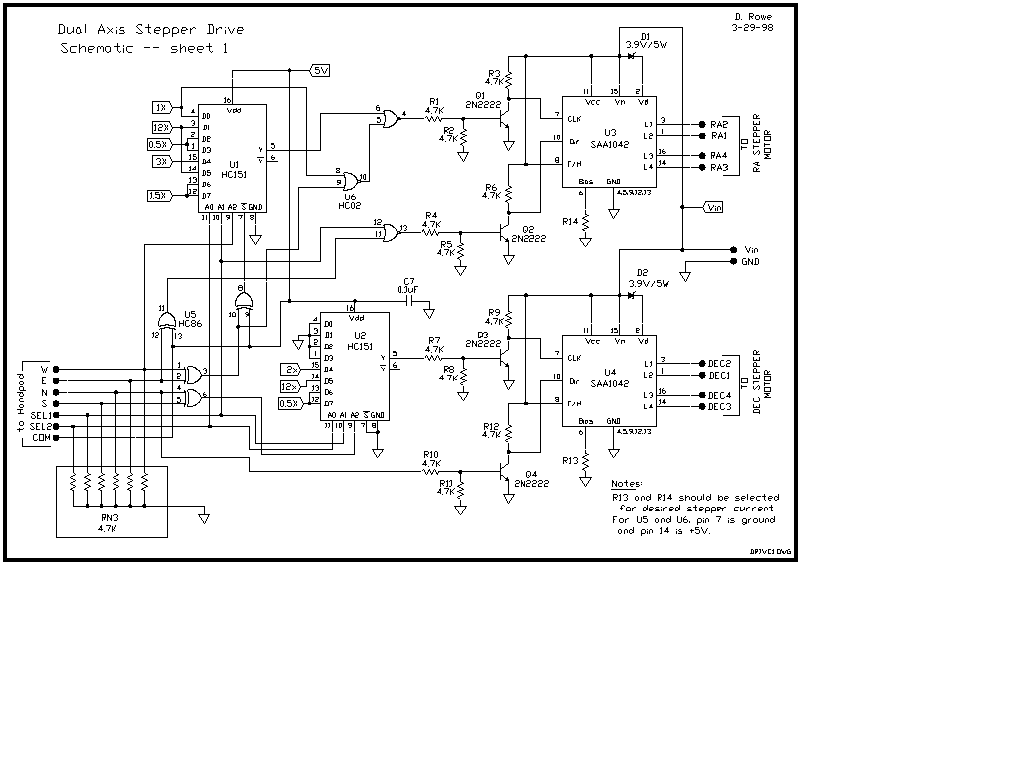

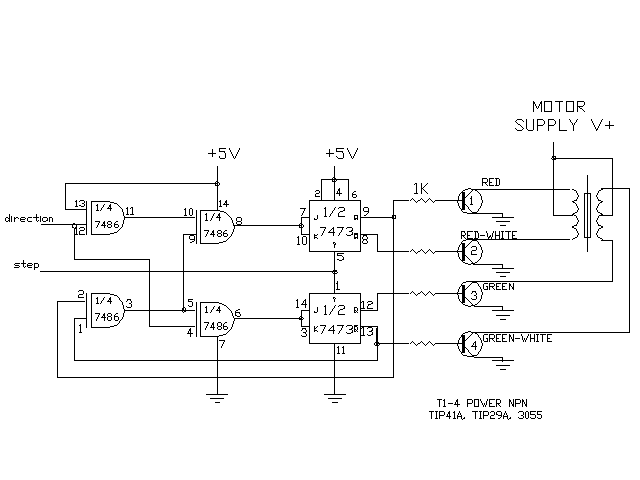

Dual Axis Stepper Driver - 1 of 3

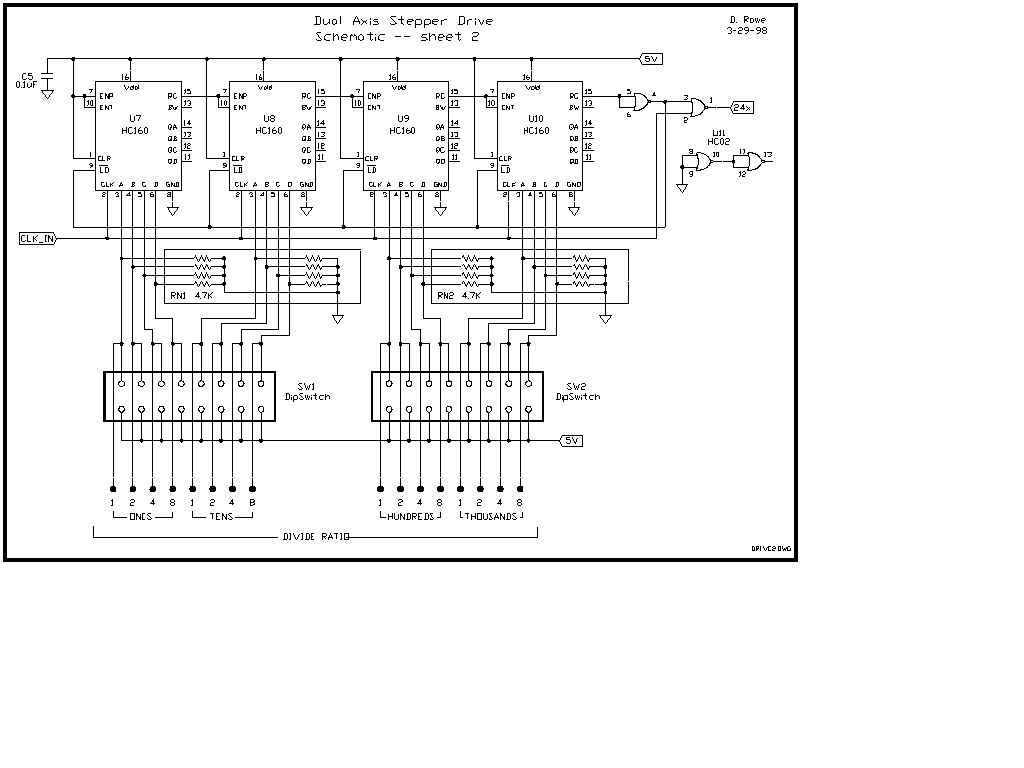

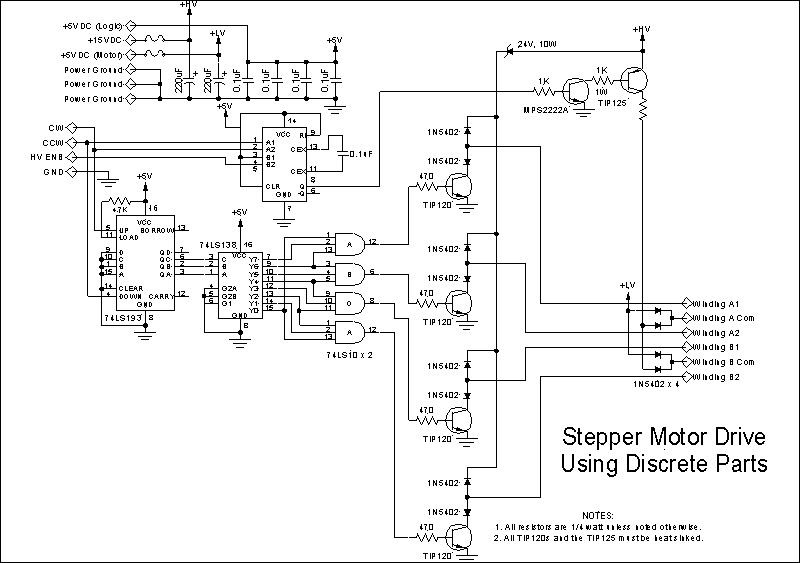

Dual Axis Stepper Driver - 2 of 3

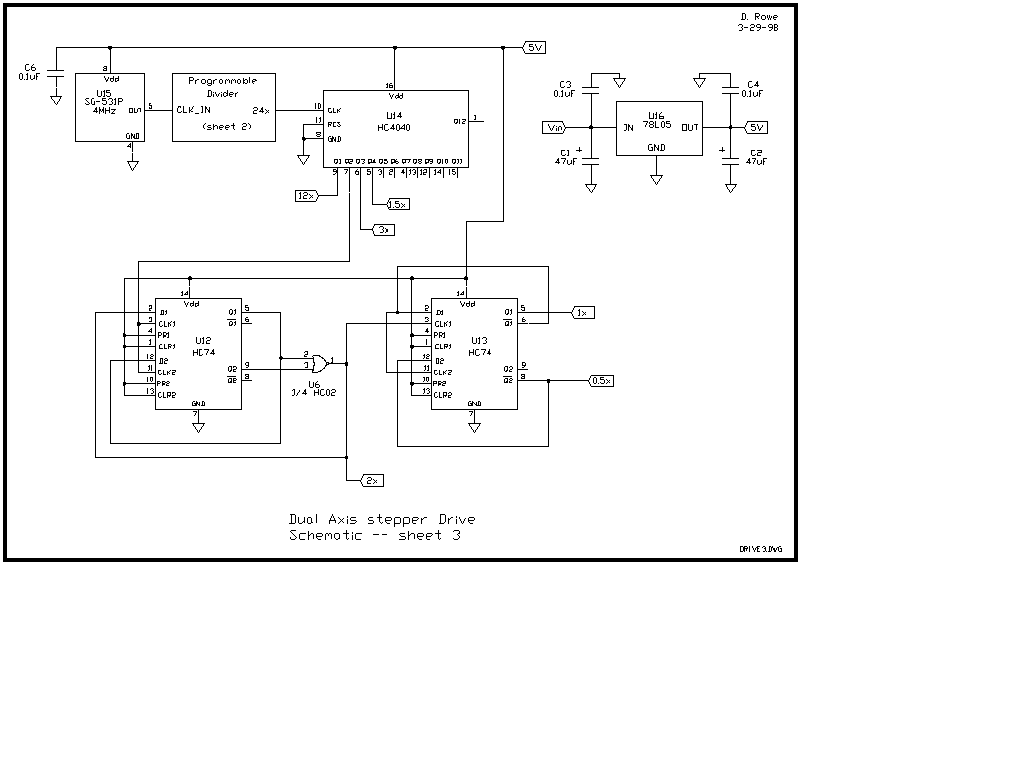

Dual Axis Stepper Driver - 3 of 3


L297/L298 Driver


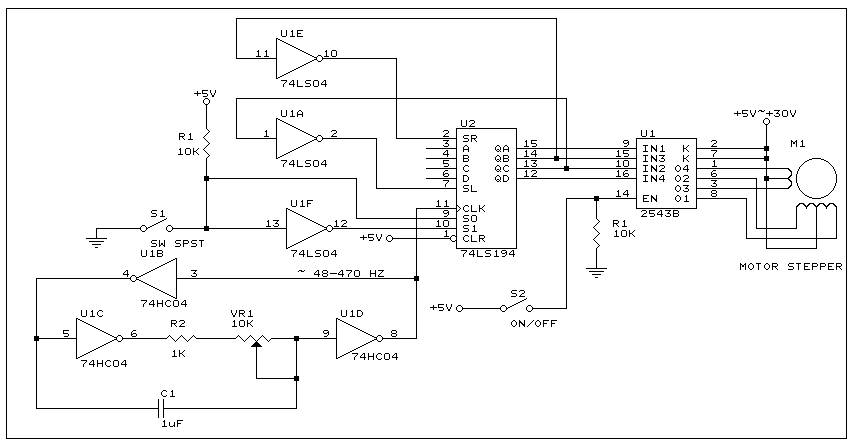

Quadrature Waveform Generator/Driver (1)


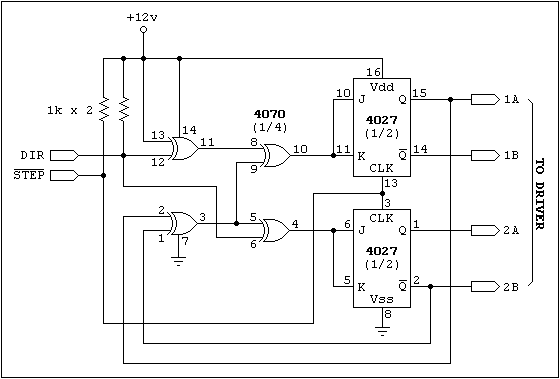

Quadrature Waveform Generator/Driver (2)


Quadrature Waveform Generator/Driver (3)


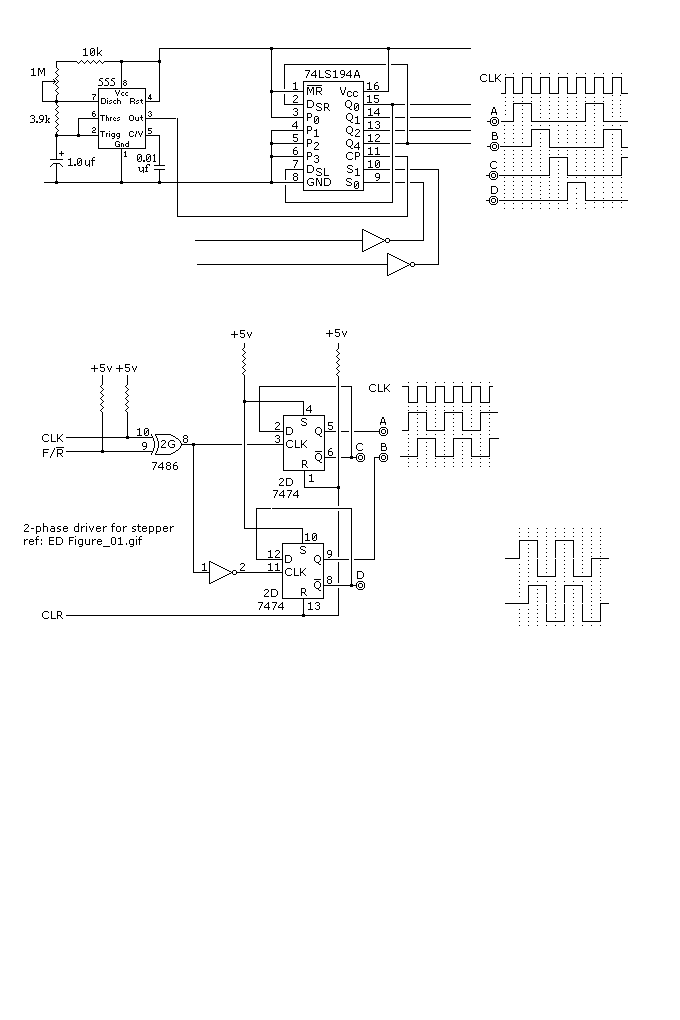

Quadrature Waveform Generator/Driver (4)

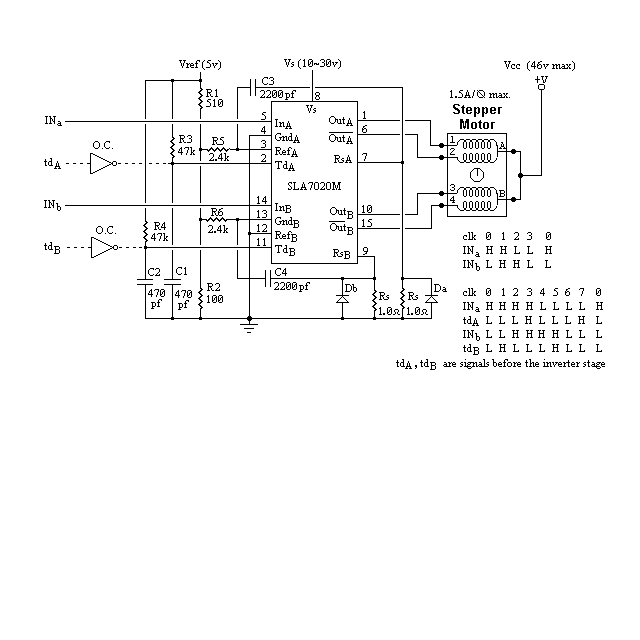

SLA7020 Stepper Driver

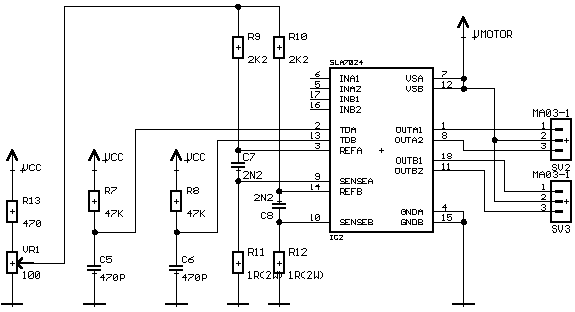

SLA7024 Stepper Driver


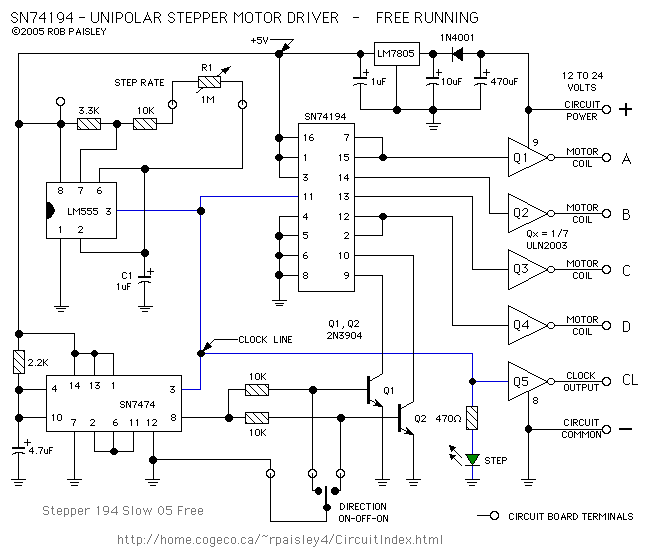

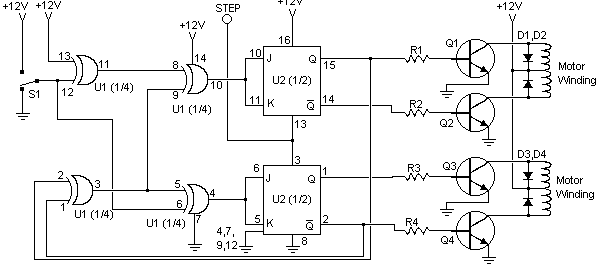

Simple Quadrature Source (2)


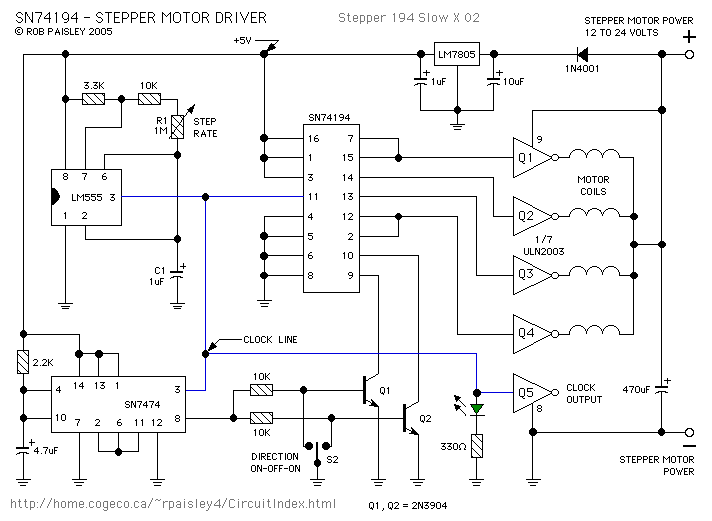

Simple Quadrature Source (3)


Simple Quadrature Source (4)


Simple Quadrature Source (5)


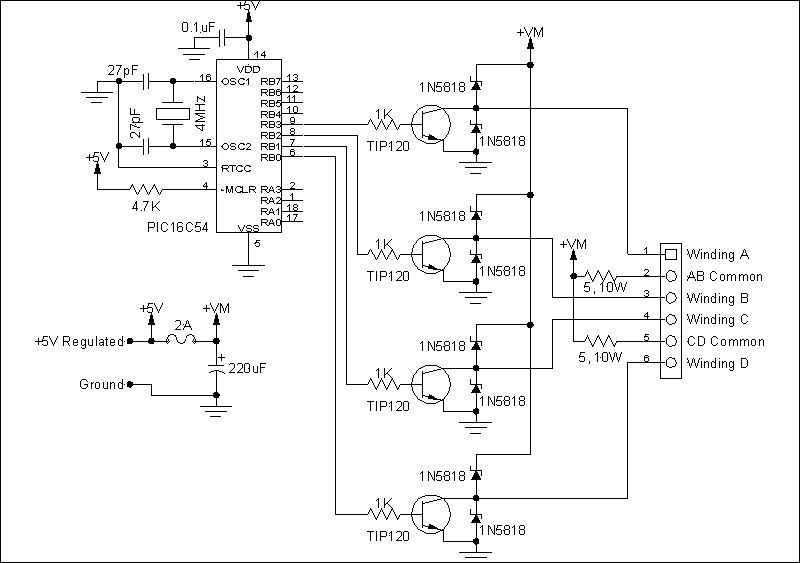

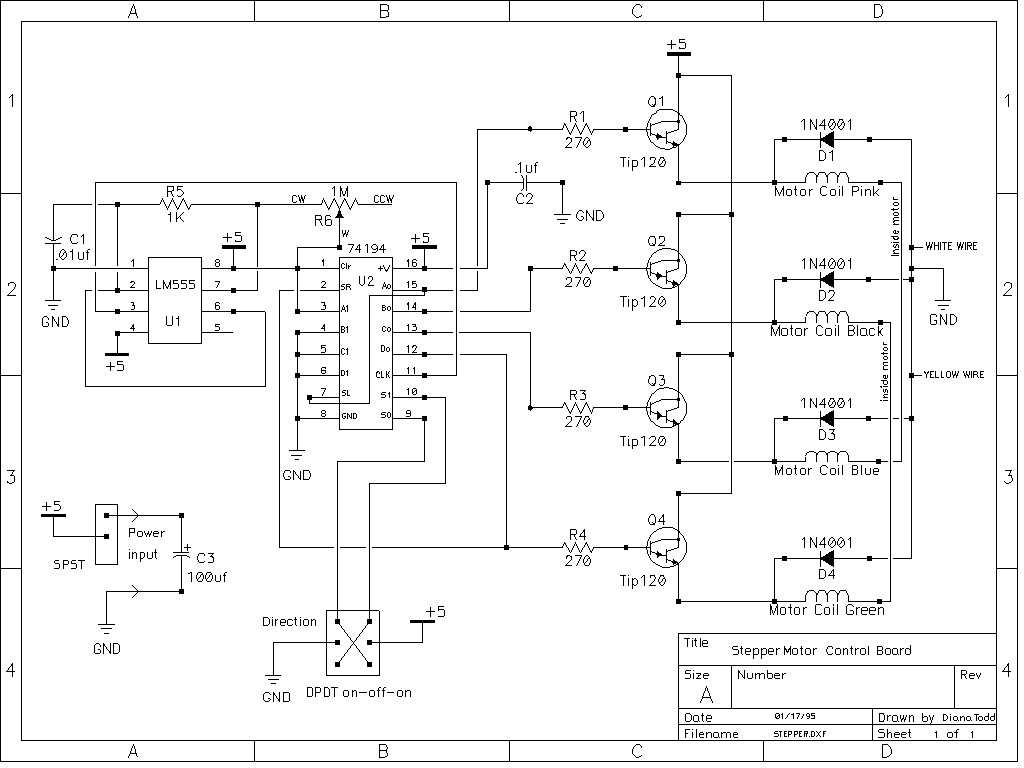

Stepper Motor Control Board


Simple Quadrature Source (6)


Simple Quadrature Source (7)


Simple Quadrature Source (8)
