Epson Power Supplies

Schematics for Epson EPS-05, EPS-11, PEGX, ROPSU, and SANPS Power Supplies used in prototyping and pulser/charger combinations.   These are all supplies removed from dot-matrix printers.

• EPS-11 (1 of 2) - High Voltage Section
• EPS-11 (2 of 2) - Low Voltage Section
• EPS-05 (1 of 3) - PWM Driver Detail
• EPS-05 (2 of 3) - High and Low Voltage
• EPS-05 (3 of 3) - Line Input Network
• ROPSU (1 of 6) - Line Input Section
• ROPSU (2 of 6) - Timing and Low Voltage
• ROPSU (3 of 6) - Timing and Low Voltage
• ROPSU (4 of 6) - Timing and Low Voltage
• ROPSU (5 of 6) - Low Voltage and Output
• ROPSU (6 of 6) - Parts List
• SANPS (1 of 3) - PWM Driver Detail
• SANPS (2 of 3) - High and Low Voltage
• SANPS (3 of 3) - Line Input Network
• PEG-X (1 of 3) - High Voltage Section
• PEG-X (2 of 3) - Low Voltage Section
• NJM2355D (1 of 1) - NJM2355D Typical Usage

Epson EPS11-1

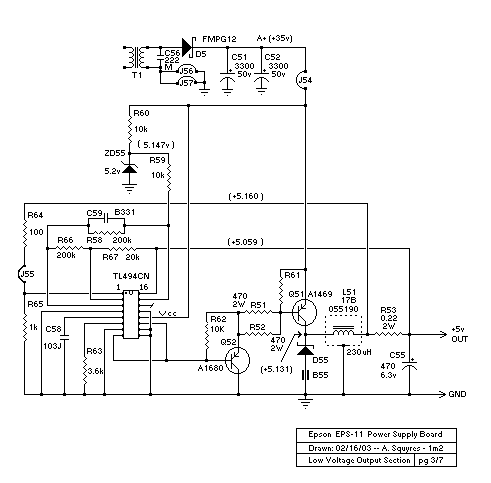

Epson EPS11-3

Epson EPS-05 (1 of 3)

Epson EPS-05 (2 of 3)

Epson EPS-05 (3 of 3)

Epson ROPSU (1 of 6)

Epson ROPSU (2 of 6)

Epson ROPSU (3 of 6)

Epson ROPSU (4 of 6)

Epson ROPSU (5 of 6)

Epson ROPSU (6 of 6)

Epson SANPS (1 of 3)

Epson SANPS (2 of 3)

Epson SANPS (3 of 3)

Epson PEGX (1 of 2)

Epson PEGX (2 of 2)

NJM2355D Usage (1 of 1)

---
