Switching Power Supply Circuits

These are mostly partial drawings, done mostly for reference.

• Current Mode Forward Converter
• Yokogawa PS021-0101 (1 of 3)
• Yokogawa PS021-0101 (2 of 3)
• Yokogawa PS021-0101 (3 of 3)
• EFI UPS 900/1200 Partial (1 of 2)
• EFI UPS 900/1200 Partial (2 of 2)
• Pulse Width Modulator
• Pass Regulator
• 3A Switching Regulator
• Low Power Switching Regulator

Current Mode Forward Converter (AN1108)

Yokogawa PS021-0101

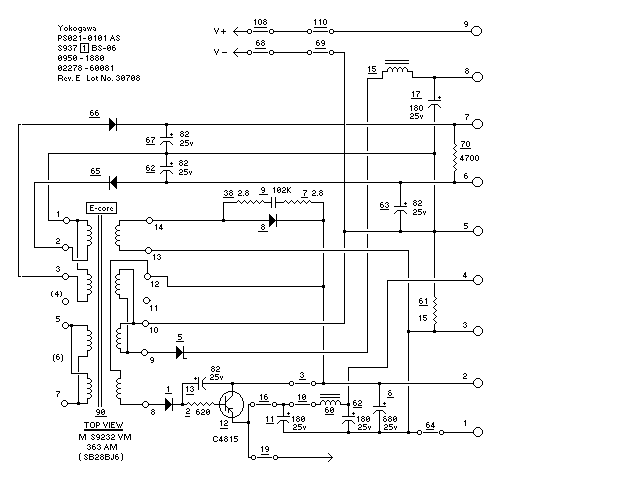

Yokogawa PS021-0101

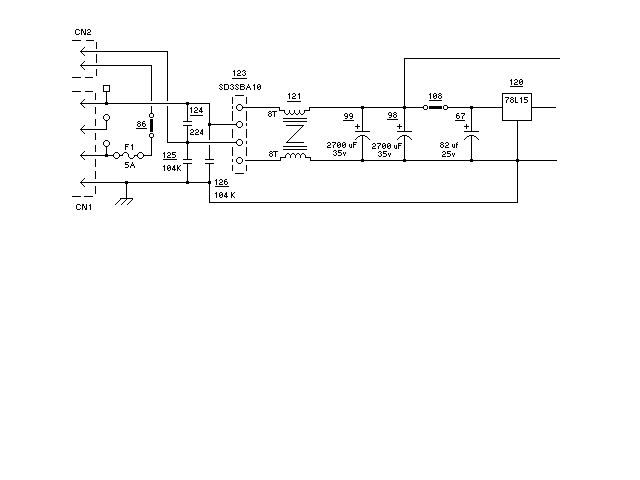

Yokogawa PS021-0101

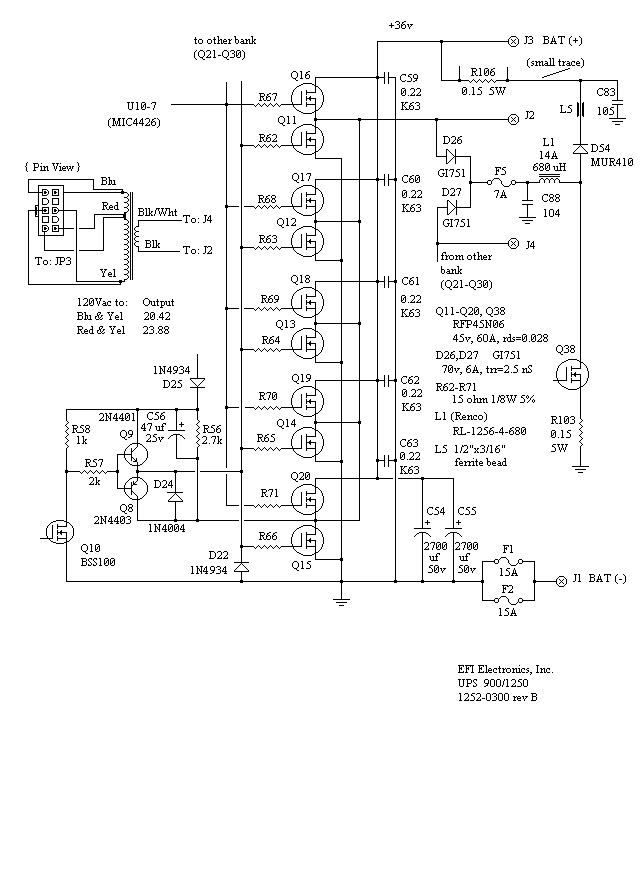

EFI UPS 900/1200 Partial

EFI UPS 900/1200 Partial

Pulse Width Modulator

Pass Regulator

---

3A Switching Regulator

---

Low Power Switching Regulator

---
