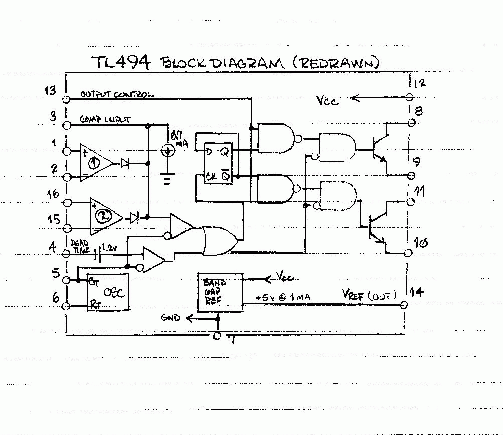

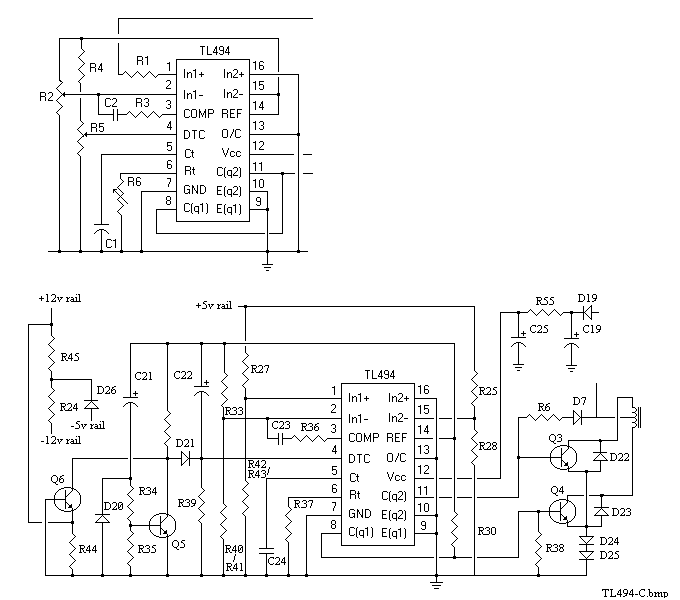

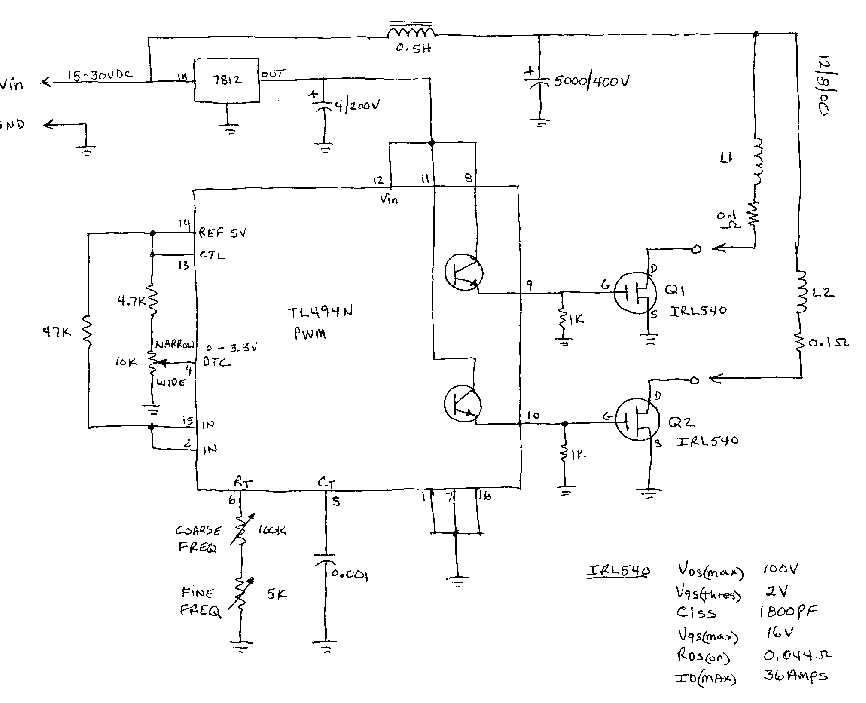

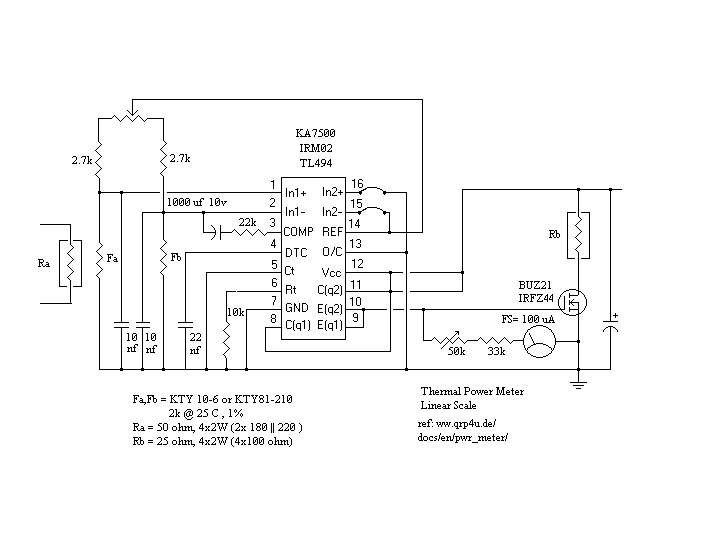

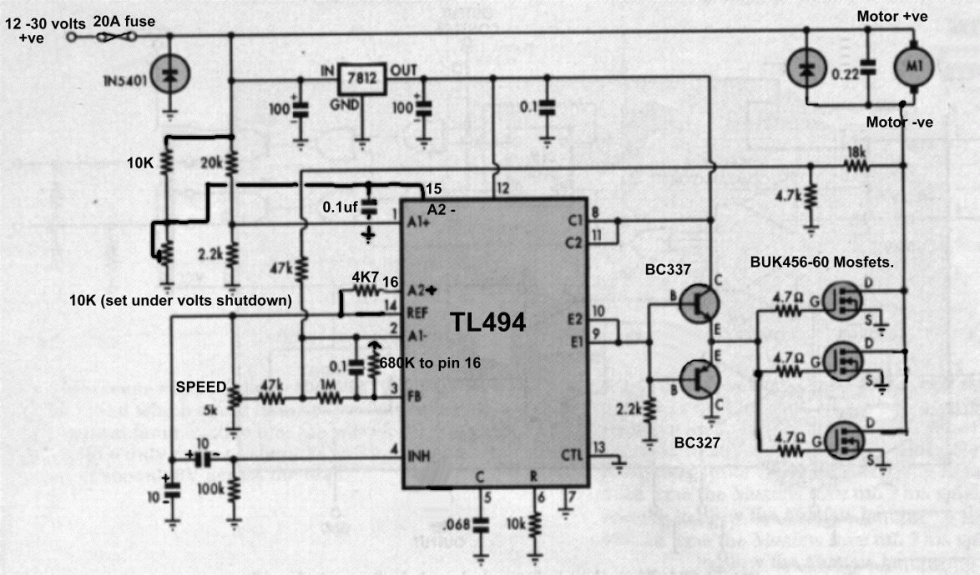

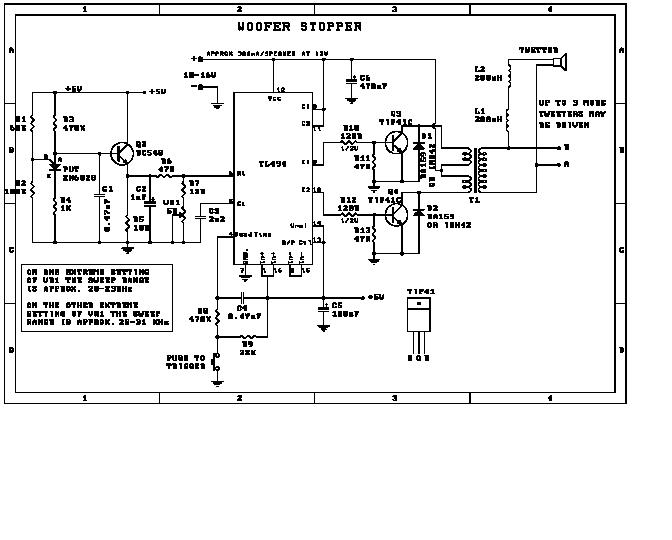

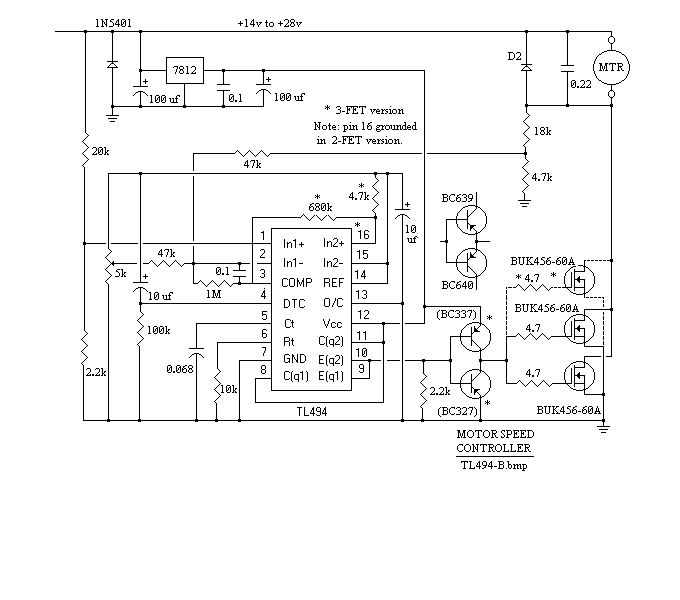

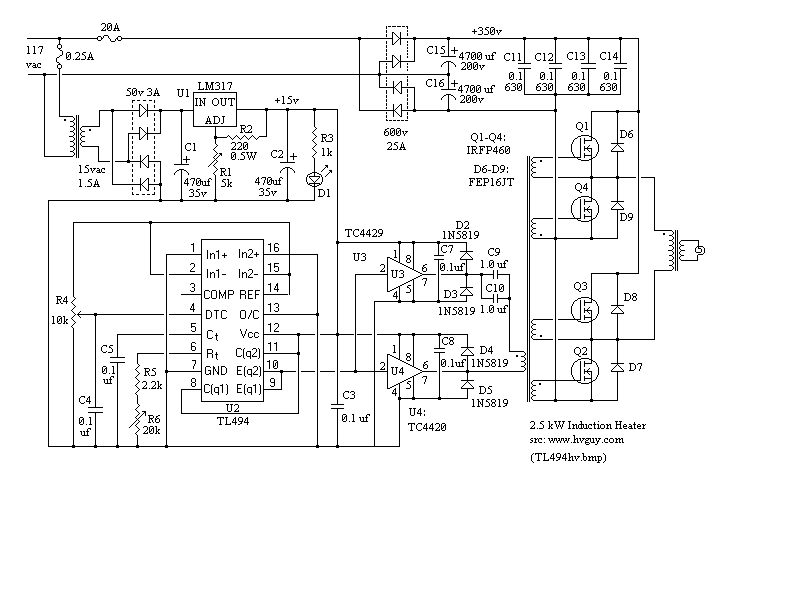

TL494 circuit examples - page 1

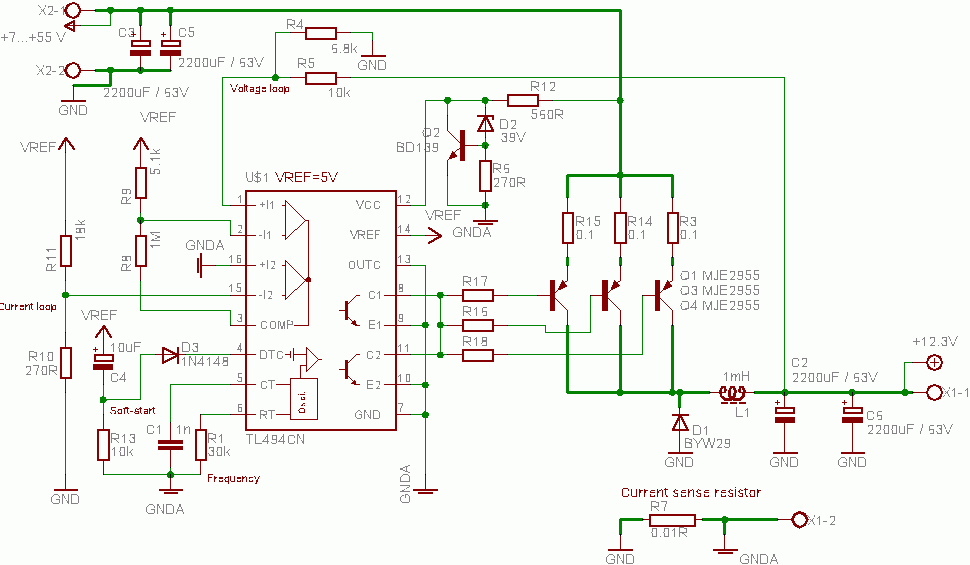

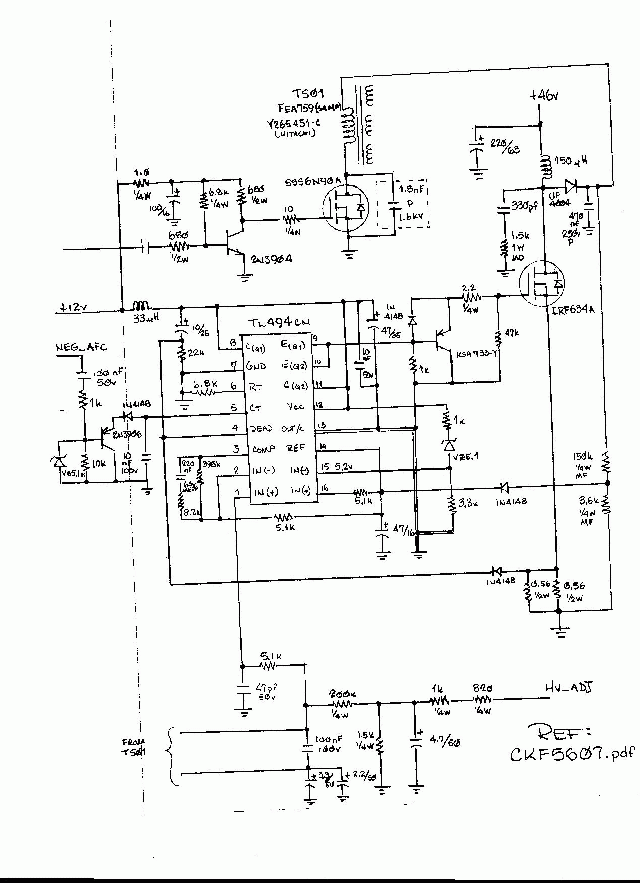

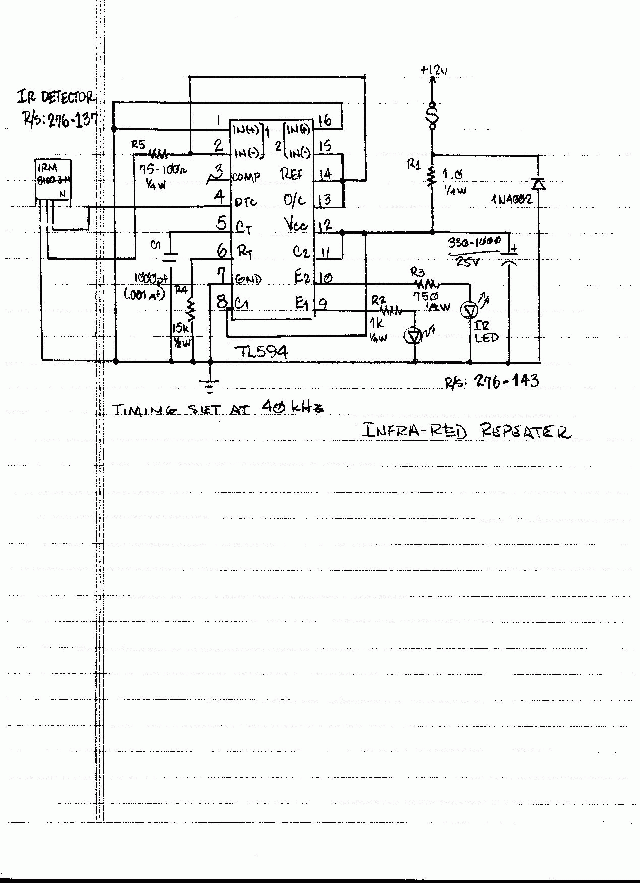

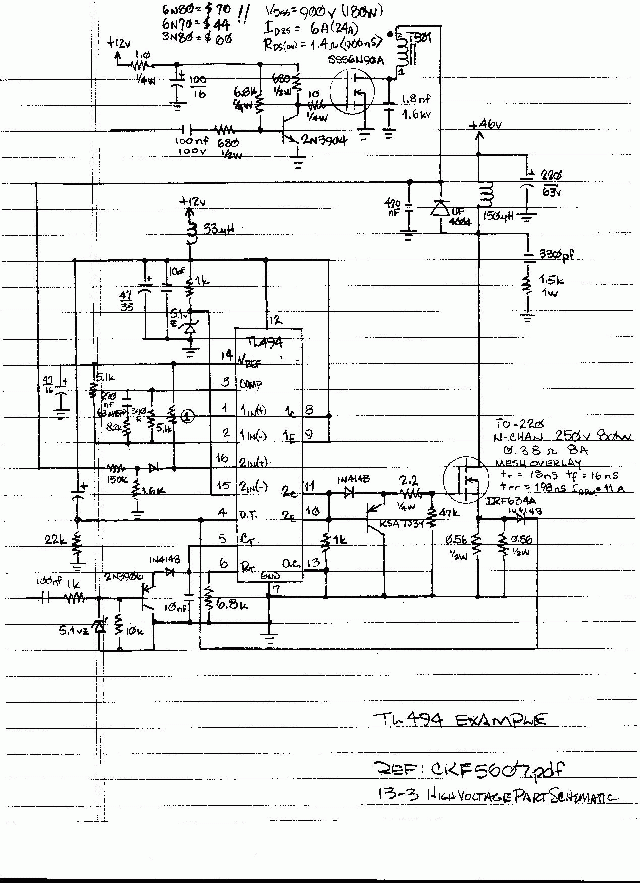

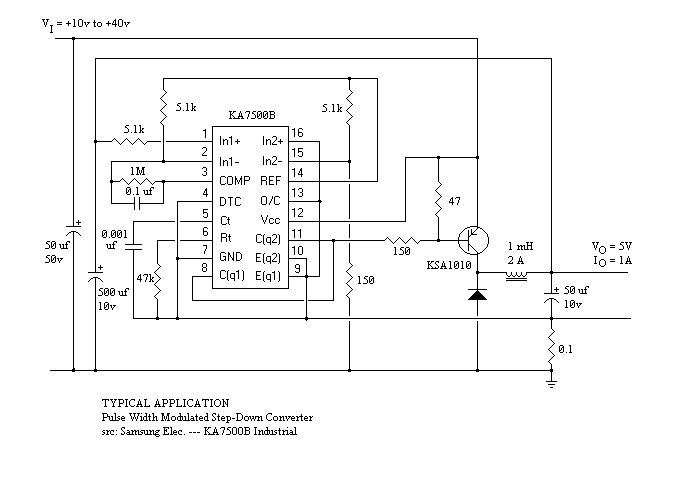

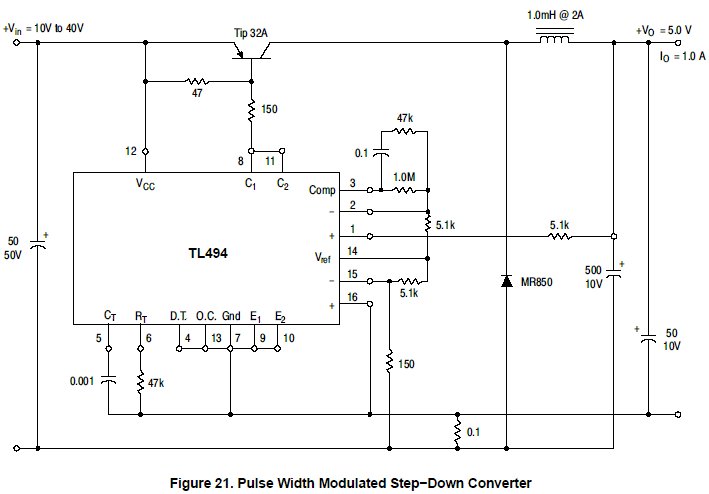

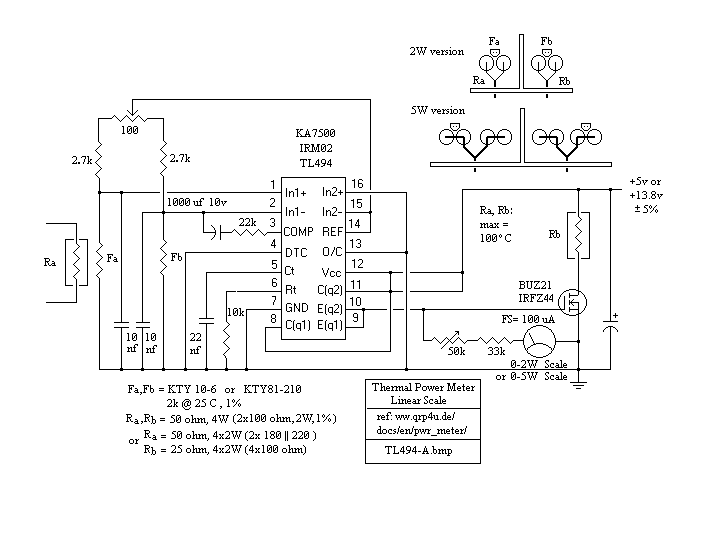

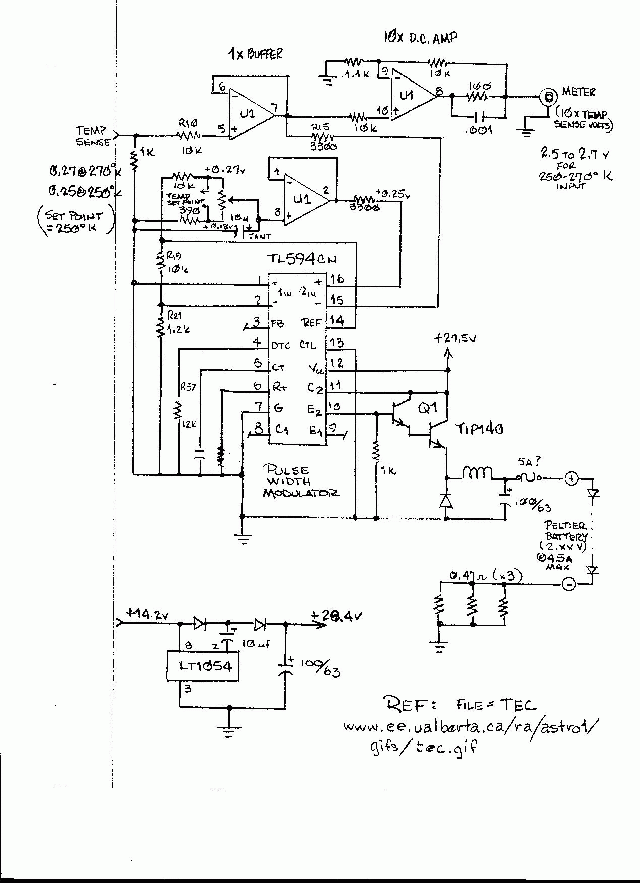

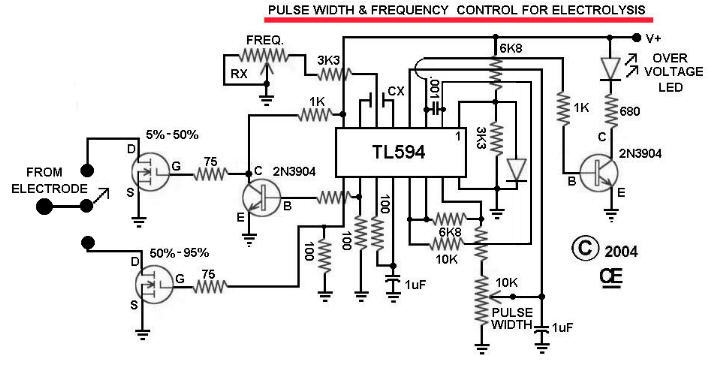

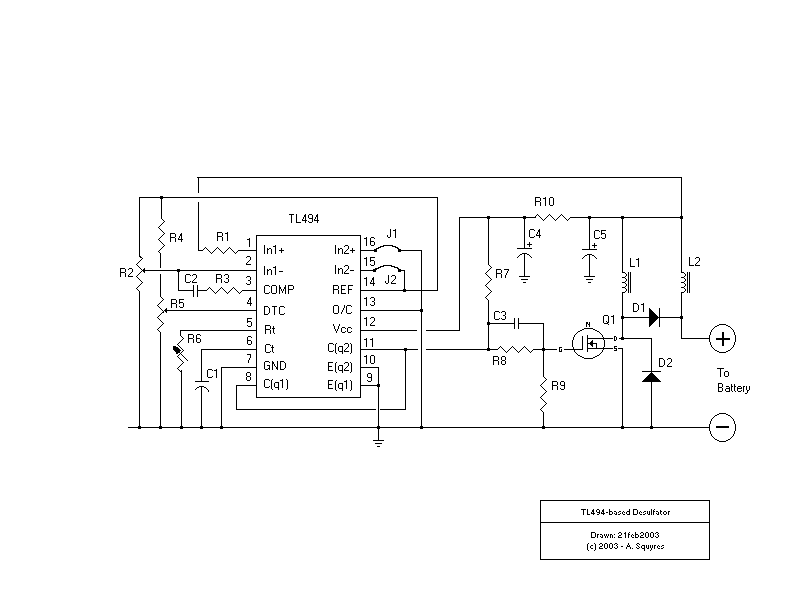

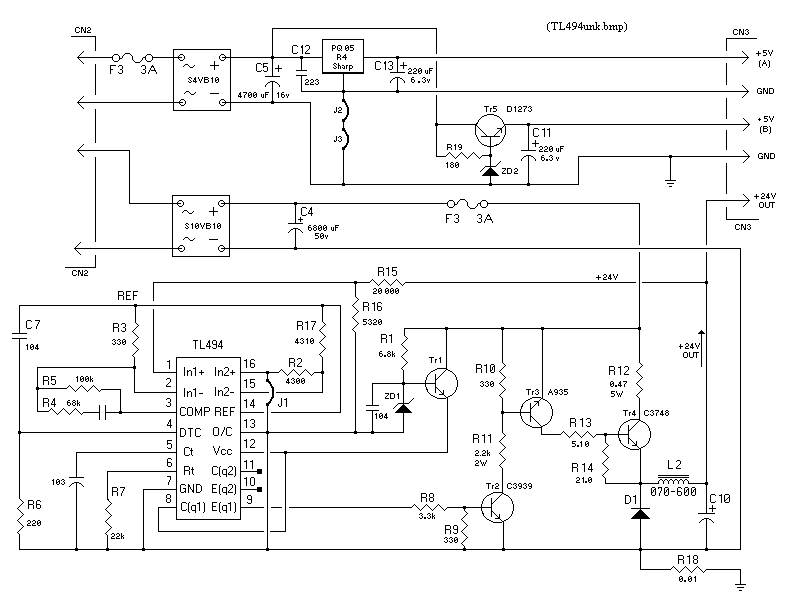

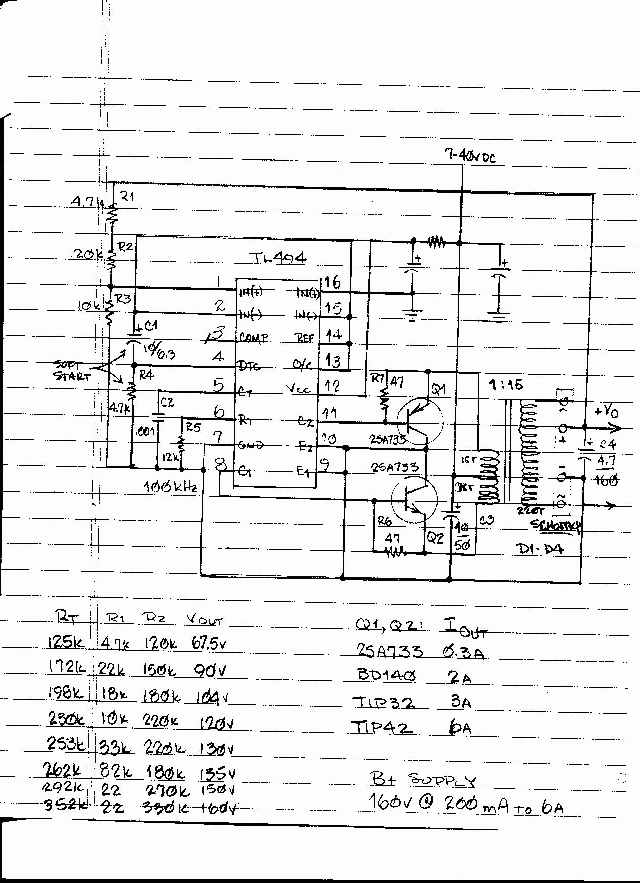

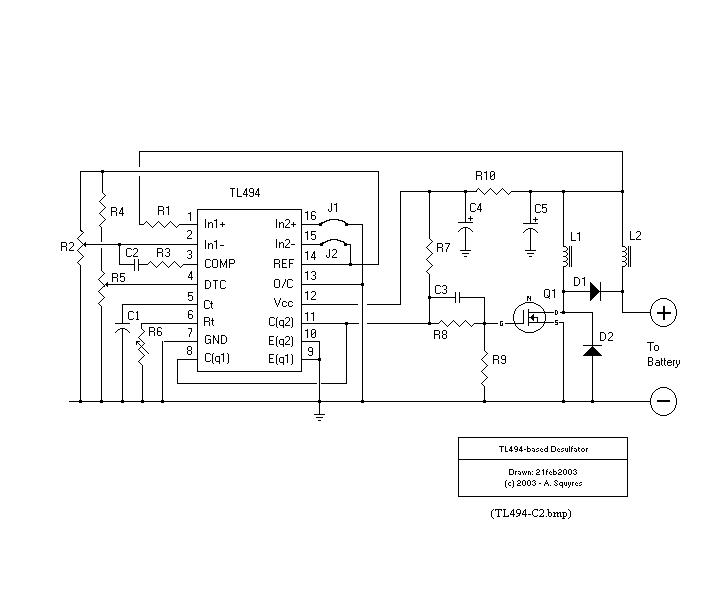

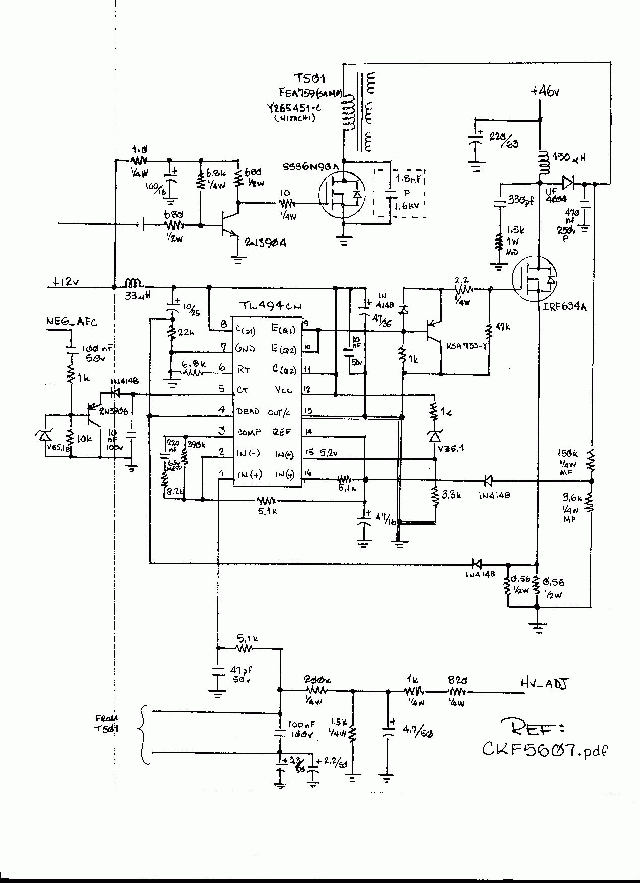

TL494 circuit examples, primarily for reference.

The TL494 is also known as: IR3M02, KA-7500, NJM2355D, TL497, TL594 TL494-01.gif
