TL494 circuit examples - page 2

TL494 circuit examples, primarily for reference.

The TL494 is also known as: IR3M02, KA-7500, TL497, TL594

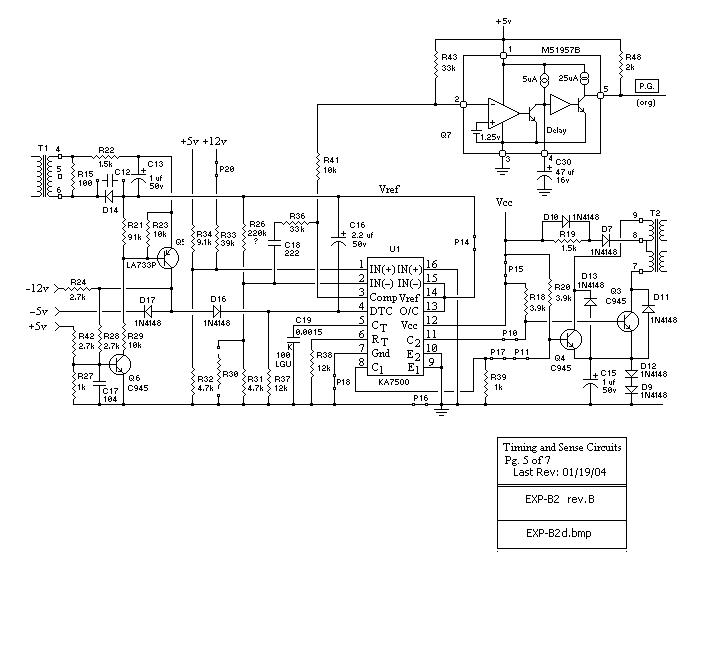

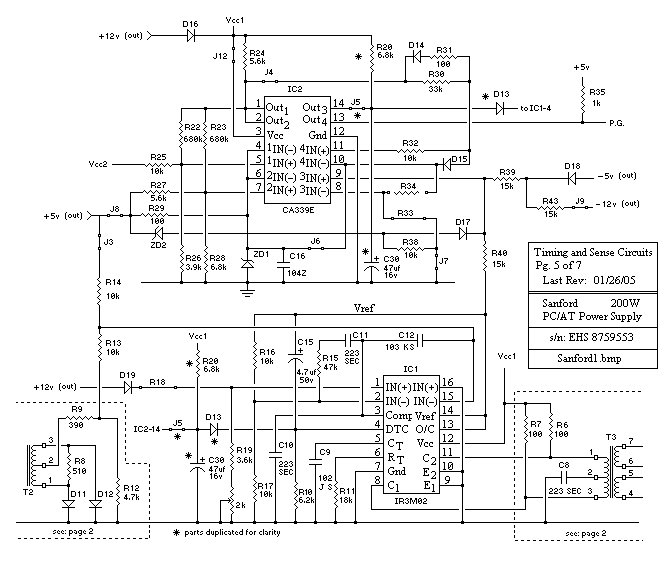

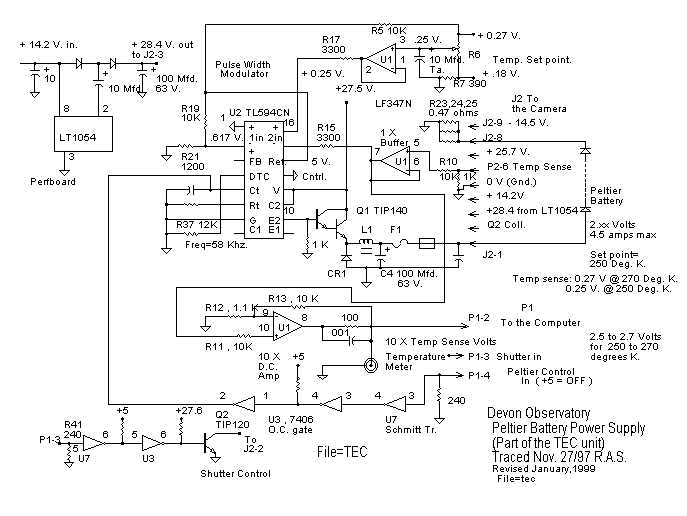

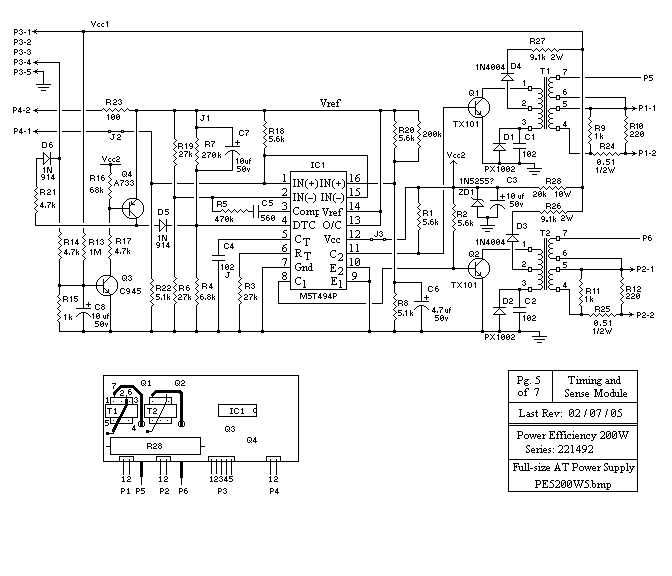

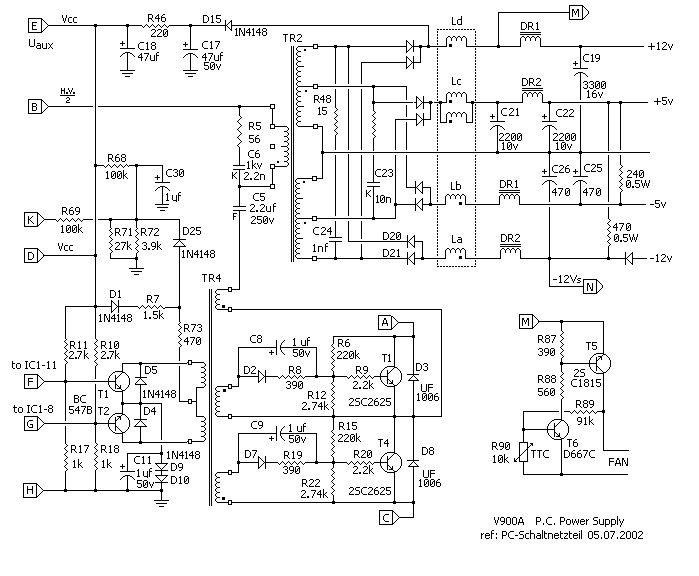

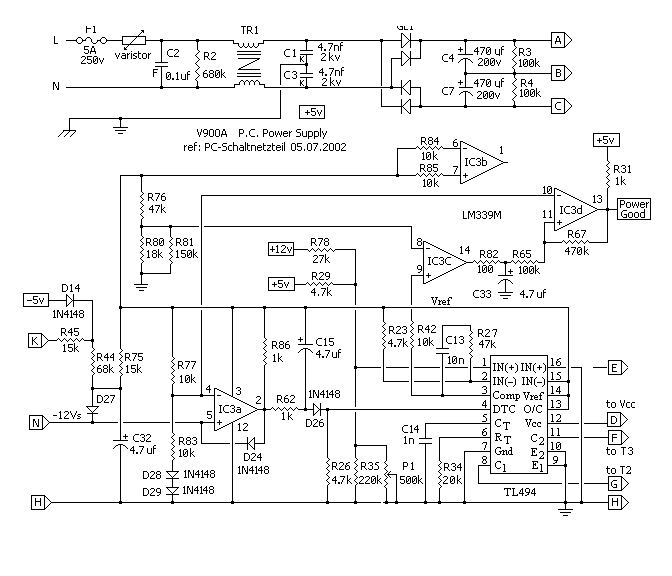

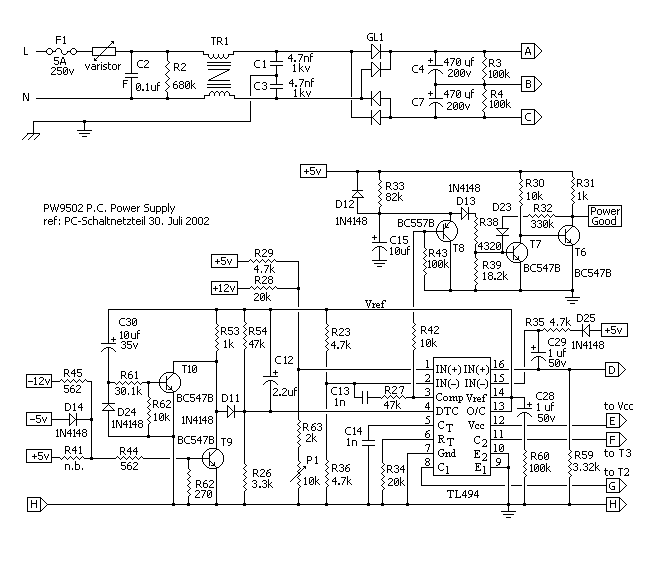

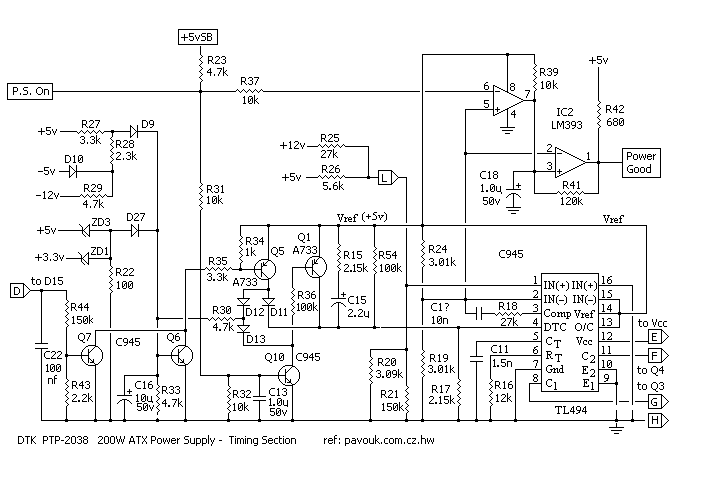

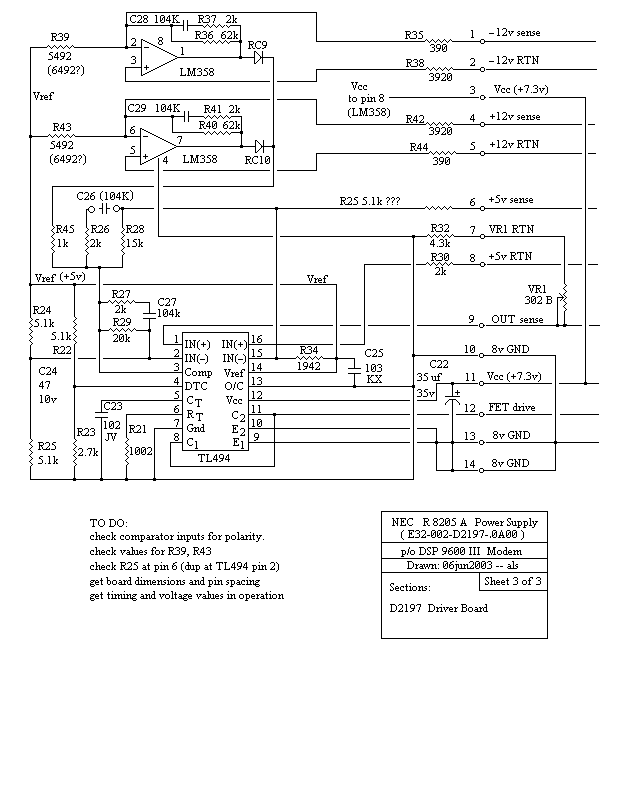

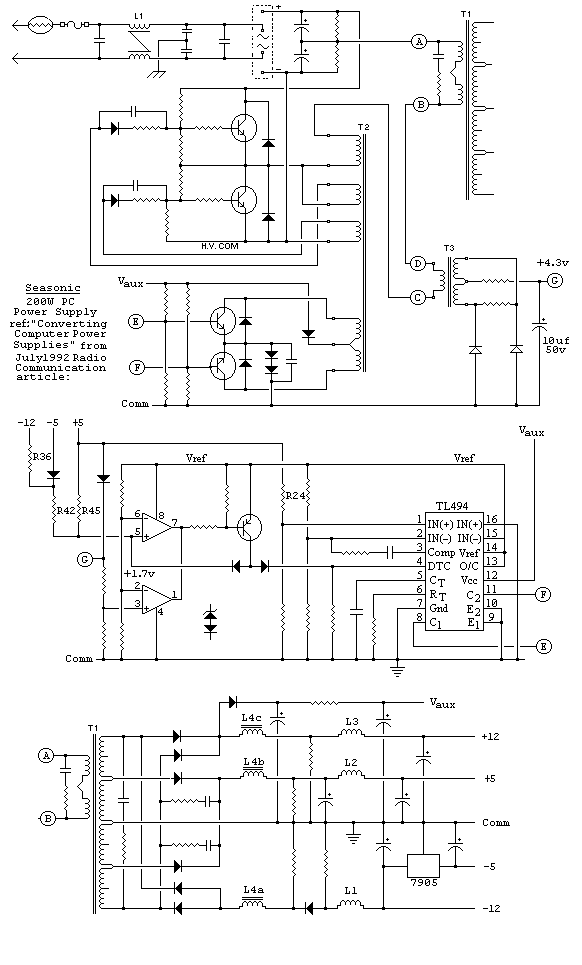

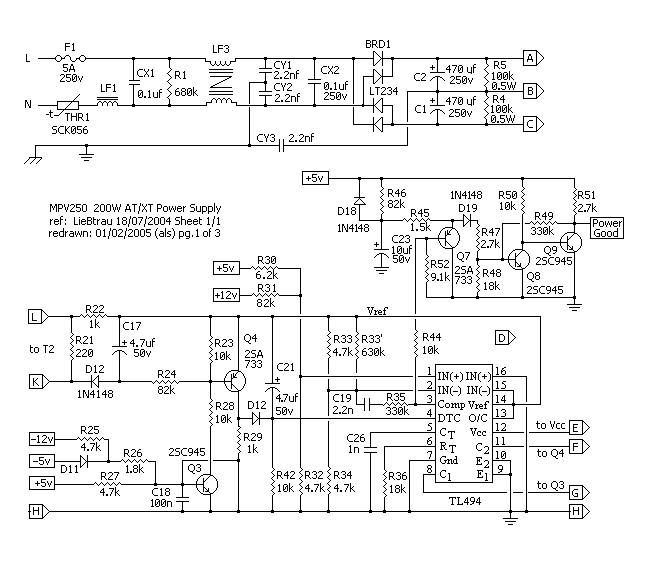

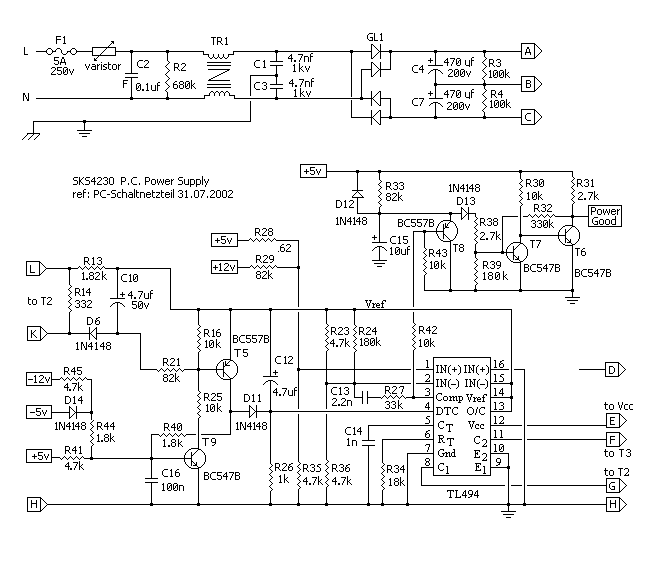

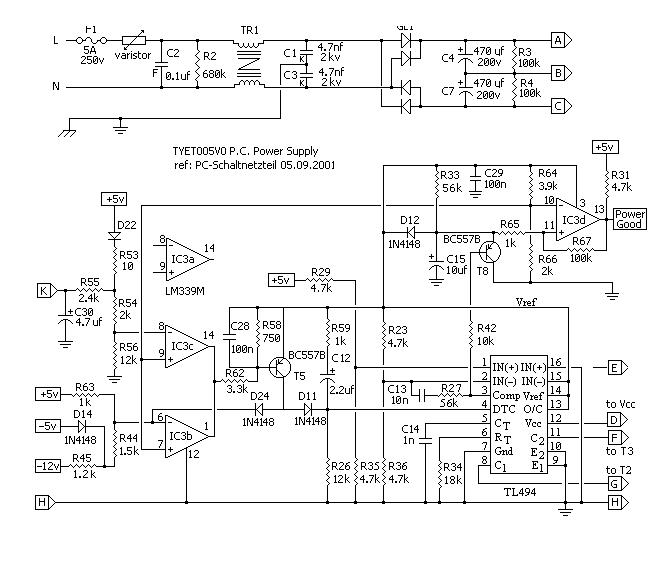

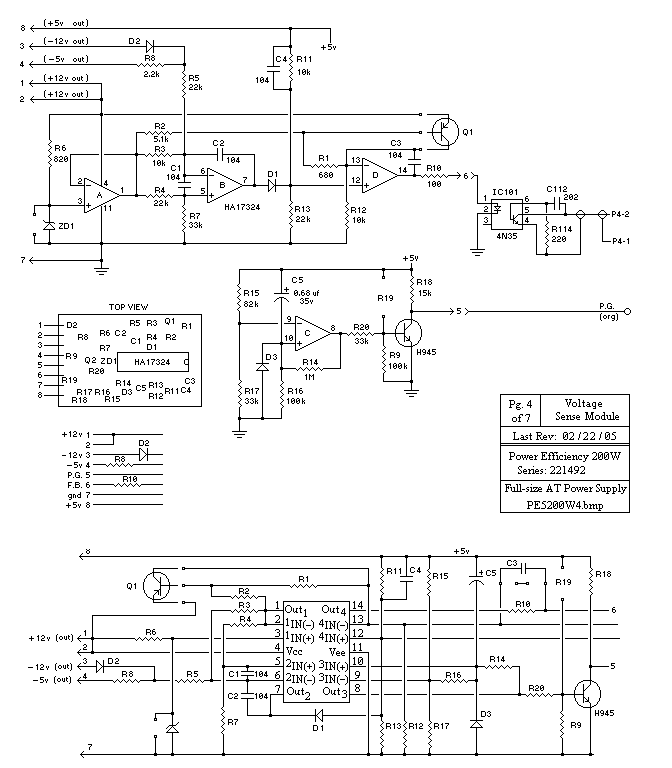

TL494-44.gif TL494-45.gif TL494-47.gif

More TL494 Examples
