WZ Micro Stepper Driver Boards

These are boards that I have used in the past. The boards were (and may still be) available from WZ Micro.
Some of the drawings are still in the "Projects" section on their site.

• Stepper Driver using 2540/2543

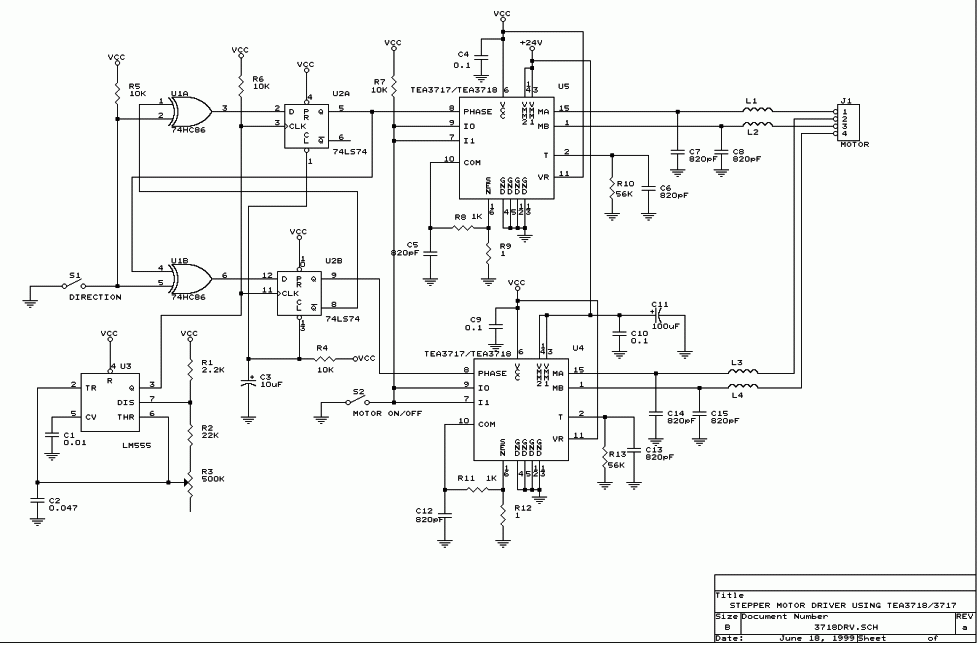

• Stepper Driver using TEA3718/3717

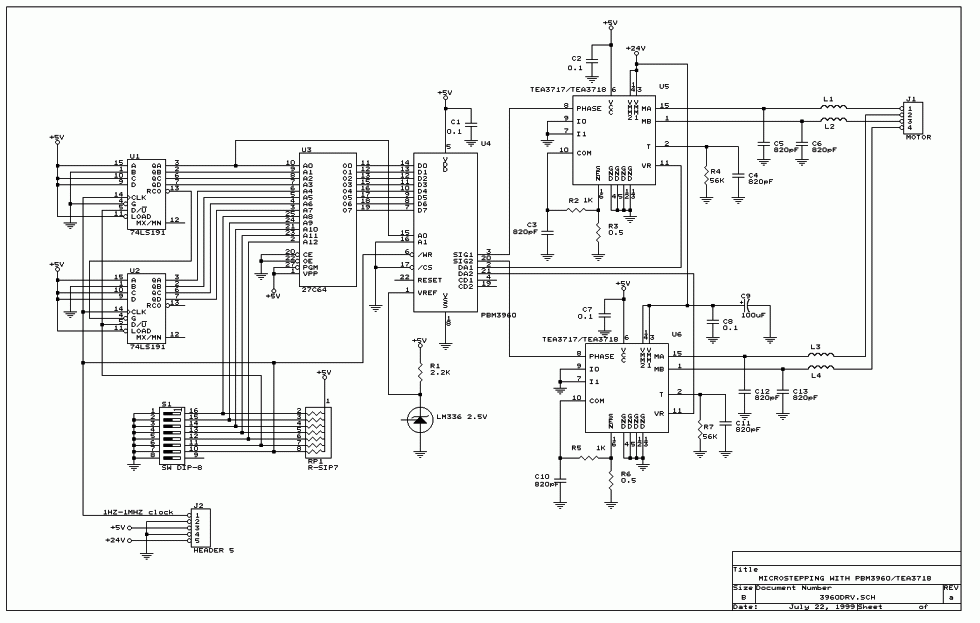

• Micro-stepping with PBM3960/3717

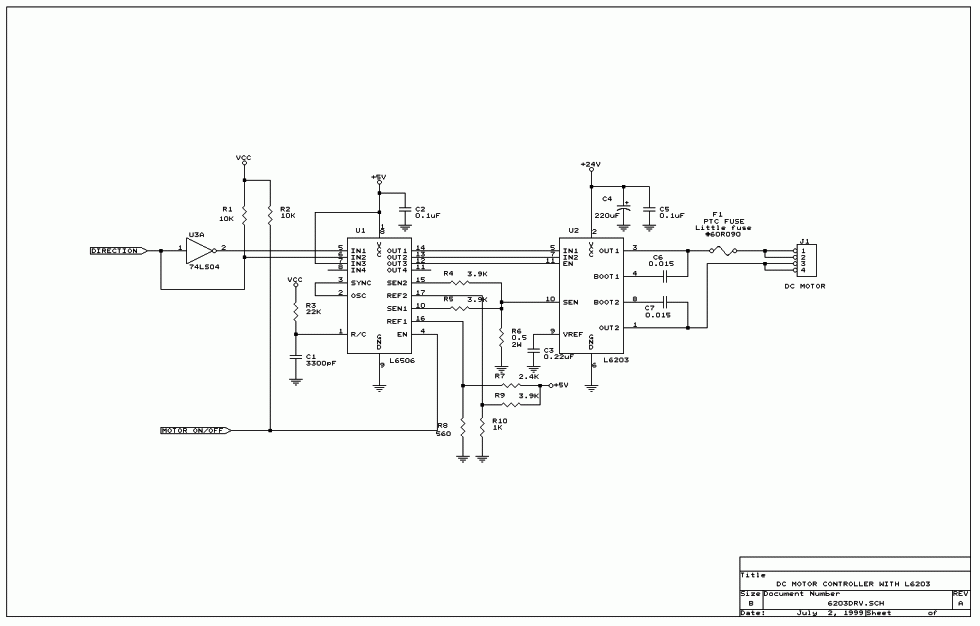

• DC Motor Controller with L6203
• Audio/Visual Sender
• Stepper Controller - L297/L298
• RF PWM Dual DC Motor Controller

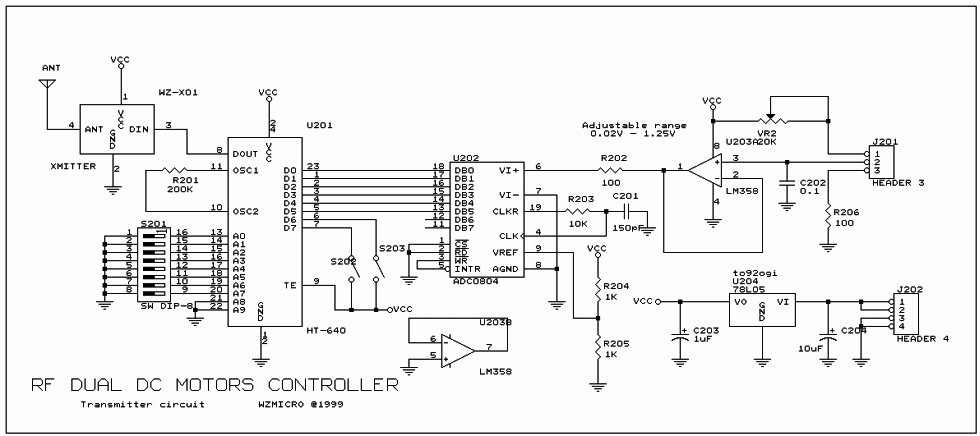

• RF Dual DC Motors Controller
• WX-01 RF Transmitter
• WZ R01 RF Receiver

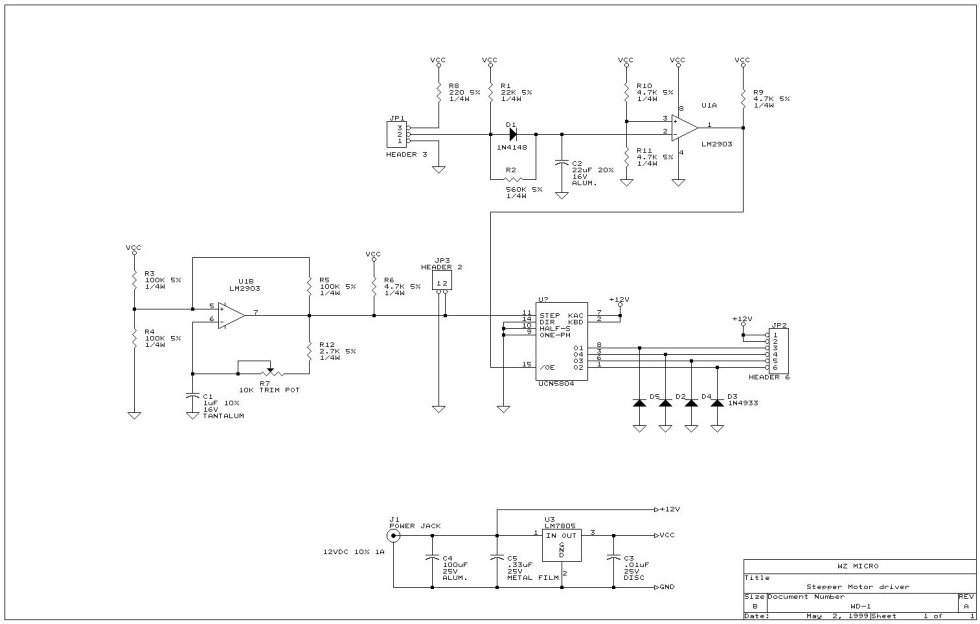

• MD1 Stepper Driver using UCN5804
• MD2 Motor Driver Board with 8031

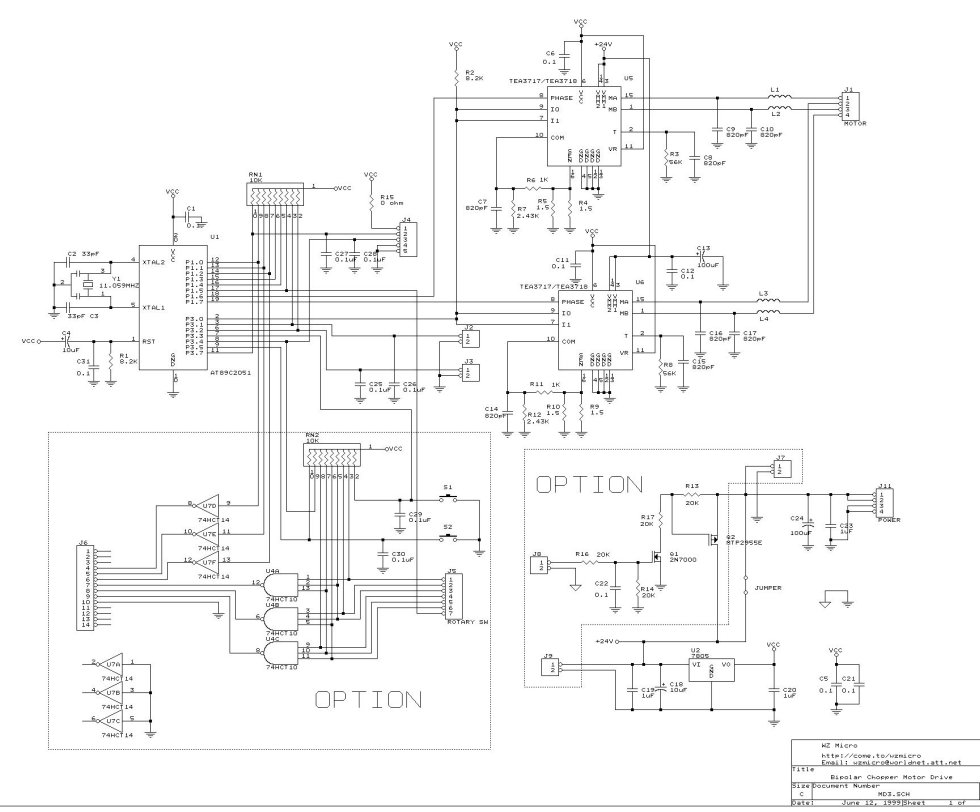

• MD3 Bipolar Chopper Motor Drive

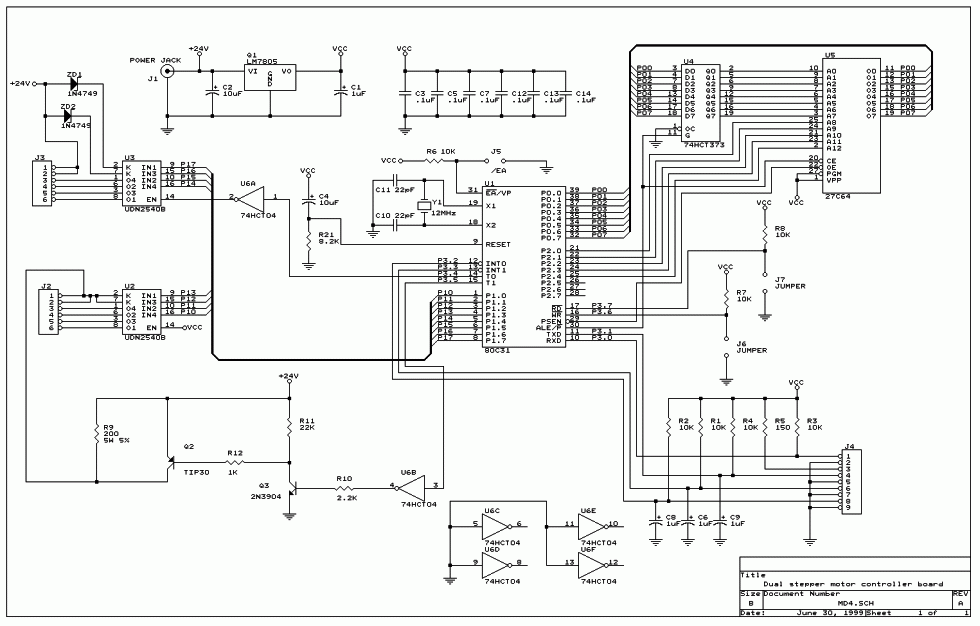

• MD4 Dual Stepper Controller Board

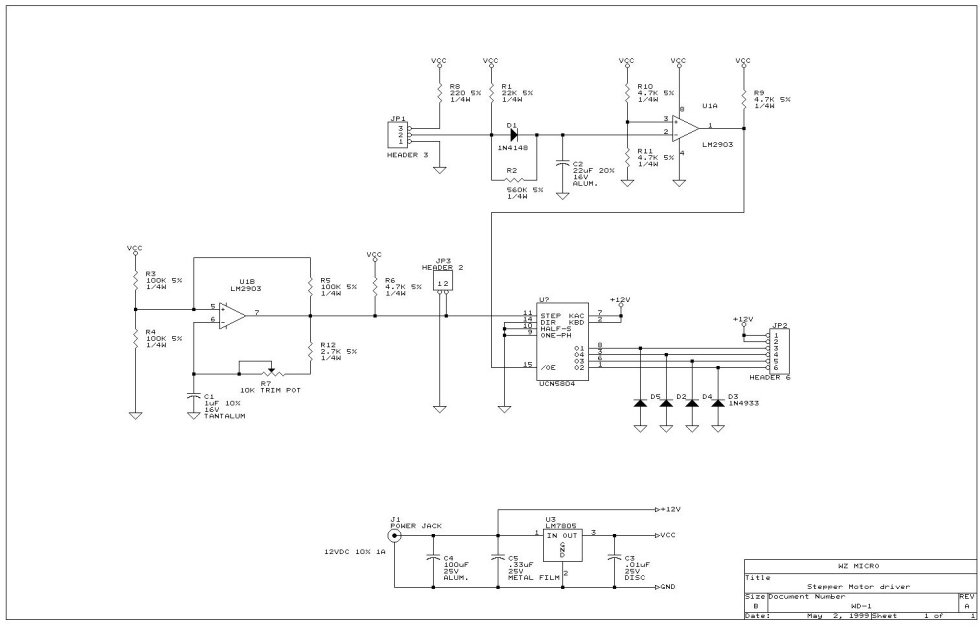

• WD-1 Stepper Controller

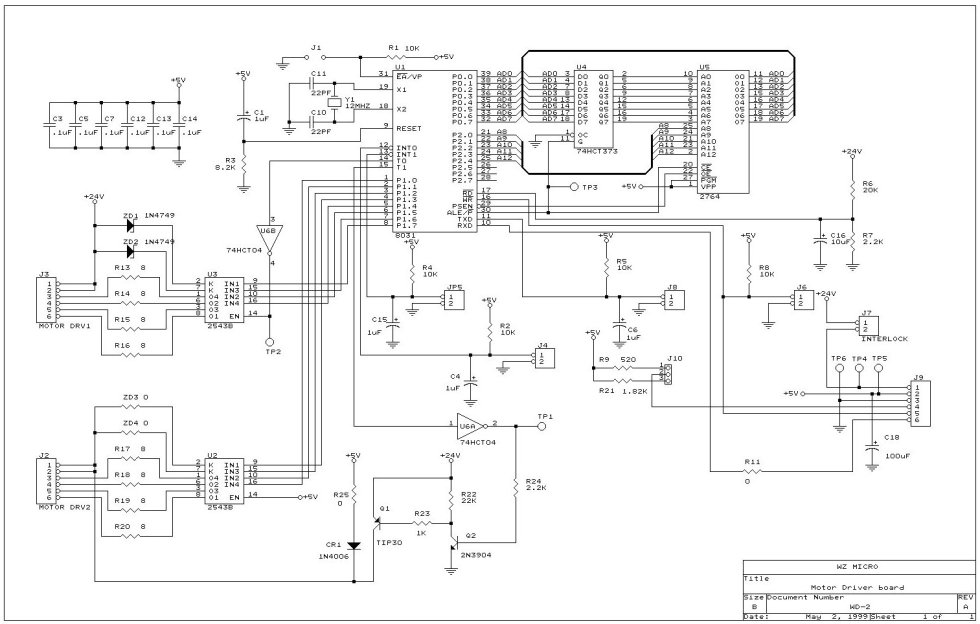

• WD-2 Stepper Controller
• MD4 Board Layout
• PWM DC Motor Controller with SG3525r
• WZ R03 RF Receiver

Stepper Driver Using UCN5804

Motor Driver Board with 8031 Larger Image

Bipolar Chopper Motor Drive

Dual Stepper Controller Board

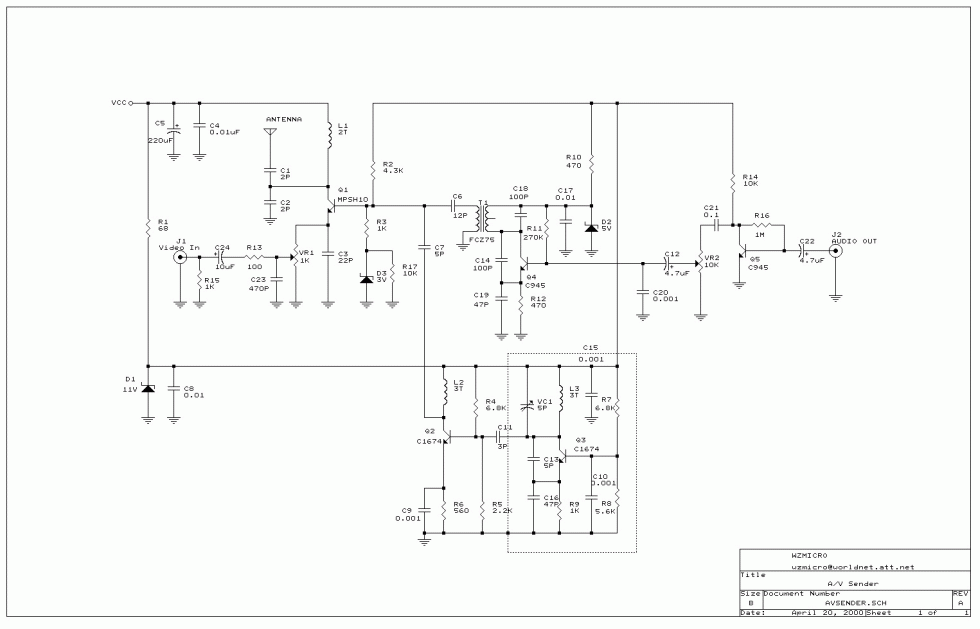

A/V Sender

Stepper Controller - L297/L298

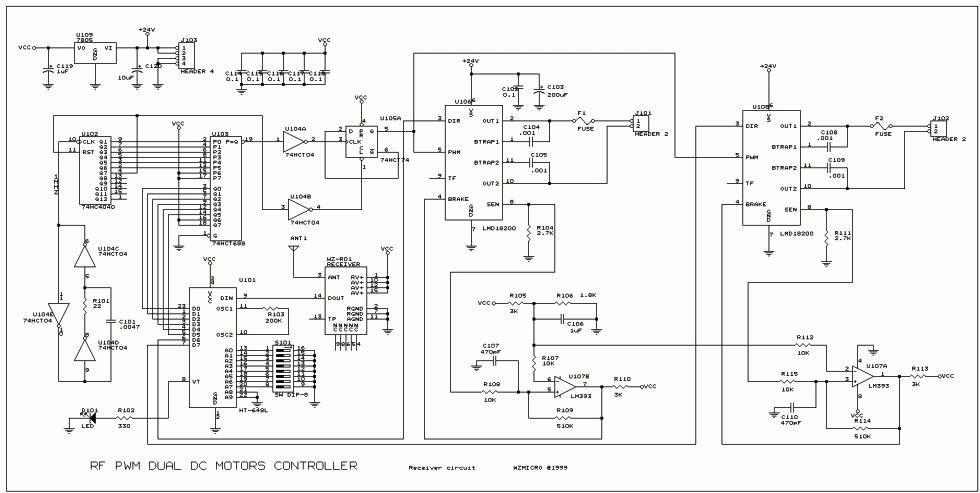

RF PWM Dual DC Motor Controller

RF Dual DC Motors Controller

WX-01 RF Transmitter

WZ R01 RF Receiver

MD1 Stepper Driver using UCN5804

MD2 Motor Driver Board with 8031

MD3 Bipolar Chopper Motor Drive

MD4 Dual Stepper Controller Board

WD-1 Stepper Controller

WD-2 Stepper Controller

MD4 Board Layout

PWM DC Motor Controller with SG3525

WZ R03 RF Receiver

---
